Overview Of System Components, Panoramic Sliding Sunroof - GF77.20-P-9991RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253
with code 413 (Automatic panoramic sliding sunroof)

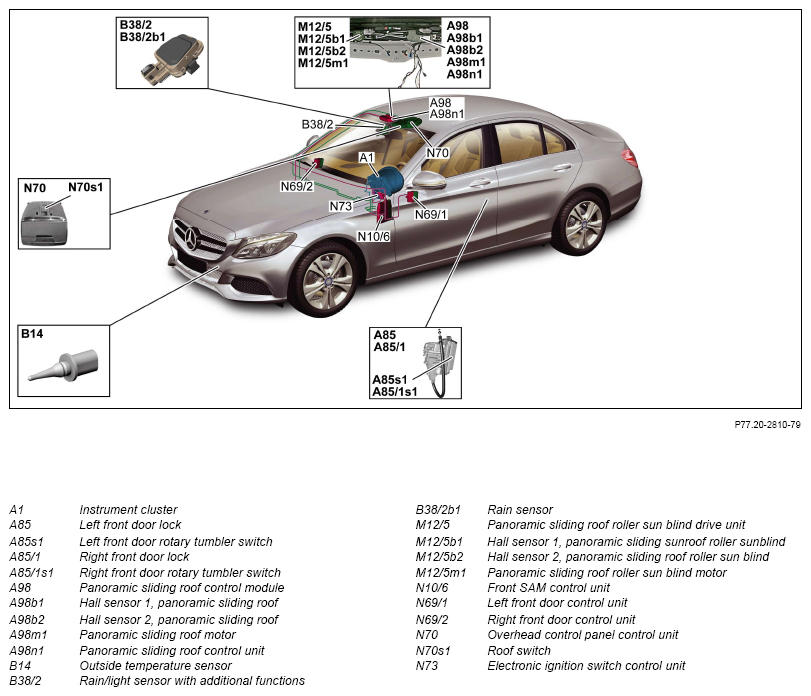

Figure shows model 205.0 up to model year 2019

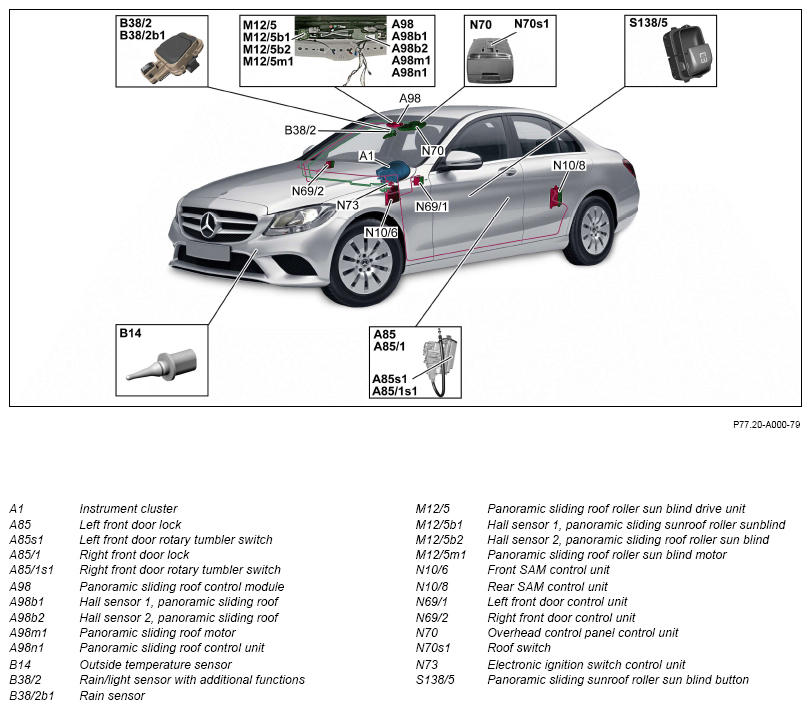

Shown on model 205.1 as of model year 2019 with code 830 (additional parts for China vehicles)
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Component description for panoramic sliding roof control module | A98, A98n1 | GF77.20-P-4106RF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 with code 413 (Automatic panoramic sliding sunroof) Model 253 (except 253.99) up to model year 2020 with code 413 (Automatic panoramic sliding sunroof) N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 with code 413 (Automatic panoramic sliding sunroof) Model 253.99 as of model year 2020 with code 413 (Automatic panoramic sliding sunroof) N73 |
GF80.57-P-6001RFM | ||
| Table of contents, function description for electric panoramic sliding sunroof | GF77.20-P-0997RF |
