Overview Of System Components For Electric Power Sliding Roof - GF77.20-P-9989RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253
with code 414 (Sliding sunroof)

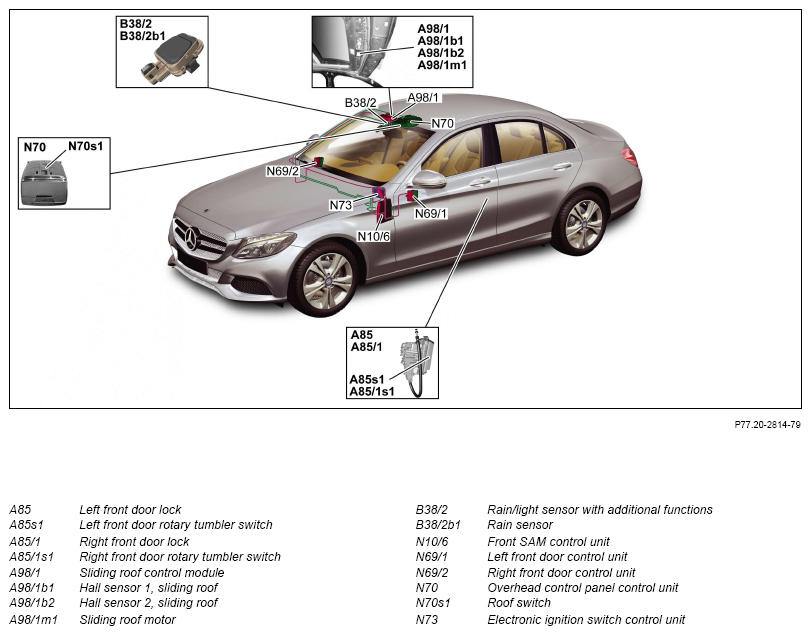

Shown: Model 205.0
| Component description for sliding roof control module | A98/1 | GF77.20-P-4108RF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 with code 414 (Sliding sunroof) Model 253 (except 253.99) up to model year 2020 with code 414 (Sliding sunroof) N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 with code 414 (Sliding sunroof) Model 253 (except 253.99) as of model year 2020 with code 414 (Sliding sunroof) N73 |
GF80.57-P-6001RFM | ||
| Table of contents for function description of electric power sliding roof | GF77.20-P-0991RF |
