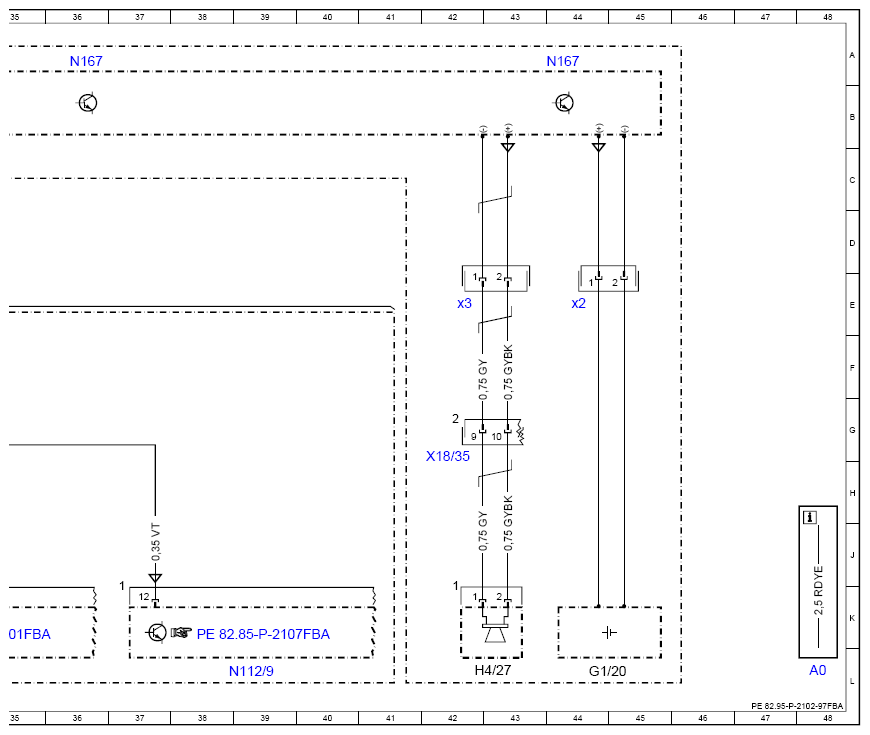

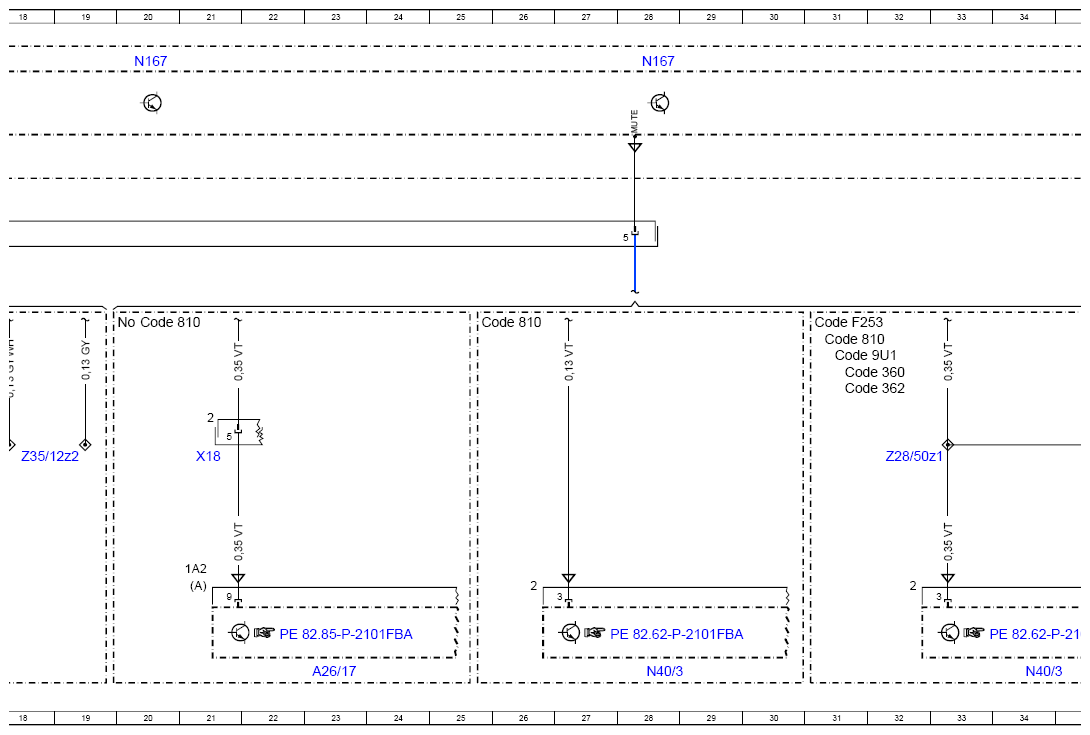

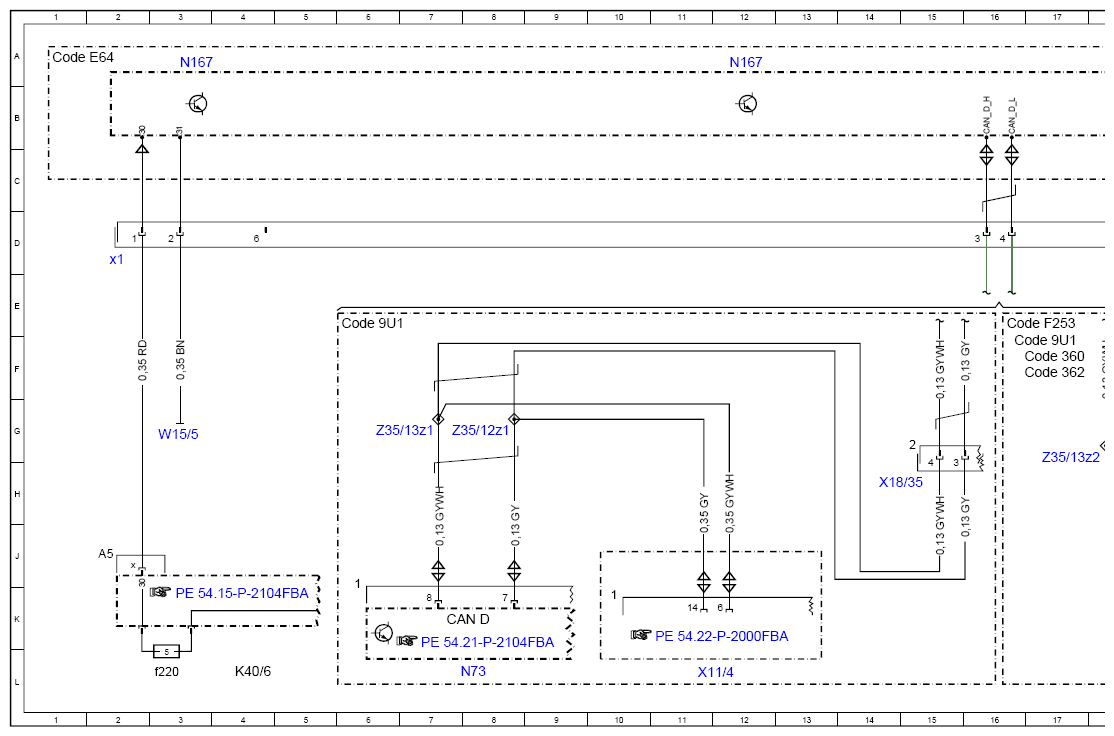

(Ecall Control Unit Wiring Diagram, Russia (GLONASS) - PE82.95-P-2102-97FBA)
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
with code 9U1 (ECALL RUSSIA preinstallation (GLONASS))
with code E64 (ECALL RUSSIA (GLONASS))
Control unit N167
Model 253 (except 253.99) up to model year 2020
with code 9U1 (ECALL RUSSIA preinstallation (GLONASS))
with code E64 (ECALL RUSSIA (GLONASS))
Control unit N167
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A26/17 | Head unit | 23L |
| CAN D | Diagnostic CAN | 7K |
| Code 360 | HERMES UMTS | 16F |
| Code 360 | HERMES UMTS | 31F |
| Code 362 | HERMES LTE | 16F |
| Code 362 | HERMES LTE | 31F |
| Code 810 | Sound system | 20E |
| Code 810 | Sound system | 25E |
| Code 810 | Sound system | 31F |
| Code 9U1 | ECALL RUSSIA (GLONASS) preinstallation | 6E |
| Code 9U1 | ECALL RUSSIA (GLONASS) preinstallation | 16F |
| Code 9U1 | ECALL RUSSIA (GLONASS) preinstallation | 31F |
| Code E64 | ECALL RUSSIA (GLONASS) | 1A |
| Code F253 | MODEL SERIES 253 | 16E |
| Code F253 | MODEL SERIES 253 | 31E |
| G1/20 | E-Call Russia (GLONASS) backup battery | 44L |
| H4/27 | Center instrument panel speaker | 43L |
| K40/6 | Driver-side fuse and relay module | 4L |
| K40/6f220 | Fuse 220 | 3L |
| N112/9 | HERMES control unit | 39L |
| N167 | E-Call Russia (GLONASS) control unit | 3A |
| N167 | E-Call Russia (GLONASS) control unit | 12A |
| N167 | E-Call Russia (GLONASS) control unit | 20A |
| N167 | E-Call Russia (GLONASS) control unit | 28A |
| N167 | E-Call Russia (GLONASS) control unit | 36A |
| N167 | E-Call Russia (GLONASS) control unit | 44A |
| N167x1 | E-Call Russia (GLONASS) control unit electrical connector 1 | 2D |
| N167x2 | E-Call Russia (GLONASS) control unit electrical connector 2 | 44E |
| N167x3 | E-Call Russia (GLONASS) control unit electrical connector 3 | 42E |
| N40/3 | Sound system amplifier control unit | 28L |
| N40/3 | Sound system amplifier control unit | 34L |
| N73 | Electronic ignition switch control unit | 8L |
| W15/5 | Left front footwell ground point | 3G |
| X11/4 | Diagnostic connector | 11L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 21G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 15H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 42H |
| Z28/50z1 | Mute connector sleeve | 32G |
| Z35/12z1 | Diagnostic CAN (CAN D) low connector sleeve | 8G |
| Z35/12z2 | Diagnostic CAN (CAN D) low connector sleeve | 18G |
| Z35/13z1 | Diagnostic CAN (CAN D) high connector sleeve | 7G |
| Z35/13z2 | Diagnostic CAN (CAN D) high connector sleeve | 17G |
