Align Windshield In Body Opening - AR67.10-P-1000-04G

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 156, 169, 170, 171, 172.4, 176, 205, 207, 209, 218, 230.4, 231, 242, 245.2, 246, 253

Model 212 except code Z04 (Light armoring)

Fig 1: Identifying Feeler Gauge (129 589 03 2100)

Courtesy of MERCEDES-BENZ USA

Model 212, 218

Courtesy of MERCEDES-BENZ USA

Model 207, 209, 231

Courtesy of MERCEDES-BENZ USA

Model 117, 156, 169, 170, 171, 172, 176, 205, 230, 242, 245, 246, 253

Courtesy of MERCEDES-BENZ USA

Place windshield (1) down on windshield rubber spacers on body flange.
Center windshield (1) in body opening.
Adjust gap dimension (A) with feeler gauge.

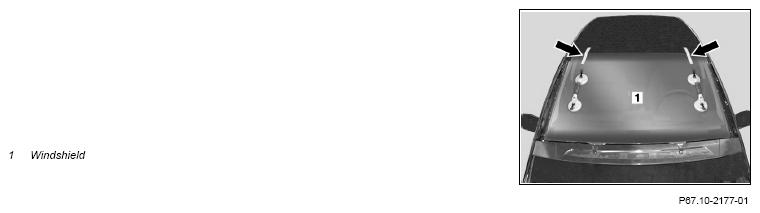

Glue on strips of adhesive tape (arrows).
Cut through adhesive strips (arrows) at top of windshield (1).
Remove windshield (1) from vehicle.
Shown on model 169.0

Courtesy of MERCEDES-BENZ USA
