Wiring Diagram For Sliding Roof Control Module - PE77.20-P-2103-97FBB
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

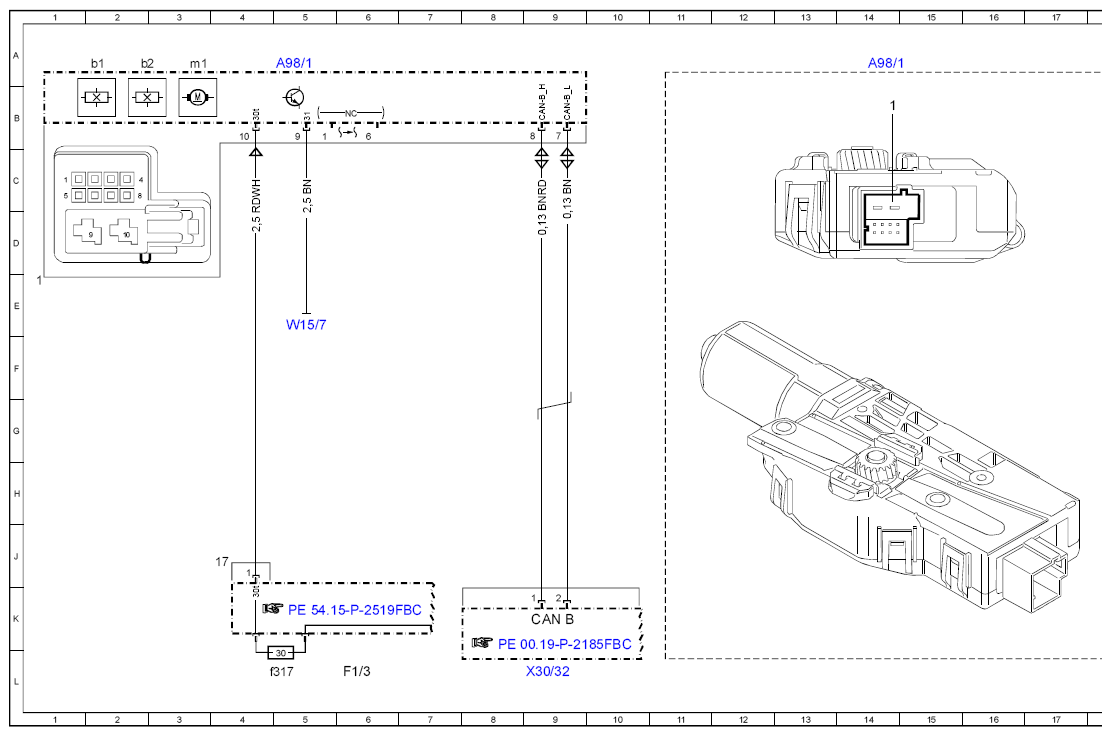

Model 205 as of model year 2019 with code 414 (Sliding sunroof) Control module A98/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |

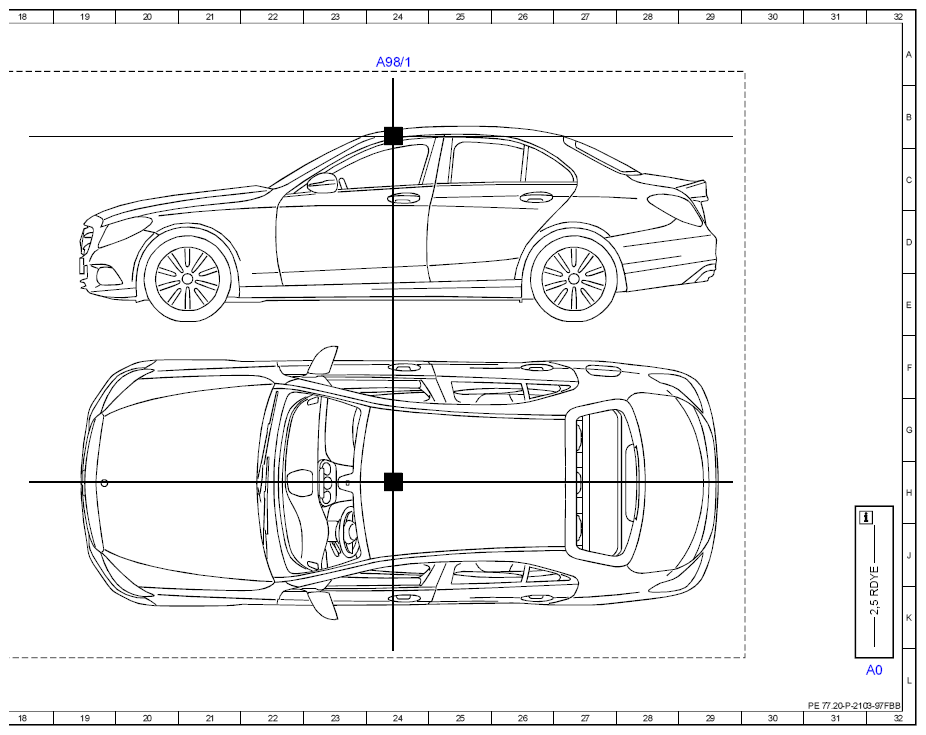

| A98/1 | Sliding roof control module | 5A |
| A98/1 | Sliding roof control module | 14A |
| A98/1 | Sliding roof control module | 24A |
| A98/1b1 | Hall sensor 1, sliding roof | 2A |
| A98/1b2 | Hall sensor 2, sliding roof | 2A |
| A98/1m1 | Sliding roof motor | 3A |
| CAN B | Interior CAN | 9K |
| F1/3 | Passenger-side A-pillar fuse box | 6L |
| F1/3f317 | Fuse 317 | 5L |
| W15/7 | Right front footwell ground point | 5E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 9L |
