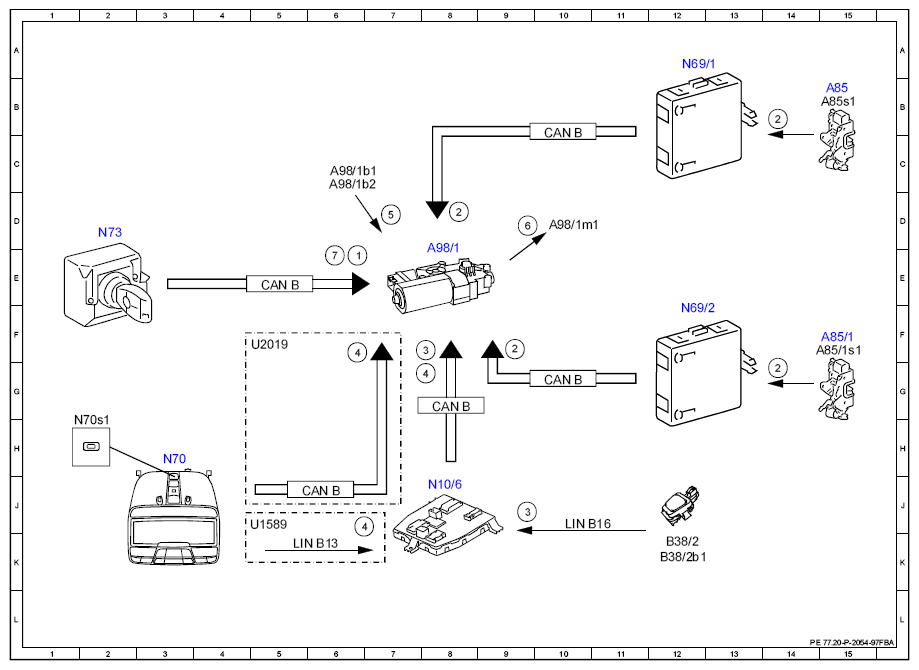

Electrical Function Schematic For Sliding Roof - PE77.20-P-2054-97FBA
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253 with code 414 (Sliding sunroof)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6E |
| 2 | Door rotary tumbler switch, status | 8D |
| 2 | Door rotary tumbler switch, status | 14G |
| 2 | Door rotary tumbler switch, status | 14B |
| 2 | Door rotary tumbler switch, status | 9F |
| 3 | Rain closing, request | 8F |
| 3 | Rain closing, request | 9K |
| 4 | Roof system switch, status | 6J |
| 4 | Roof system switch, status | 8G |
| 4 | Roof system switch, status | 6F |
| 5 | Hall sensors, signal | 7D |
| 6 | Sliding roof motor, actuation | 9D |
| 7 | Central locking, status | 6E |
| A85 | Left front door lock | 15B |
| A85/1 | Right front door lock | 15F |
| A85/1s1 | Right front door rotary tumbler switch | 15F |
| A85s1 | Left front door rotary tumbler switch | 15B |
| A98/1 | Sliding roof control module | 8E |
| A98/1b1 | Hall sensor 1, sliding roof | 6C |
| A98/1b2 | Hall sensor 2, sliding roof | 6C |
| A98/1m1 | Sliding roof motor | 10D |
| B38/2 | Rain/light sensor with additional functions | 12K |
| B38/2b1 | Rain sensor | 12K |
| CAN B | Interior CAN | 8G |
| CAN B | Interior CAN | 5E |
| CAN B | Interior CAN | 10C |
| CAN B | Interior CAN | 10G |
| CAN B | Interior CAN | 6J |
| LIN B13 | Roof LIN | 5K |
| LIN B16 | Rain and light sensor LIN | 10J |
| N10/6 | Front SAM control unit | 8J |
| N69/1 | Left front door control unit | 12A |
| N69/2 | Right front door control unit | 12F |
| N70 | Overhead control panel control unit | 3H |
| N70s1 | Roof switch | 2H |
| N73 | Electronic ignition switch control unit | 2D |
| U1589 | Valid up to model year 2019 | 4J |
| U2019 | Valid as of model year 2019 | 5F |
