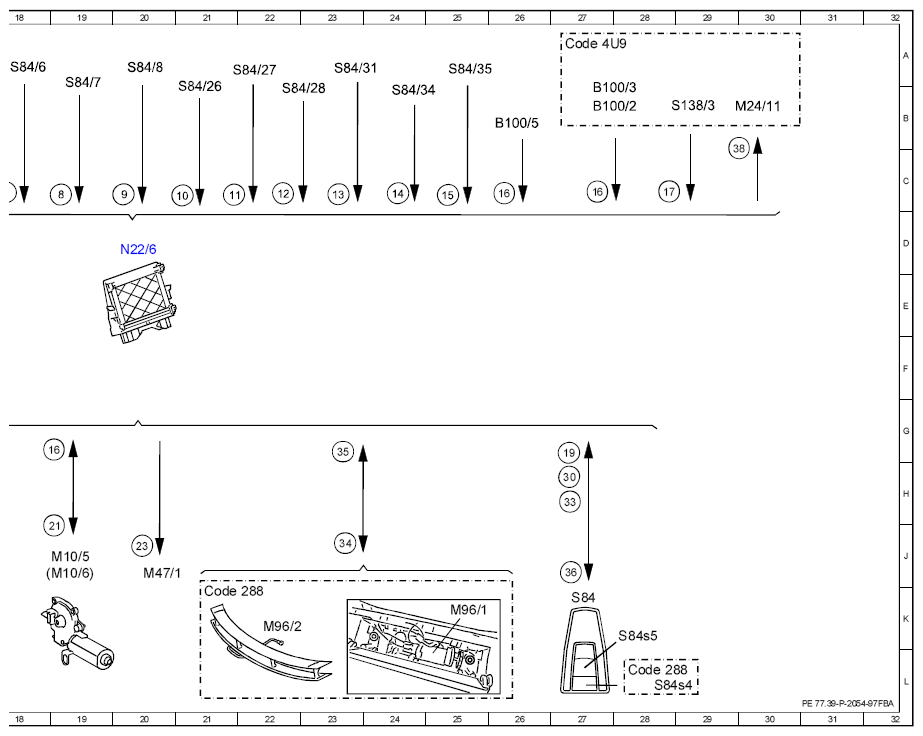

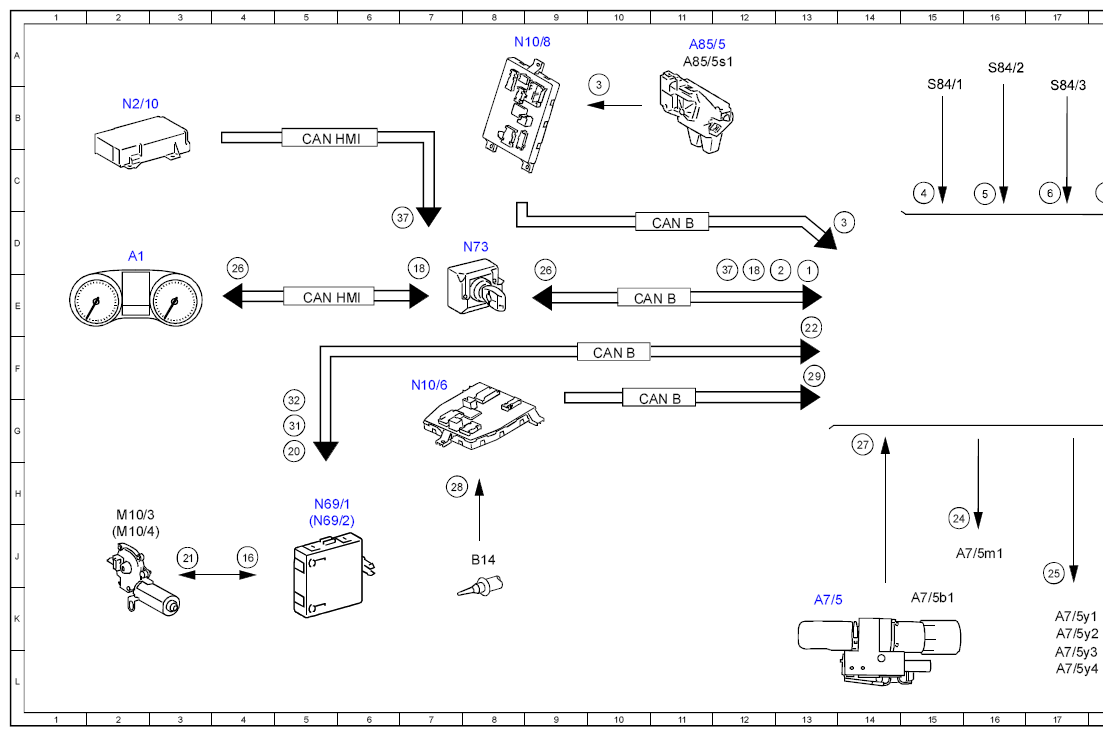

Electrical Function Schematic For Opening/Closing Soft Top With Switch - PE77.39-P-2054-97FBA
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13D |
| 10 | Left upper soft top compartment lid limit switch, status | 20C |
| 11 | Left soft top compartment lid locked limit switch, status | 22C |
| 12 | Right soft top compartment lid locked limit switch, status | 22C |
| 13 | Soft top "Closed" limit switch, status | 23C |
| 14 | Soft top lock "Open" limit switch, status | 24C |
| 15 | Soft top lock "Locked" limit switch, status | 25C |
| 16 | Hall sensor, signal | 19G |
| 16 | Hall sensor, signal | 27C |
| 16 | Hall sensor, signal | 26C |
| 16 | Hall sensor, signal | 28C |
| 17 | Trunk partition switch, status | 29C |
| 18 | Vehicle speed, signal | 12D |
| 18 | Vehicle speed, signal | 7D |
| 19 | Soft top control switch, status | 27G |
| 2 | Circuit 50, status | 13E |
| 20 | Move to short stroke position, request | 5G |
| 21 | Power window motor, actuation | 3J |
| 21 | Power window motor, actuation | 19H |
| 22 | At short stroke position, signal | 13E |
| 23 | Front soft top lock motor, actuation | 20J |
| 24 | Soft top control hydraulic unit electric motor, actuation | 16H |
| 25 | Solenoid valve, actuation | 17J |
| 26 | Soft top instrument cluster messages, request | 9D |
| 26 | Soft top instrument cluster messages, request | 4D |
| 27 | Soft top control hydraulic unit temperature sensor, signal | 14G |
| 28 | Outside temperature sensor, signal | 7H |
| 29 | Outside temperature, signal | 13F |
| 3 | Trunk lid/liftgate lock main catch switch, status | 13C |
| 3 | Trunk lid/liftgate lock main catch switch, status | 10B |
| 30 | Power window central operation switch, status | 27H |
| 31 | Convenience feature, status | 5G |
| 32 | Convenience feature direction, signal | 5G |
| 33 | Draft stop and wind deflector button, status | 27H |
| 34 | Actuator motors, actuation | 23J |
| 35 | Actuator motor limit switch, status | 23G |
| 36 | Draft stop and wind deflector button status LEDs, actuation | 27J |
| 37 | Roll bar, status | 7D |
| 37 | Roll bar, status | 12D |
| 38 | Trunk partition electric motor, actuation | 30B |
| 4 | Left soft top locked switch, status | 15C |
| 5 | Right soft top locked switch, status | 16C |
| 6 | Soft top "Open" limit switch, status | 17C |
| 7 | Left lower soft top bow "Locked" limit switch, status | 18C |
| 8 | Right lower soft top bow "Locked" limit switch, status | 19C |
| 9 | Upper soft top bow limit switch, status | 20C |
| A1 | Instrument cluster | 2D |
| A7/5 | Soft top control hydraulic unit | 13K |
| A7/5b1 | Convertible top control hydraulic unit temperature sensor | 15K |
| A7/5m1 | Convertible top control hydraulic unit electric motor | 16J |
| A7/5y1 | Solenoid valve 1 | 17K |
| A7/5y2 | Solenoid valve 2 | 17K |
| A7/5y3 | Solenoid valve 3 | 17L |
| A7/5y4 | Solenoid valve 4 | 17L |
| A85/5 | Trunk lid/liftgate lock | 11A |
| A85/5s1 | Trunk lid/liftgate lock main catch switch | 11A |
| B100/2 | Left trunk partition Hall sensor | 27B |
| B100/3 | Right trunk partition Hall sensor | 27B |
| B100/5 | Trunk partition Hall sensor closed | 26B |
| B14 | Outside temperature sensor | 8J |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 10E |
| CAN B | Interior CAN | 11D |
| CAN B | Interior CAN | 11G |
| CAN HMI | User interface CAN | 5E |
| CAN HMI | User interface CAN | 5B |
| Code 288 | AIRCAP | 28L |
| Code 288 | AIRCAP | 21K |
| Code 4U9 | Semiautomatic remaining luggage compartment partition | 27A |
| M10/3 | Left front power window motor | 2H |
| M10/4 | Right front power window motor | 2J |
| M10/5 | Left rear power window motor | 19J |
| M10/6 | Right rear power window motor | 19J |
| M24/11 | Trunk partition electric motor | 30B |
| M47/1 | Front soft top lock motor | 20J |
| M96/1 | Draft stop actuator motor | 25K |
| M96/2 | Wind deflector actuator motor | 22K |
| N10/6 | Front SAM control unit | 7F |
| N10/8 | Rear SAM control unit | 8A |
| N2/10 | Supplemental restraint system control unit | 2B |
| N22/6 | Rear control unit | 20D |
| N69/1 | Left front door control unit | 5H |
| N69/2 | Right front door control unit | 5J |
| N73 | Electronic ignition switch control unit | 8D |
| S138/3 | Trunk partition switch | 29B |
| S84 | Soft top control switch | 27K |
| S84/1 | Left "soft top locked" switch | 15B |
| S84/2 | Right "soft top locked" switch | 16A |
| S84/26 | Left soft top compartment lid up limit switch | 21B |
| S84/27 | Left soft top compartment lid locked limit switch | 22A |
| S84/28 | Right soft top compartment lid locked limit switch | 22B |
| S84/3 | Soft top "open" limit switch | 17B |
| S84/31 | Soft top closed limit switch | 23A |
| S84/34 | Soft top lock open limit switch | 24B |
| S84/35 | Soft top lock locked limit switch | 25A |
| S84/6 | Left soft top bow locked down limit switch | 18A |
| S84/7 | Right soft top bow locked down limit switch | 19B |
| S84/8 | Soft top bow up limit switch | 20A |
| S84s4 | Draft stop and wind deflector button | 28L |
| S84s5 | Power windows central operating switch | 28K |
