Remove/Install Limit Switch For Closed Trunk Separator - AR77.38-P-3696LWR
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4

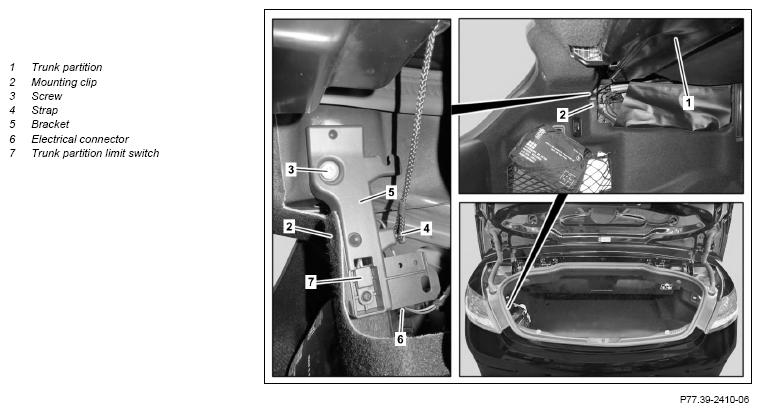

Shown on model 205.4
| Remove/install | |||
| 1 | Open trunk lid | ||
| 2 | Fold trunk partition (1) up | ||
| 3 | Remove retaining clip (2) | ||
| 4 | Unscrew screw/bolt (3) | ||
| 5 | Unhook strap (4) on bracket (5) | ||
| 6 | Disconnect electrical connector (6) | ||
| 7 | Remove the bracket (5) with trunk partition limit switch (7) | ||
| 8 | Install in the reverse order |
