Remove/Install Limit Switch For Closed Soft Top - AR77.39-P-3701LWR

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.4

Model 238.4

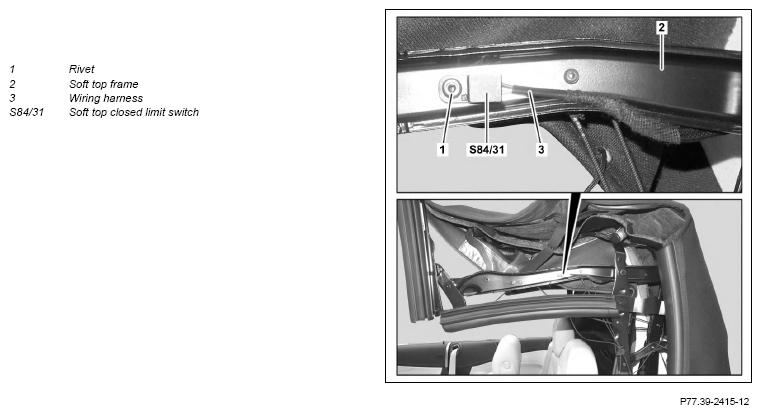

Fig 1: Limit Switch For Closed Soft Top Components Location - Model 205.4
G13023844WARNINGREMOVINGNOTESINSTALLINGCAUTIONREFER TO SPECIAL TOOLSSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLSPECIAL TOOLIMPORTANTCourtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
REMOVING Remove
1 Move soft top to repair position R3   AR77.30-P-1030LWR
2 Cover rear left fender
3 Knock rivet (1) off of soft top frame (2) and remove rivet residues
4 Cut wiring harness (3) at suitable point NOTES Cut wiring harness (3) so that the repair point is not stressed mechanically when opening and closing the soft top.
Otherwise the repair point can be damaged.
5 Remove soft top closed limit switch (S84/31)
INSTALLING Install
6 Shorten electrical lines of new soft top closed limit switch (S84/31) to corresponding length If necessary.
CAUTION Risk of injury  caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering. Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area. AS00.19-Z-0002-01A
7 Solder electrical lines of new soft top closed limit switch (S84/31) to wiring harness (3) and insulate
  Notes on soldering   AH00.19-P-1000-10A
  Notes on soft soldering   AH00.19-P-1000-07A
REFER TO SPECIAL TOOLS 000 588 00 84 00 Heat gun   WS54.00-P-0049B
      AR00.19-P-0100-09A
    SPECIAL TOOL New passenger car wiring harness repair kit Fig 2
    SPECIAL TOOL Wire stripper Fig 6
    SPECIAL TOOL Welding bead catcher Fig 3
    SPECIAL TOOL Wiring harness repair kit, basic Fig 5
    SPECIAL TOOL Reflector Fig 4
    SPECIAL TOOL Adapter Fig 7
8 Protect repair point with fabric tape after repairing line   AR00.19-P-0100-08A
9 Rivet soft top closed limit switch (S84/31) to soft top frame (2) IMPORTANT Pay attention to installation position.
10 Remove retainers for repair position on soft top mechanism
11 Remove cover from rear left fender
12 Completely close soft top
Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)
G07304827Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Welding Bead Catcher (129 589 01 98 00)
G07470431Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Reflector (220 589 01 99 41)
G07470444Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
G07304826Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Wire Stripper (220 589 01 99 40)
G07470390Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Adapter (220 589 01 99 42)
G07470445Courtesy of MERCEDES-BENZ USA
