Remove/Install Header Bow - AR77.33-P-1022LWR
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4

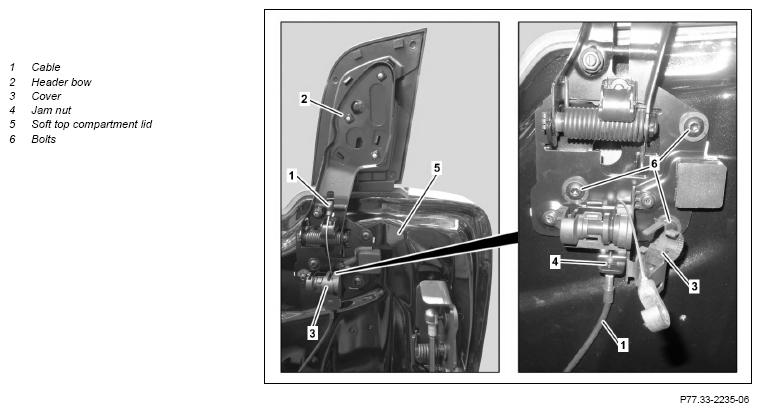

Shown on left side of vehicle
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove | |||
| 1 | Move soft top to repair position R4 | AR77.30-P-1030LWR | |
| 2 | Unhook cable (1) at top of header bow (2) | ||
| 3 | Unclip cover (3) and fold to side | ||
| 4 | Loosen jam nut (4 and guide out cable (1) downward | Do not change adjustment of cable (1). |
|
| 5 | Mark installation position of header bow (2) on soft top compartment lid (5) | ||
| 6 | Unscrew bolts (6) and remove header bow (2) | ||
| Install | |||
| 7 | Position header bow (2) on soft top compartment lid (5) and tighten bolts (6) | *BA77.33-P-1003-03A | |
| BA77.33-P-1003-03B | |||
| 8 | Guide in cable (1) from bottom ad tighten jam nut (4) | Do not change adjustment of cable (1). |
|
| 9 | Hook in cable (1) at top of header bow (2) | ||
| 10 | Clip in cover (3) | ||
| 11 | Completely open soft top | ||
| 12 | Check adjustment of header bow (2), adjust | AR77.33-P-1023LWR |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.33-P-1003-03A | Screw/bolt, header bow hinge to soft top compartment lid | Nm | 10 |
SOFT TOP COMPARTMENT LID
| Number | Designation | Model 238.4 | |
|---|---|---|---|
| BA77.33-P-1003-03B | Screw/bolt, header bow hinge to soft top compartment lid | Nm | 10 |
