Remove/Install Front Soft Top Lock - AR77.33-P-1012LWR
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Remove | |||
| 1 | Remove paneling from soft top at front | AR68.30-P-4320LWR | |

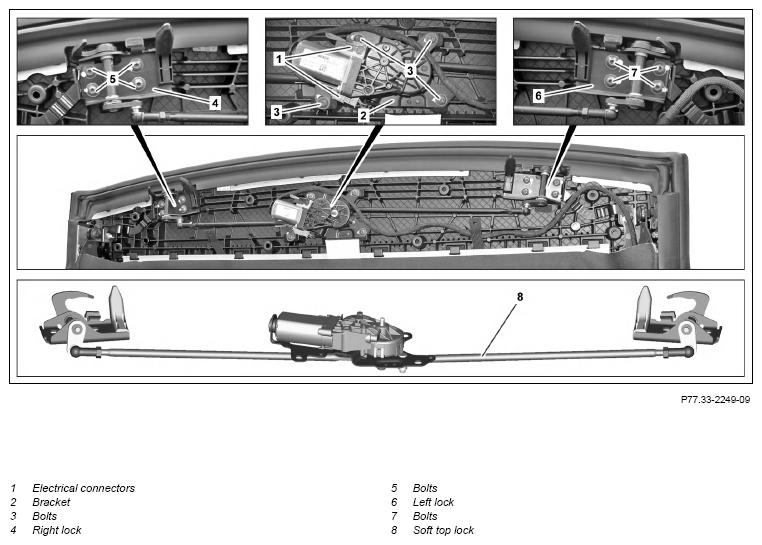

| 2 | Disconnect electrical connectors (1) and expose wiring harness on bracket (2) | ||
| 3 | Mark installation position of bolts (3) on bracket (2) and unscrew bolts (3) | ||
| 4 | Mark installation position of bolts (5) on right lock (4) and unscrew bolts (5) | ||
| 5 | Mark installation position of bolts (7) on left lock (6) and unscrew bolts (7) | ||
| 6 | Completely remove soft top lock (8) | ||
| Install | |||
| 7 | Position soft top lock (8) on soft top | ||
| 8 | Tighten bolts (7) on left lock (6) | ||
| 9 | Tighten bolts (5) on right lock (4) | ||
| 10 | Tighten screws/bolts (3) at bracket (2) | ||
| 11 | Connect electrical connectors (1) and fasten wiring harness to bracket (2) | ||
| 12 | Completely close soft top and check whether right lock (4) and left lock (6) is centered in the mounts of the roof frame and lock | In the case of complaints. ↓ Readjust right lock (4) or left lock (6). |
|
| 13 | Move soft top to repair position R4 | AR77.30-P-1030LWR | |
| 14 | Install cover on front of soft top | AR68.30-P-4320LWR |
