Prepare Panoramic Roof Frame For Installation - AR77.21-P-0800-02LF
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 with code 413 (Automatic panoramic sliding sunroof)
Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)
Model 222 with code 413 (Automatic panoramic sliding sunroof)
Model 253 with code 413 (Automatic panoramic sliding sunroof)
| Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A |
MODIFICATION NOTES
| 23.04.2018 | Notes on removal/installation of bonded elements of the panoramic roof added. |
- Check panorama roof frame (1) and all detachable parts for damage.
If there is a problem,
↓
Replace corresponding component.
- Attach suction lifters to the outside of the panorama roof frame (1) and lay panorama roof frame (1) down on a suitable base with the inside pointing upward.
- Apply cleaner with one part of the paper towel on the bonding surfaces (2) of the panorama roof frame (1) and wipe off with the other part of the paper towel.

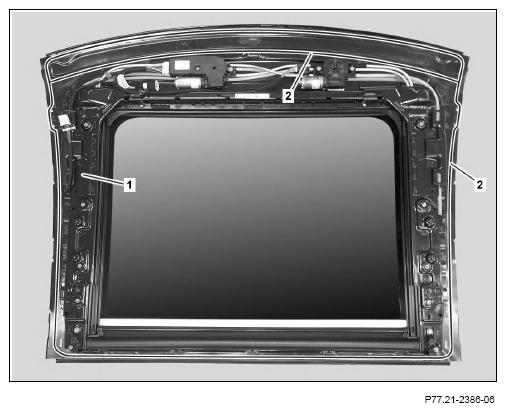

Shown on model 222 on the front panorama roof frames (1)
