Check/Correct Fluid Level Of Hydraulic Unit - AR77.37-P-3501LCA
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 217.4
Model 238.4
Shown on model 217.4
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Check | |||
| 1 | Ope soft top with switch and close | ||
| 2 | Expose hydraulic unit (1) | Model 217.4 | AR77.37-P-1000LCA |
| Model 205.4 | AR77.37-P-1000LWR | ||
| Model 238.4 |
AR77.37-P-1000LWP | ||
| 3 | Position hydraulic unit (1) horizontally to installation position | ||

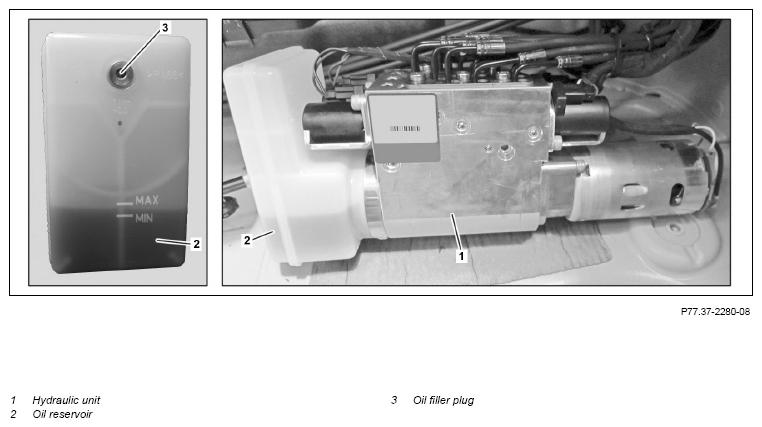

| 4 | Check oil level in oil reservoir (2) on hydraulic unit (1) | ||
| 5 | Unscrew oil filler screw (3) from oil reservoir (2) | If oil level is not correct. | |
| 6 | Add hydraulic oil up slightly below "MAX" marking | If oil level is not correct. | |
| Hydraulic fluids (Specification 343.0) | BB00.40-P-0343-00A | ||
| 7 | Tighten oil filler screw (3) on oil reservoir (2). | If oil level is not correct. |
BA77.37-P-1003-01C |
| *BA77.37-P-1003-01D | |||
| BA77.37-P-1003-01E | |||
| 8 | Install hydraulic unit (1) | Model 217.4 | AR77.37-P-1000LCA |
| Model 205.4 | AR77.37-P-1000LWR | ||
| Model 238.4 | AR77.37-P-1000LWP |
SOFT TOP HYDRAULIC SYSTEM
| Number | Designation | Model 217.4 | |
|---|---|---|---|
| BA77.37-P-1003-01C | Oil filler screw to hydraulic unit reservoir | Nm | 1 |
SOFT TOP HYDRAULIC SYSTEM
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.37-P-1003-01D | Oil filler screw to hydraulic unit reservoir | Nm | 1 |
SOFT TOP HYDRAULIC SYSTEM
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA77.37-P-1003-01E | Oil filler screw to hydraulic unit reservoir | Nm | 1 |
