Modify Side Paneling In Rear For Draft Stop - AN77.25-P-2199-01LWR
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Modification shown on right side paneling. Modification on left side paneling analogously.

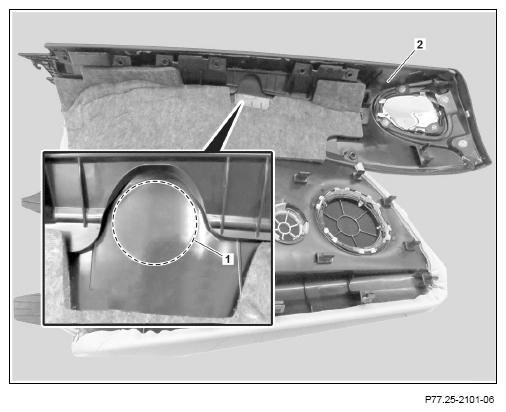

- Measure center point on present marking (1) on side paneling (2) and mark.
- Drill through marked center point.
Use commercially available drill bit Ø 5 mm.
- Drill hole in side paneling (2) from inside to approx. 35 mm.

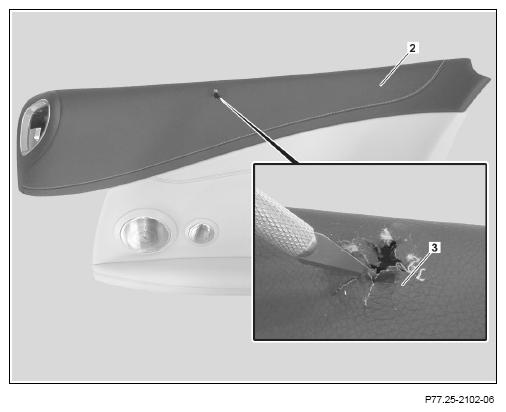

- Cut in extending cover (3) of side paneling (2) several times.
