Roof Roller Sunblind Drive Unit, Basic Function - GF77.20-P-2015A
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model all (CAR)
with code 413 (Panoramic sliding sunroof/glass roof)
Location

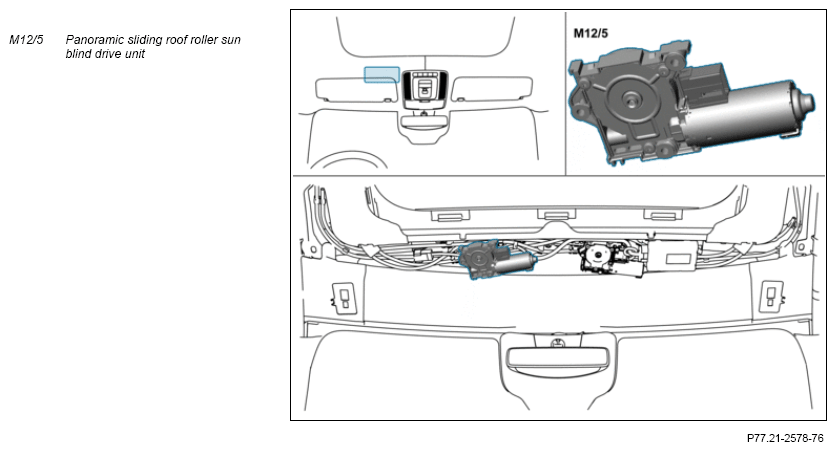

The panoramic sliding sunroof roller sunblind drive unit is located on the front roof frame.
Task
The panoramic sliding sunroof roller sunblind drive unit opens and closes the roller sunblind of the panoramic sliding sunroof.
The panoramic sliding sunroof control unit actuates the panoramic sliding sunroof roller sunblind drive unit.
Structure
The following component parts are integrated in the panoramic sliding sunroof roller sunblind drive unit:
- 2 Hall sensors (position and speed detection)
- Roller sunblind motor (drive of reversing gear)
- Redirecting transmission (conversion of the rotary movement into linear movement of the drive spindle)
