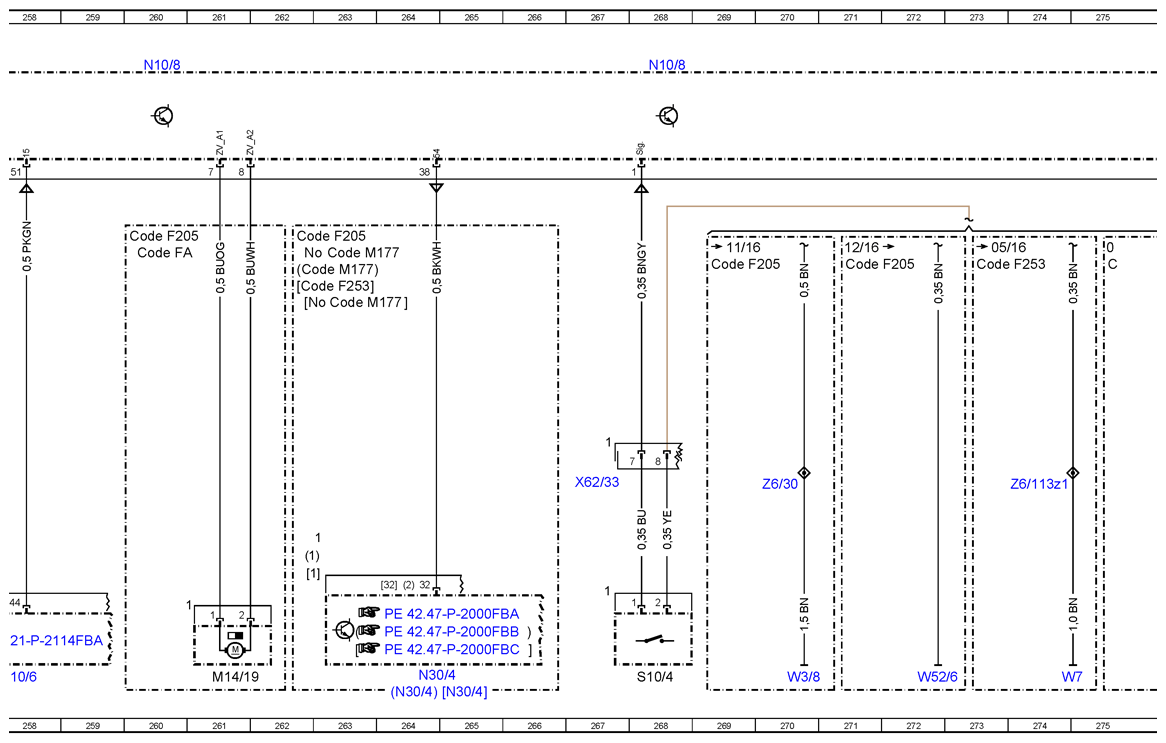

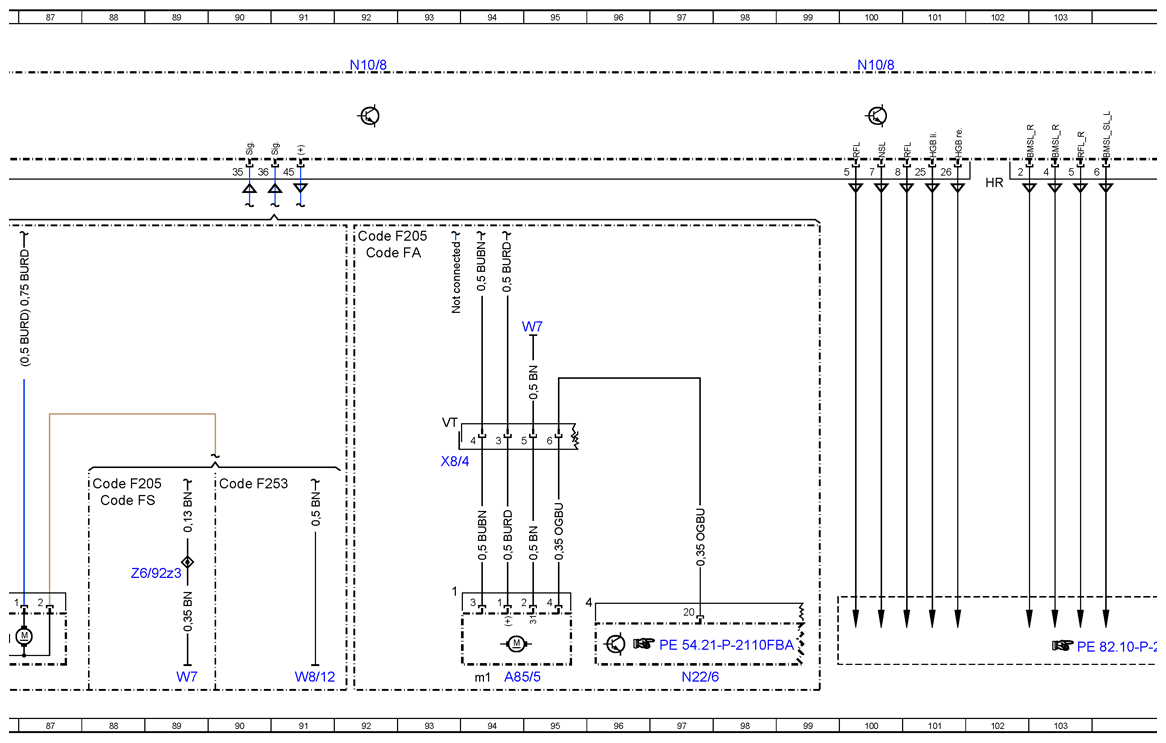

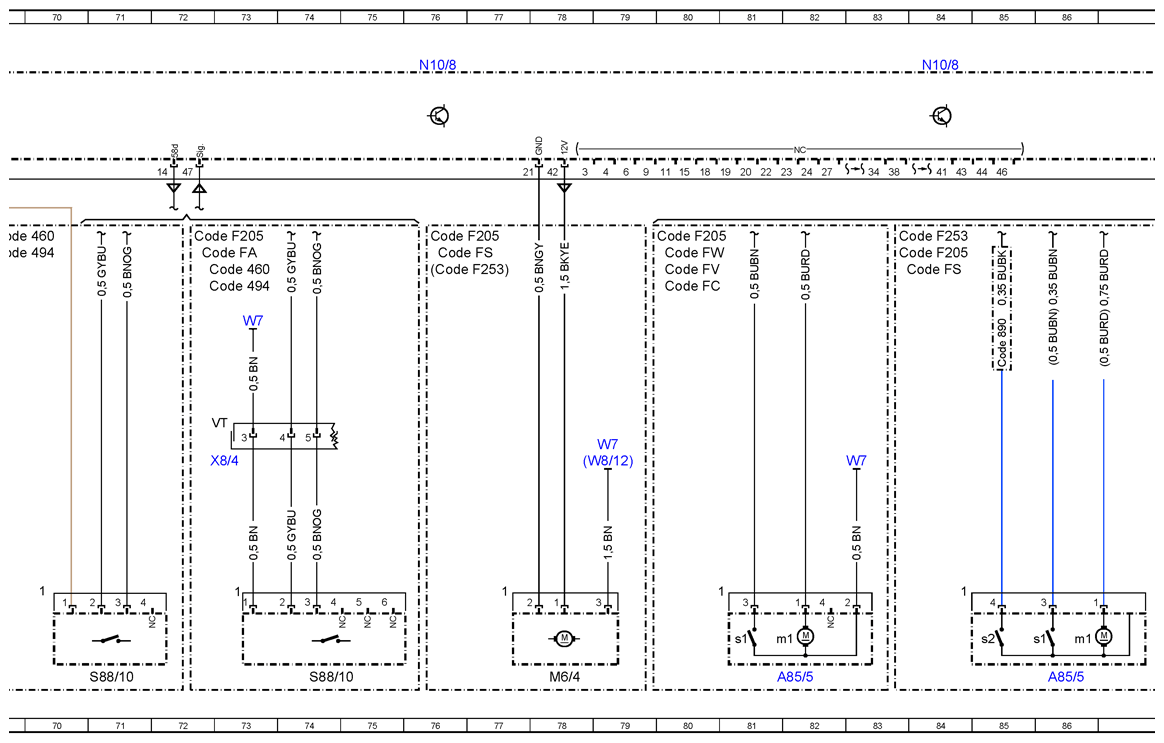

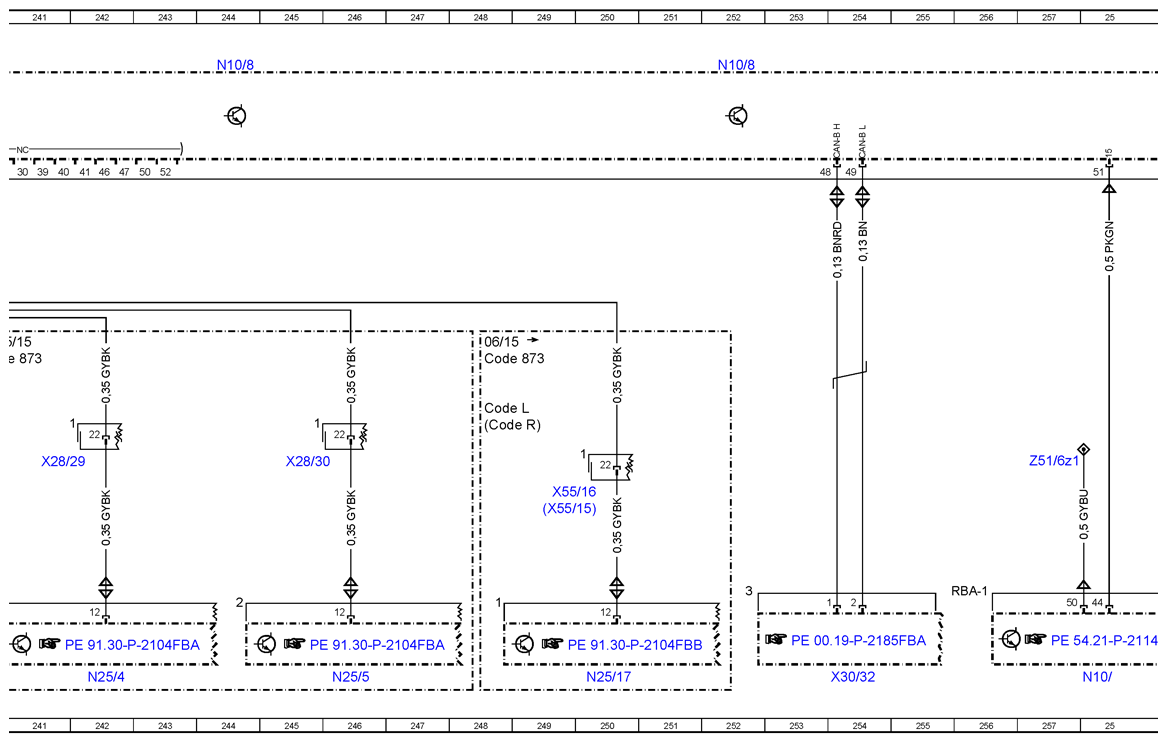

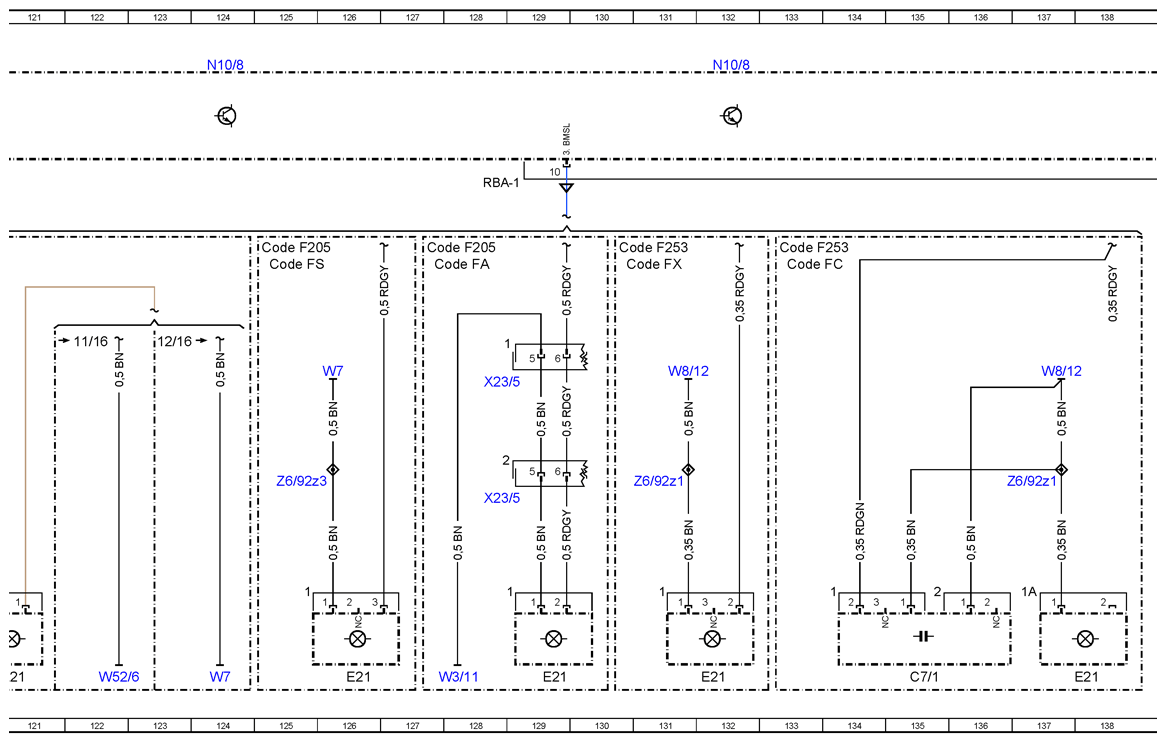

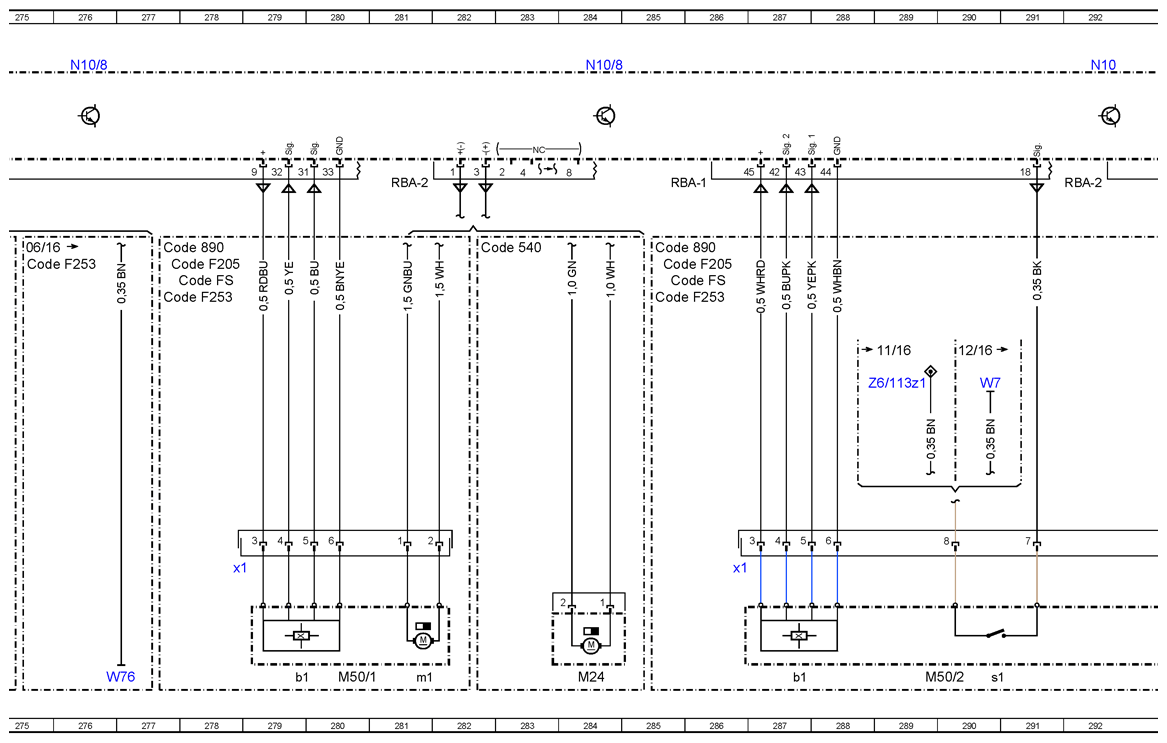

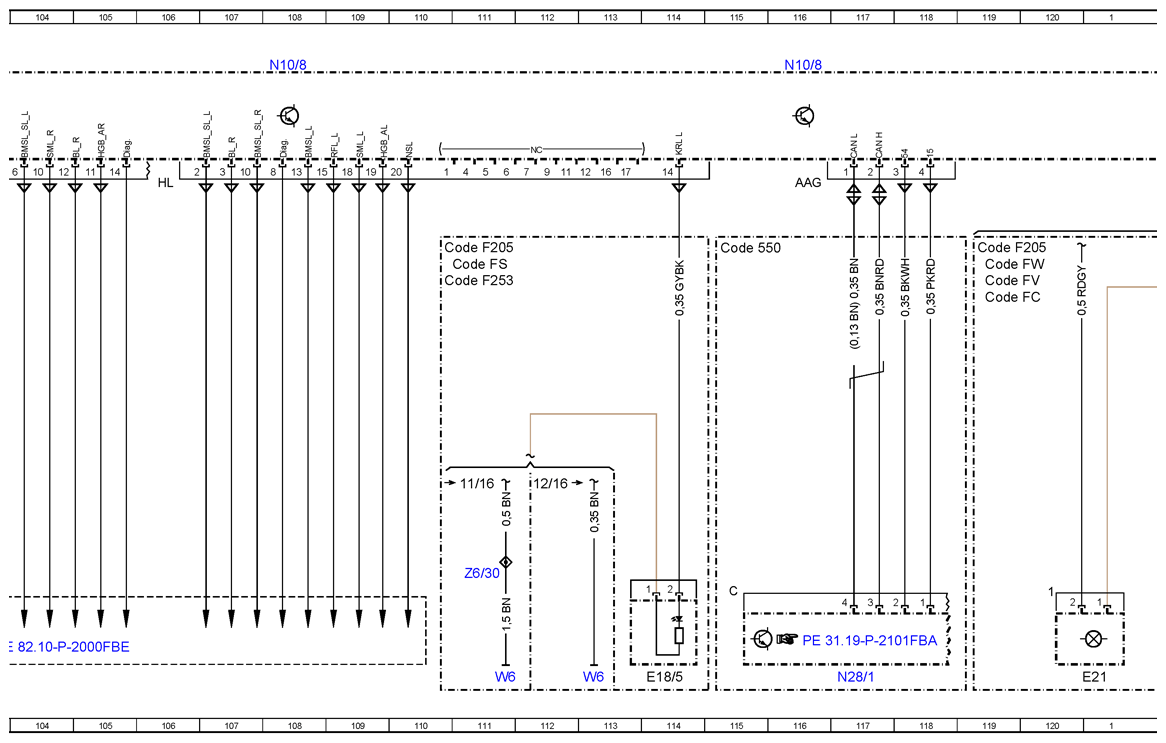

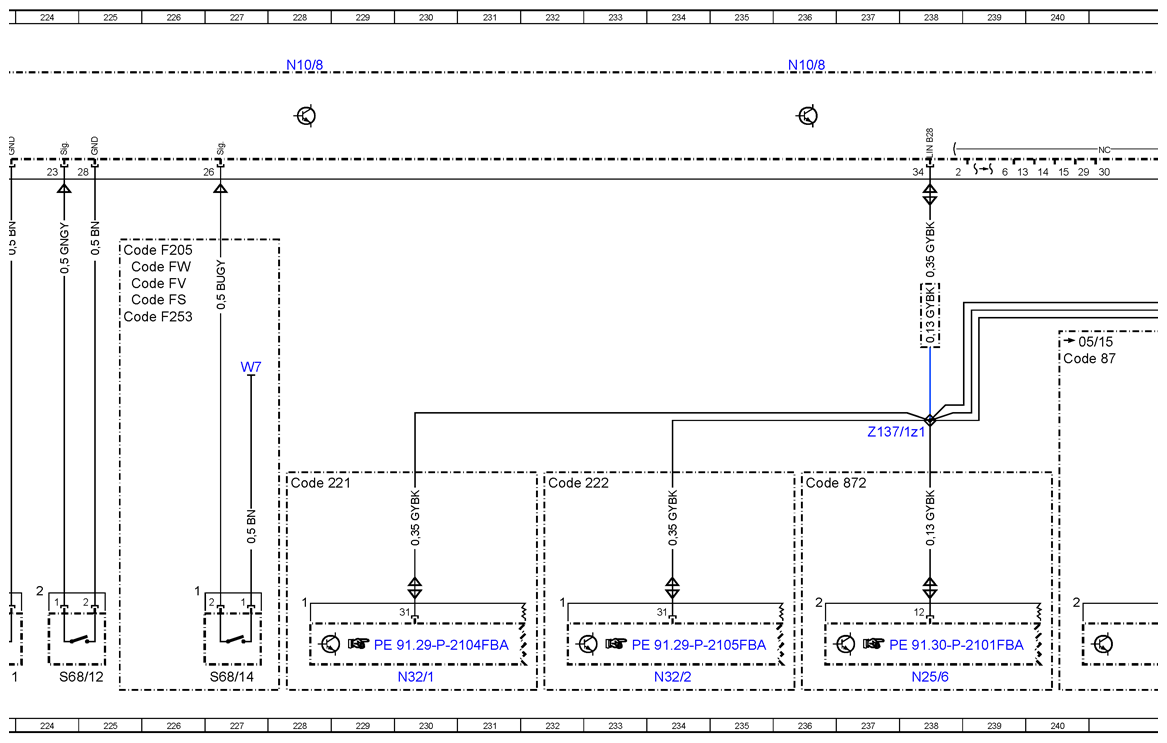

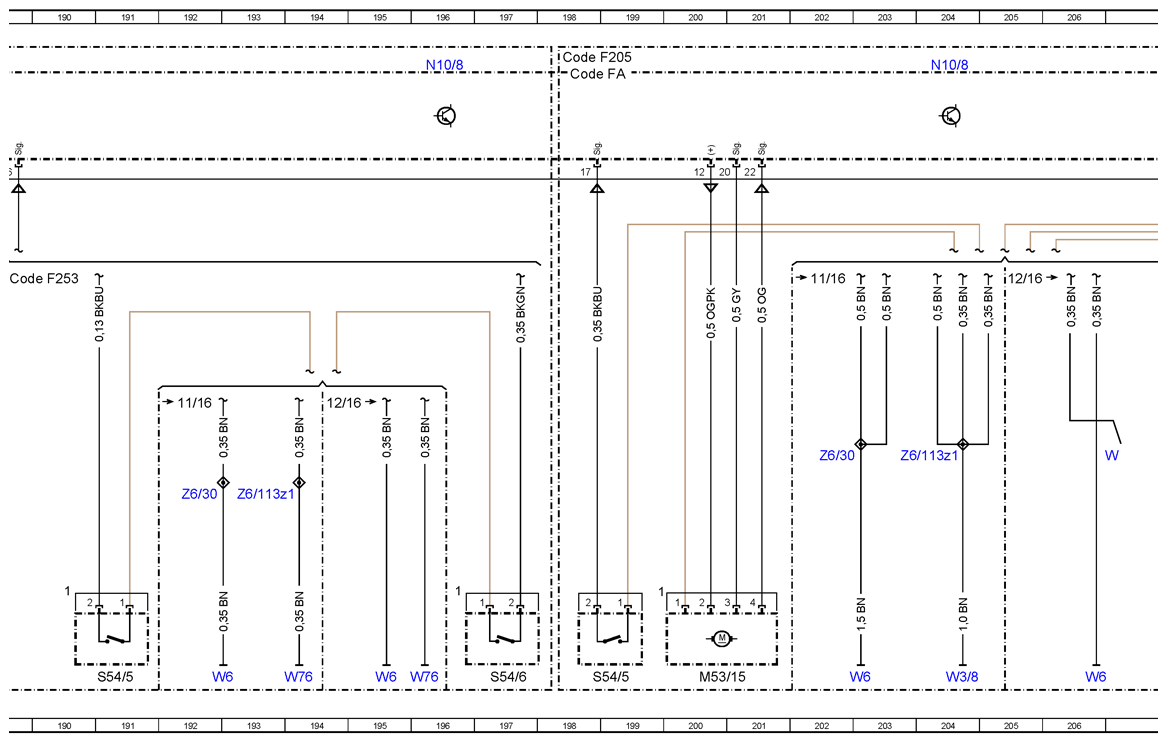

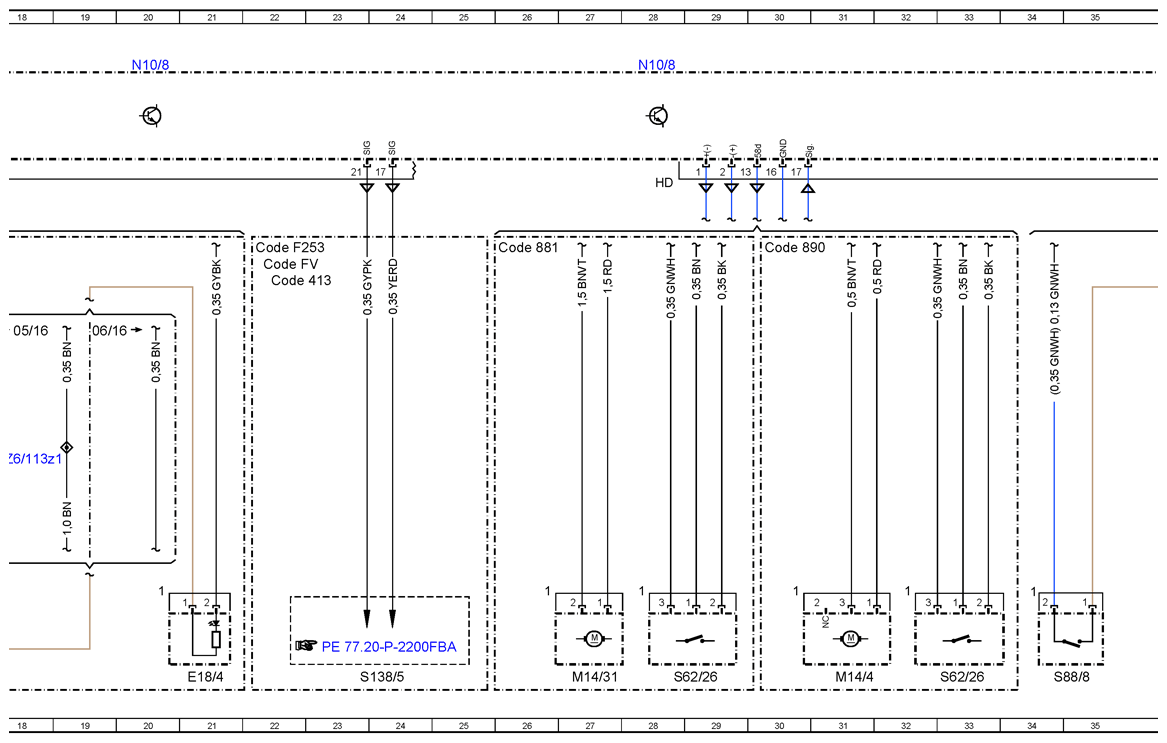

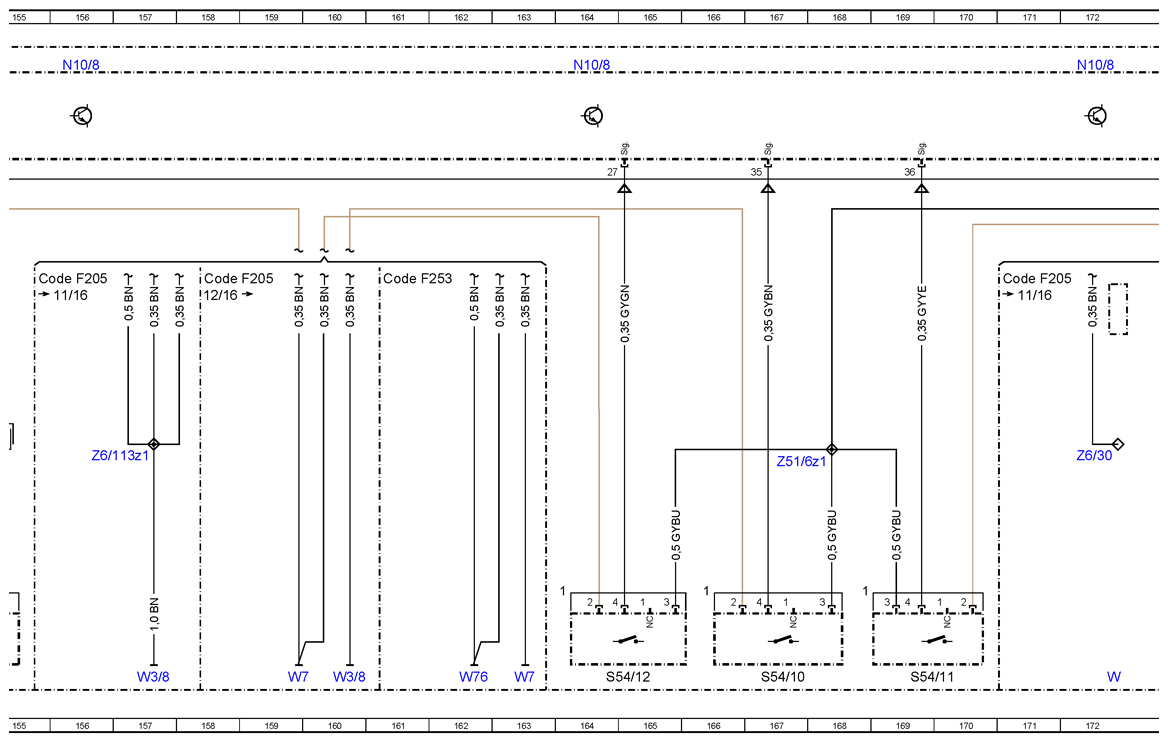

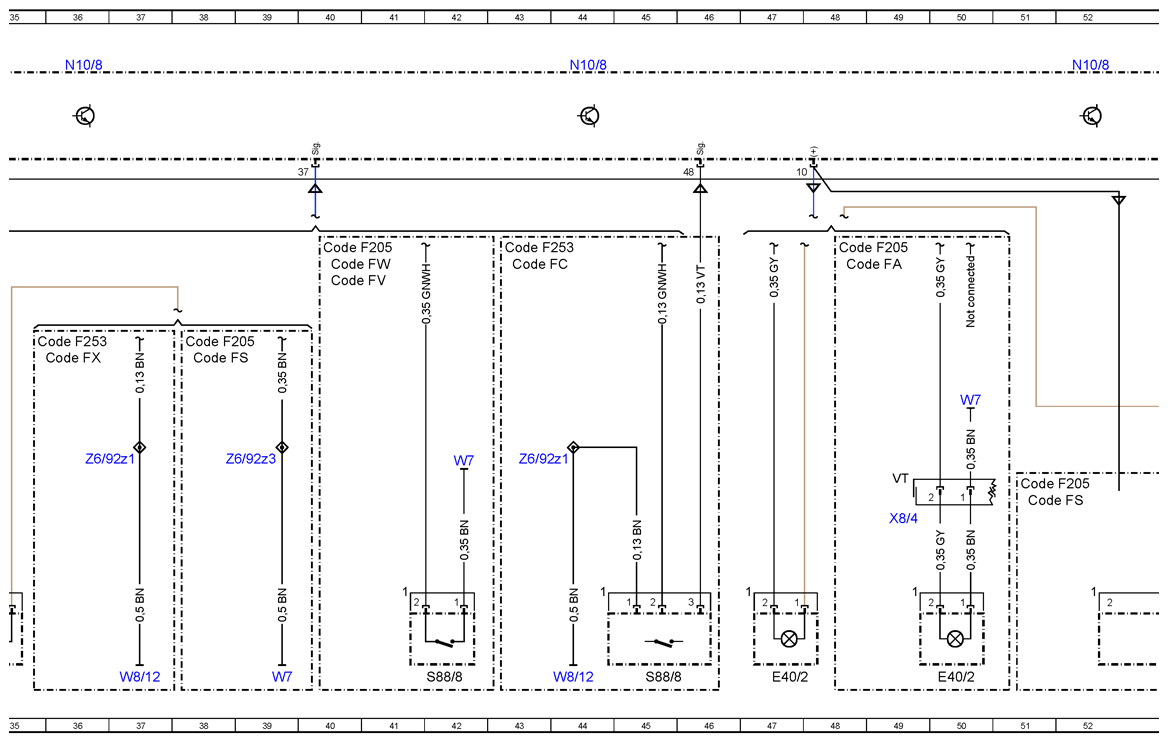

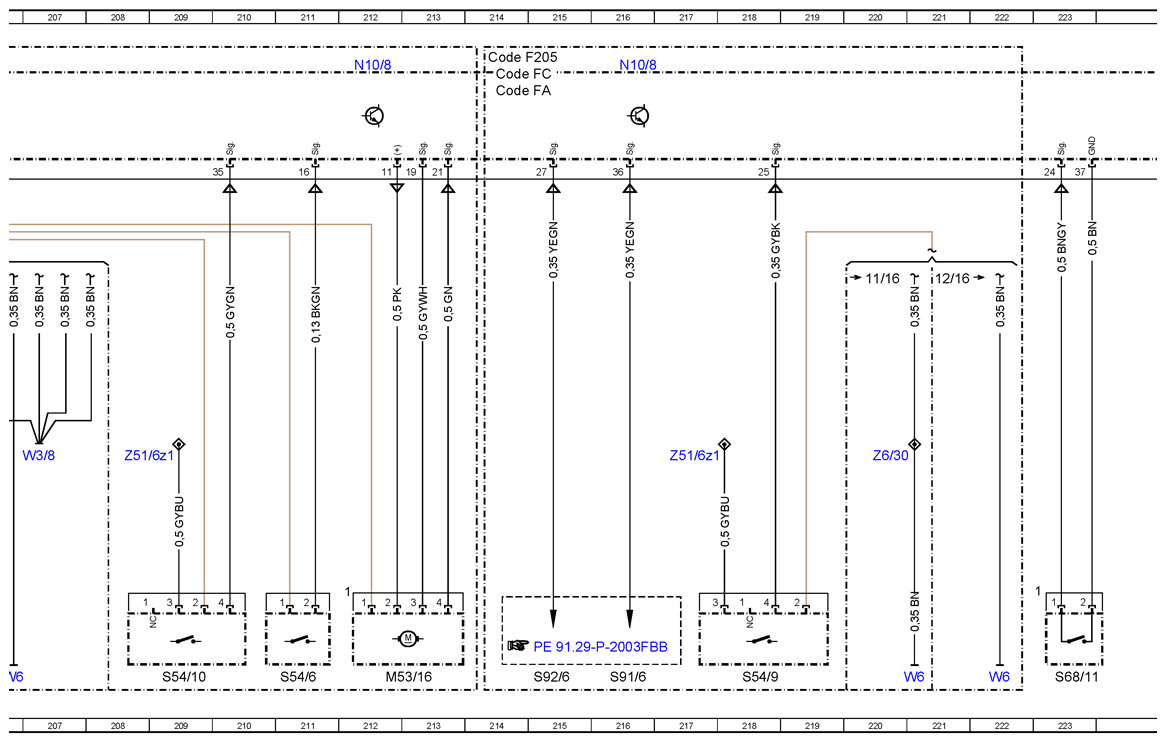

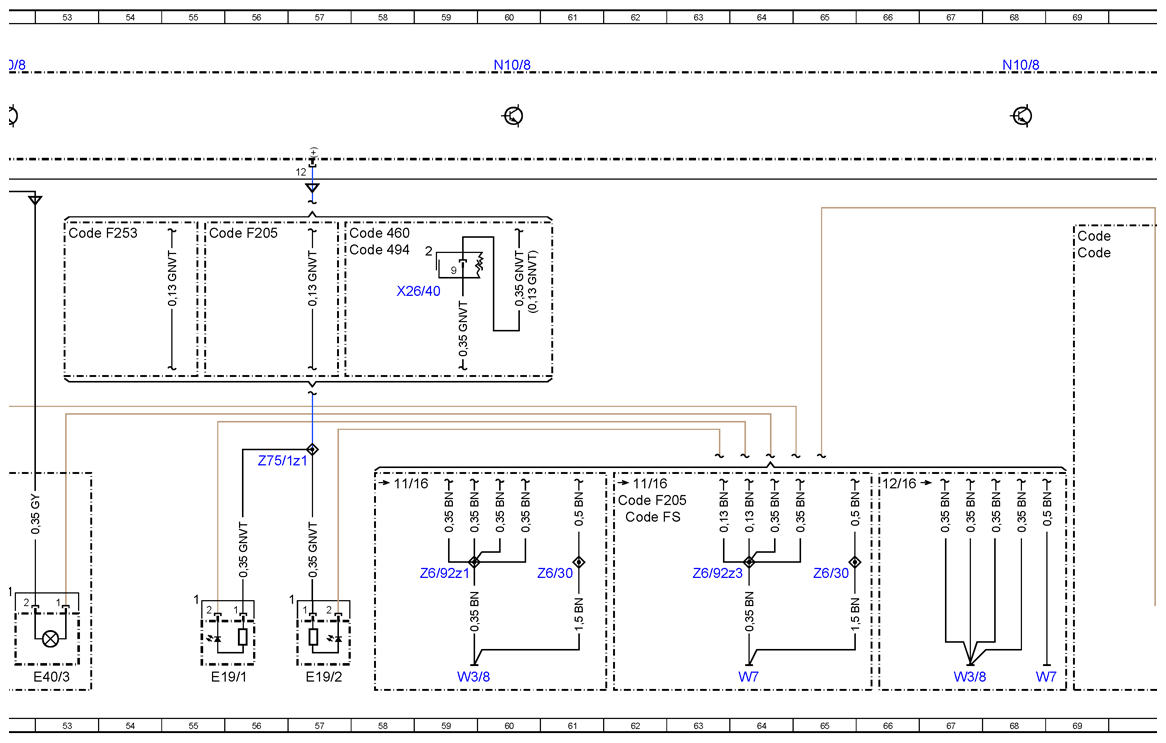

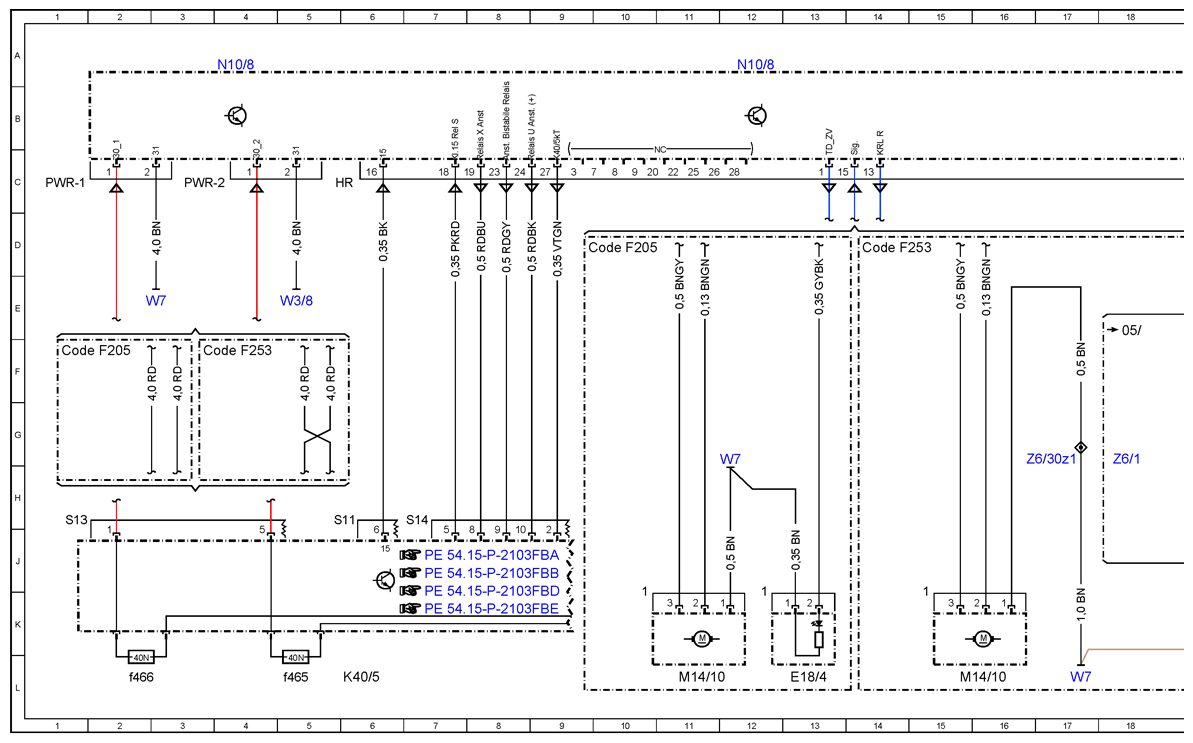

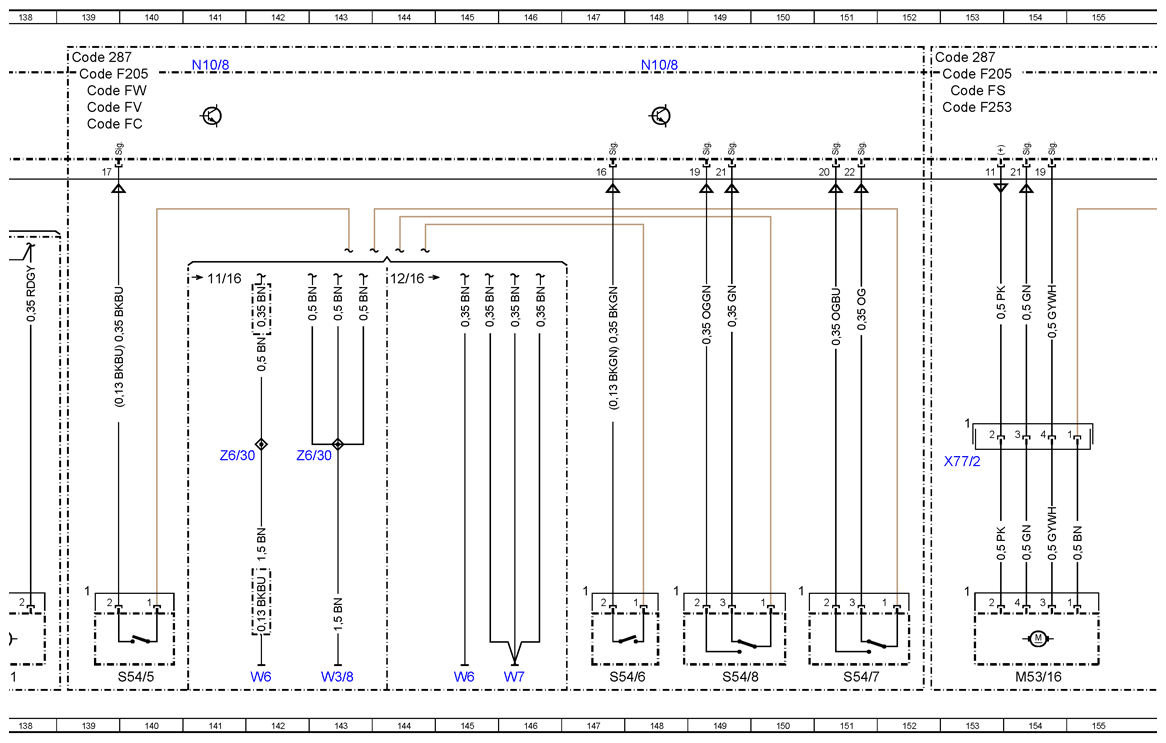

Wiring Diagram Of Rear Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2103-97FBA
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 Control unit N10/8 Model 253 (except 253.99) up to model year 2020 Control unit N10/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 299L |
| A85/5 | Trunk lid/liftgate lock | 94L |
| A85/5 | Trunk lid/liftgate lock | 86L |
| A85/5 | Trunk lid/liftgate lock | 82L |
| A85/5m1 | Trunk lid/liftgate lock motor | 94L |
| A85/5m1 | Trunk lid/liftgate lock motor | 86K |
| A85/5m1 | Trunk lid/liftgate lock motor | 81K |
| A85/5s1 | Trunk lid/liftgate lock main catch switch | 86K |
| A85/5s1 | Trunk lid/liftgate lock main catch switch | 81K |
| A85/5s2 | Trunk lid/liftgate lock safety catch switch | 85K |
| C7/1 | Interference suppression filter (12V) | 135L |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 228H |
| Code 222 | Electrically adjustable right front seat | 232H |
| Code 287 | Through-loading feature | 139A |
| Code 287 | Through-loading feature | 152A |
| Code 413 | Panoramic sliding sunroof | 22E |
| Code 460 | Canada version | 72D |
| Code 460 | Canada version | 57D |
| Code 460 | Canada version | 69D |
| Code 494 | USA version | 69D |
| Code 494 | USA version | 72E |
| Code 494 | USA version | 57D |
| Code 540 | Electric roller sun blind for rear window | 282D |
| Code 550 | Trailer hitch | 115D |
| Code 872 | Seat heater in rear passenger compartment | 236H |
| Code 873 | Seat heater for driver and front passenger | 240F |
| Code 873 | Seat heater for driver and front passenger | 248F |
| Code 881 | Remote trunk closing | 26D |
| Code 890 | EASY-PACK liftgate | 30D |
| Code 890 | EASY-PACK liftgate | 85F |
| Code 890 | EASY-PACK liftgate | 277D |
| Code 890 | EASY-PACK liftgate | 285D |
| Code F205 | MODEL SERIES 205 | 51H |
| Code F205 | MODEL SERIES 205 | 62H |
| Code F205 | MODEL SERIES 205 | 88H |
| Code F205 | MODEL SERIES 205 | 9D |
| Code F205 | MODEL SERIES 205 | 1F |
| Code F205 | MODEL SERIES 205 | 38F |
| Code F205 | MODEL SERIES 205 | 40D |
| Code F205 | MODEL SERIES 205 | 55D |
| Code F205 | MODEL SERIES 205 | 48D |
| Code F205 | MODEL SERIES 205 | 83D |
| Code F205 | MODEL SERIES 205 | 80D |
| Code F205 | MODEL SERIES 205 | 72D |
| Code F205 | MODEL SERIES 205 | 76D |
| Code F205 | MODEL SERIES 205 | 92D |
| Code F205 | MODEL SERIES 205 | 110D |
| Code F205 | MODEL SERIES 205 | 119D |
| Code F205 | MODEL SERIES 205 | 125D |
| Code F205 | MODEL SERIES 205 | 127D |
| Code F205 | MODEL SERIES 205 | 139A |
| Code F205 | MODEL SERIES 205 | 173E |
| Code F205 | MODEL SERIES 205 | 155E |
| Code F205 | MODEL SERIES 205 | 158E |
| Code F205 | MODEL SERIES 205 | 171E |
| Code F205 | MODEL SERIES 205 | 183E |
| Code F205 | MODEL SERIES 205 | 225D |
| Code F205 | MODEL SERIES 205 | 153A |
| Code F205 | MODEL SERIES 205 | 198A |
| Code F205 | MODEL SERIES 205 | 214A |
| Code F205 | MODEL SERIES 205 | 277D |
| Code F205 | MODEL SERIES 205 | 269D |
| Code F205 | MODEL SERIES 205 | 271D |
| Code F205 | MODEL SERIES 205 | 285D |
| Code F205 | MODEL SERIES 205 | 262D |
| Code F205 | MODEL SERIES 205 | 260D |
| Code F253 | MODEL SERIES 253 | 90H |
| Code F253 | MODEL SERIES 253 | 3F |
| Code F253 | MODEL SERIES 253 | 35F |
| Code F253 | MODEL SERIES 253 | 14D |
| Code F253 | MODEL SERIES 253 | 22D |
| Code F253 | MODEL SERIES 253 | 43D |
| Code F253 | MODEL SERIES 253 | 53D |
| Code F253 | MODEL SERIES 253 | 76D |
| Code F253 | MODEL SERIES 253 | 83D |
| Code F253 | MODEL SERIES 253 | 110E |
| Code F253 | MODEL SERIES 253 | 133D |
| Code F253 | MODEL SERIES 253 | 130D |
| Code F253 | MODEL SERIES 253 | 161E |
| Code F253 | MODEL SERIES 253 | 176E |
| Code F253 | MODEL SERIES 253 | 189E |
| Code F253 | MODEL SERIES 253 | 225E |
| Code F253 | MODEL SERIES 253 | 153B |
| Code F253 | MODEL SERIES 253 | 275D |
| Code F253 | MODEL SERIES 253 | 273D |
| Code F253 | MODEL SERIES 253 | 262E |
| Code F253 | MODEL SERIES 253 | 277E |
| Code F253 | MODEL SERIES 253 | 285E |
| Code FA | CABRIOLET | 48D |
| Code FA | CABRIOLET | 92D |
| Code FA | CABRIOLET | 72D |
| Code FA | CABRIOLET | 127D |
| Code FA | CABRIOLET | 198A |
| Code FA | CABRIOLET | 214B |
| Code FA | CABRIOLET | 260D |
| Code FC | COUPE | 43D |
| Code FC | COUPE | 80E |
| Code FC | COUPE | 133D |
| Code FC | COUPE | 119E |
| Code FC | COUPE | 139B |
| Code FC | COUPE | 214A |
| Code FS | STATION WAGON | 51H |
| Code FS | STATION WAGON | 88H |
| Code FS | STATION WAGON | 62H |
| Code FS | STATION WAGON | 38F |
| Code FS | STATION WAGON | 76D |
| Code FS | STATION WAGON | 83D |
| Code FS | STATION WAGON | 125D |
| Code FS | STATION WAGON | 110D |
| Code FS | STATION WAGON | 183E |
| Code FS | STATION WAGON | 225E |
| Code FS | STATION WAGON | 153B |
| Code FS | STATION WAGON | 277E |
| Code FS | STATION WAGON | 285E |
| Code FV | LONG SEDAN | 22D |
| Code FV | LONG SEDAN | 40E |
| Code FV | LONG SEDAN | 80D |
| Code FV | LONG SEDAN | 119E |
| Code FV | LONG SEDAN | 139B |
| Code FV | LONG SEDAN | 225E |
| Code FW | SEDAN | 40D |
| Code FW | SEDAN | 80D |
| Code FW | SEDAN | 119D |
| Code FW | SEDAN | 139B |
| Code FW | SEDAN | 225D |
| Code FX | SPORT-UTILITY-VEHICLE | 36F |
| Code FX | SPORT-UTILITY-VEHICLE | 130D |
| Code L | LEFT-HAND DRIVE | 248G |
| Code M177 | SPARK-IGNITION ENGINE M177 | 263D |
| Code M177 | SPARK-IGNITION ENGINE M177 | 263E |
| Code M177 | SPARK-IGNITION ENGINE M177 | 262D |
| Code R | RIGHT-HAND DRIVE | 248G |
| E18/4 | Right luggage compartment lamp | 13L |
| E18/4 | Right luggage compartment lamp | 21L |
| E18/5 | Left luggage compartment lamp | 114L |
| E19/1 | Left license plate lamp | 55L |
| E19/2 | Right license plate lamp | 57L |
| E21 | Center stop lamp | 121L |
| E21 | Center stop lamp | 126L |
| E21 | Center stop lamp | 129L |
| E21 | Center stop lamp | 138L |
| E21 | Center stop lamp | 132L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 47L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 50L |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 53L |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f465 | Fuse 465 | 5L |
| K40/5f466 | Fuse 466 | 2L |
| M14/10 | Tank cap central locking actuator | 16L |
| M14/10 | Tank cap central locking actuator | 11L |
| M14/19 | Stowage compartment central locking actuator motor | 261L |
| M14/31 | Trunk lid/liftgate locking element | 27L |
| M14/4 | Tailgate locking element | 31L |
| M24 | Rear window roller sun blind motor | 284L |
| M50/1 | Left cargo area cover actuator motor | 280L |
| M50/1b1 | Left cargo area cover Hall sensor | 279L |
| M50/1m1 | Left cargo area cover drive motor | 281L |
| M50/1x1 | Left cargo area cover actuator motor electrical connector | 278J |
| M50/2 | Right cargo area cover actuator motor | 289L |
| M50/2M | Right cargo area cover Hall sensor | 287L |
| M50/2m1 | Right cargo area cover drive motor | 293L |
| M50/2s1 | Right cargo area cover limit switch | 290L |
| M50/2x1 | Right cargo area cover actuator motor electrical connector | 286J |
| M53/15 | Left rear backrest release actuator | 182L |
| M53/15 | Left rear backrest release actuator | 200L |
| M53/16 | Right rear backrest release actuator | 154L |
| M53/16 | Right rear backrest release actuator | 212L |
| M6/4 | Tailgate wiper motor | 78L |

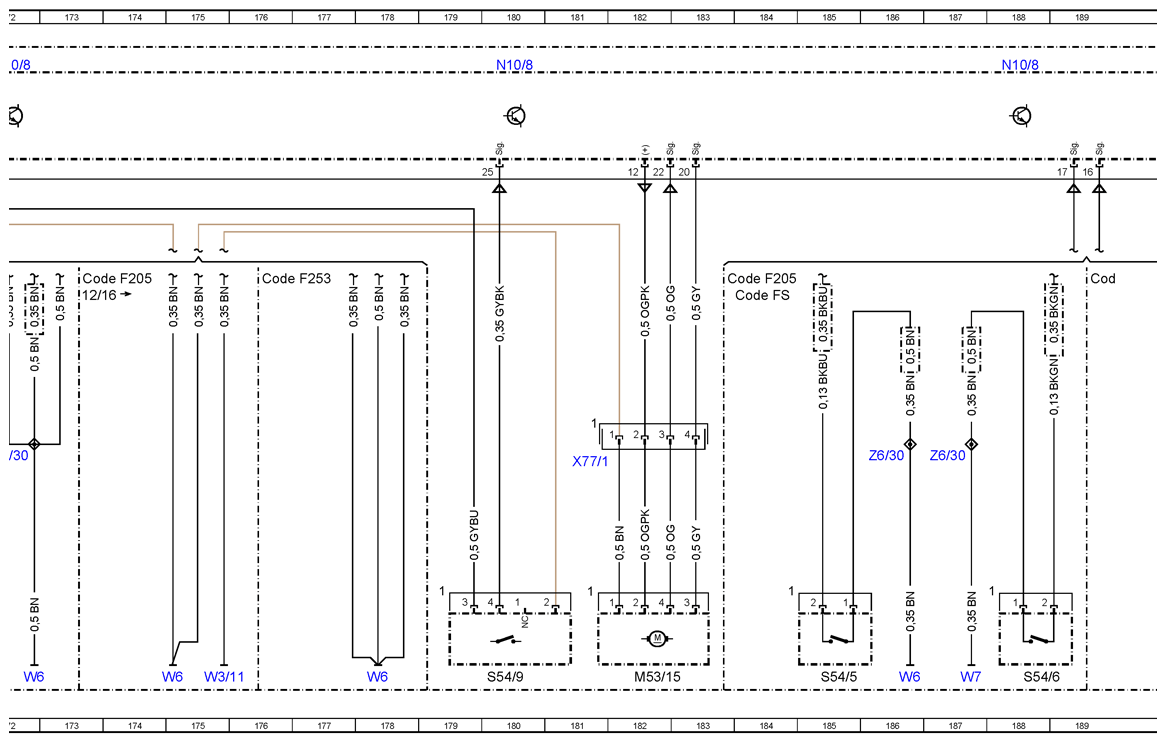

| N10/6 | Front SAM control unit | 258L |

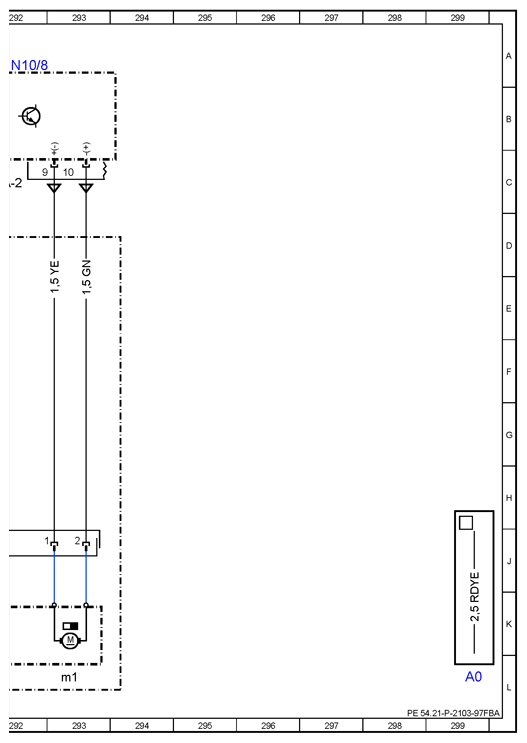

| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 28A |
| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 52A |
| N10/8 | Rear SAM control unit | 68A |
| N10/8 | Rear SAM control unit | 60A |
| N10/8 | Rear SAM control unit | 76A |
| N10/8 | Rear SAM control unit | 92A |
| N10/8 | Rear SAM control unit | 84A |
| N10/8 | Rear SAM control unit | 100A |
| N10/8 | Rear SAM control unit | 108A |
| N10/8 | Rear SAM control unit | 116A |
| N10/8 | Rear SAM control unit | 124A |
| N10/8 | Rear SAM control unit | 132A |
| N10/8 | Rear SAM control unit | 141A |
| N10/8 | Rear SAM control unit | 148A |
| N10/8 | Rear SAM control unit | 156A |
| N10/8 | Rear SAM control unit | 164A |
| N10/8 | Rear SAM control unit | 172A |
| N10/8 | Rear SAM control unit | 180A |
| N10/8 | Rear SAM control unit | 188A |
| N10/8 | Rear SAM control unit | 196A |
| N10/8 | Rear SAM control unit | 204A |
| N10/8 | Rear SAM control unit | 212A |
| N10/8 | Rear SAM control unit | 216A |
| N10/8 | Rear SAM control unit | 228A |
| N10/8 | Rear SAM control unit | 236A |
| N10/8 | Rear SAM control unit | 244A |
| N10/8 | Rear SAM control unit | 292A |
| N10/8 | Rear SAM control unit | 252A |
| N10/8 | Rear SAM control unit | 260A |
| N10/8 | Rear SAM control unit | 268A |
| N10/8 | Rear SAM control unit | 276A |
| N10/8 | Rear SAM control unit | 284A |
| N22/6 | Rear control unit | 97L |
| N25/17 | Front seat heater control unit | 250L |
| N25/4 | Front passenger seat heater control unit | 242L |
| N25/5 | Driver seat heater control unit | 246L |
| N25/6 | Rear seat heaters control unit | 238L |
| N28/1 | Trailer recognition control unit | 117L |
| N30/4 | Electronic Stability Program control unit | 264L |
| N30/4 | Electronic Stability Program control unit | 265L |
| N30/4 | Electronic Stability Program control unit | 264L |
| N32/1 | Driver seat control unit | 230L |
| N32/2 | Front passenger seat control unit | 234L |
| S10/4 | Right rear brake wear sensor | 268L |
| S138/5 | Panoramic sliding sunroof roller sun blind button | 24L |
| S54/10 | Right luggage compartment rear backrest release button | 167L |
| S54/10 | Right luggage compartment rear backrest release button | 209L |
| S54/11 | Left rear backrest release button | 169L |
| S54/12 | Right rear backrest release button | 164L |
| S54/5 | Left rear backrest inclination switch | 140L |
| S54/5 | Left rear backrest inclination switch | 191L |
| S54/5 | Left rear backrest inclination switch | 185L |
| S54/5 | Left rear backrest inclination switch | 199L |
| S54/6 | Right rear backrest inclination switch | 147L |
| S54/6 | Right rear backrest inclination switch | 188L |
| S54/6 | Right rear backrest inclination switch | 197L |
| S54/6 | Right rear backrest inclination switch | 211L |
| S54/7 | Left rear backrest lock switch | 151L |
| S54/8 | Right rear backrest lock switch | 149L |
| S54/9 | Left luggage compartment rear backrest release button | 180L |
| S54/9 | Left luggage compartment rear backrest release button | 218L |
| S62/26 | Trunk lid/liftgate control button | 33L |
| S62/26 | Trunk lid/liftgate control button | 29L |
| S68/11 | Left rear seat belt buckle switch | 223L |
| S68/12 | Right rear seat belt buckle switch | 224L |
| S68/14 | Center rear seat belt buckle switch | 227L |
| S88/10 | Trunk lid emergency opening switch | 74L |
| S88/10 | Trunk lid emergency opening switch | 71L |
| S88/8 | Trunk lid/liftgate external operation switch | 42L |
| S88/8 | Trunk lid/liftgate external operation switch | 45L |
| S88/8 | Trunk lid/liftgate external operation switch | 35L |
| S91/6 | Left backrest release/inclination microswitch | 216L |
| S92/6 | Right backrest release/inclination microswitch | 215L |
| W3/11 | Left rear wheel well ground point | 128L |
| W3/11 | Left rear wheel well ground point | 175L |
| W3/8 | Right rear wheel well ground point | 67L |
| W3/8 | Right rear wheel well ground point | 59L |
| W3/8 | Right rear wheel well ground point | 143L |
| W3/8 | Right rear wheel well ground point | 5E |
| W3/8 | Right rear wheel well ground point | 160L |
| W3/8 | Right rear wheel well ground point | 157L |
| W3/8 | Right rear wheel well ground point | 204L |
| W3/8 | Right rear wheel well ground point | 207G |
| W3/8 | Right rear wheel well ground point | 270L |
| W52/6 | Right center longitudinal member ground point | 122L |
| W52/6 | Right center longitudinal member ground point | 272L |
| W6 | Left wheel arch trunk ground point | 113L |
| W6 | Left wheel arch trunk ground point | 111L |
| W6 | Left wheel arch trunk ground point | 142L |
| W6 | Left wheel arch trunk ground point | 145L |
| W6 | Left wheel arch trunk ground point | 172L |
| W6 | Left wheel arch trunk ground point | 178L |
| W6 | Left wheel arch trunk ground point | 175L |
| W6 | Left wheel arch trunk ground point | 192L |
| W6 | Left wheel arch trunk ground point | 186L |
| W6 | Left wheel arch trunk ground point | 195L |
| W6 | Left wheel arch trunk ground point | 206L |
| W6 | Left wheel arch trunk ground point | 203L |
| W6 | Left wheel arch trunk ground point | 221L |
| W6 | Left wheel arch trunk ground point | 222L |
| W7 | Right wheel house trunk ground point | 126F |
| W7 | Right wheel house trunk ground point | 17L |
| W7 | Right wheel house trunk ground point | 39L |
| W7 | Right wheel house trunk ground point | 12G |
| W7 | Right wheel house trunk ground point | 42G |
| W7 | Right wheel house trunk ground point | 50G |
| W7 | Right wheel house trunk ground point | 68L |
| W7 | Right wheel house trunk ground point | 64L |
| W7 | Right wheel house trunk ground point | 89L |
| W7 | Right wheel house trunk ground point | 124L |
| W7 | Right wheel house trunk ground point | 146L |
| W7 | Right wheel house trunk ground point | 79G |
| W7 | Right wheel house trunk ground point | 83G |
| W7 | Right wheel house trunk ground point | 3E |
| W7 | Right wheel house trunk ground point | 73E |
| W7 | Right wheel house trunk ground point | 95E |
| W7 | Right wheel house trunk ground point | 159L |
| W7 | Right wheel house trunk ground point | 163L |
| W7 | Right wheel house trunk ground point | 187L |
| W7 | Right wheel house trunk ground point | 274L |
| W7 | Right wheel house trunk ground point | 290F |
| W7 | Right wheel house trunk ground point | 227F |
| W76 | Fuel pump ground point | 162L |
| W76 | Fuel pump ground point | 194L |
| W76 | Fuel pump ground point | 196L |
| W76 | Fuel pump ground point | 276L |
| W8/12 | Upper right liftgate ground point | 137F |
| W8/12 | Upper right liftgate ground point | 131F |
| W8/12 | Upper right liftgate ground point | 44L |
| W8/12 | Upper right liftgate ground point | 37L |
| W8/12 | Upper right liftgate ground point | 91L |
| W8/12 | Upper right liftgate ground point | 79G |
| X23/5 | Electrical connector/soft top compartment lid | 128F |
| X23/5 | Electrical connector/soft top compartment lid | 128H |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 59E |
| X28/29 | Frame floor assembly/driver seat electrical connector | 241H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 245H |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 254L |
| X55/15 | Driver seat electrical connector | 249H |
| X55/16 | Front passenger seat electrical connector | 249H |
| X62/33 | Rear axle electrical connector, right distributor | 267H |
| X77/1 | Left rear backrest release actuator electrical connector | 181H |
| X77/2 | Right rear backrest release actuator electrical connector | 153H |
| X8/4 | Trunk lid/liftgate electrical connector | 49H |
| X8/4 | Trunk lid/liftgate electrical connector | 73G |
| X8/4 | Trunk lid/liftgate electrical connector | 93H |
| Z137/1z1 | Connector sleeve, heater LIN | 237G |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 167H |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 208G |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 217G |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 257G |
| Z6/113z1 | Rear seat ground point connector sleeve | 18G |
| Z6/113z1 | Rear seat ground point connector sleeve | 289F |
| Z6/113z1 | Rear seat ground point connector sleeve | 193H |
| Z6/113z1 | Rear seat ground point connector sleeve | 157G |
| Z6/113z1 | Rear seat ground point connector sleeve | 204G |
| Z6/113z1 | Rear seat ground point connector sleeve | 274H |
| Z6/30 | Circuit 31 connector sleeve | 61J |
| Z6/30 | Circuit 31 connector sleeve | 65J |
| Z6/30 | Circuit 31 connector sleeve | 111J |
| Z6/30 | Circuit 31 connector sleeve | 141G |
| Z6/30 | Circuit 31 connector sleeve | 143G |
| Z6/30 | Circuit 31 connector sleeve | 192H |
| Z6/30 | Circuit 31 connector sleeve | 172G |
| Z6/30 | Circuit 31 connector sleeve | 186G |
| Z6/30 | Circuit 31 connector sleeve | 187G |
| Z6/30 | Circuit 31 connector sleeve | 202G |
| Z6/30 | Circuit 31 connector sleeve | 220G |
| Z6/30 | Circuit 31 connector sleeve | 270H |
| Z6/30z1 | Circuit 31 connector sleeve | 17G |
| Z6/92z1 | Trunk lid ground line connector sleeve | 37G |
| Z6/92z1 | Trunk lid ground line connector sleeve | 43G |
| Z6/92z1 | Trunk lid ground line connector sleeve | 59J |
| Z6/92z1 | Trunk lid ground line connector sleeve | 131H |
| Z6/92z1 | Trunk lid ground line connector sleeve | 137H |
| Z6/92z3 | Trunk lid ground connector sleeve | 39G |
| Z6/92z3 | Trunk lid ground connector sleeve | 63J |
| Z6/92z3 | Trunk lid ground connector sleeve | 89J |
| Z6/92z3 | Trunk lid ground connector sleeve | 125H |
| Z75/1z1 | License plate lamp connector sleeve | 56G |
