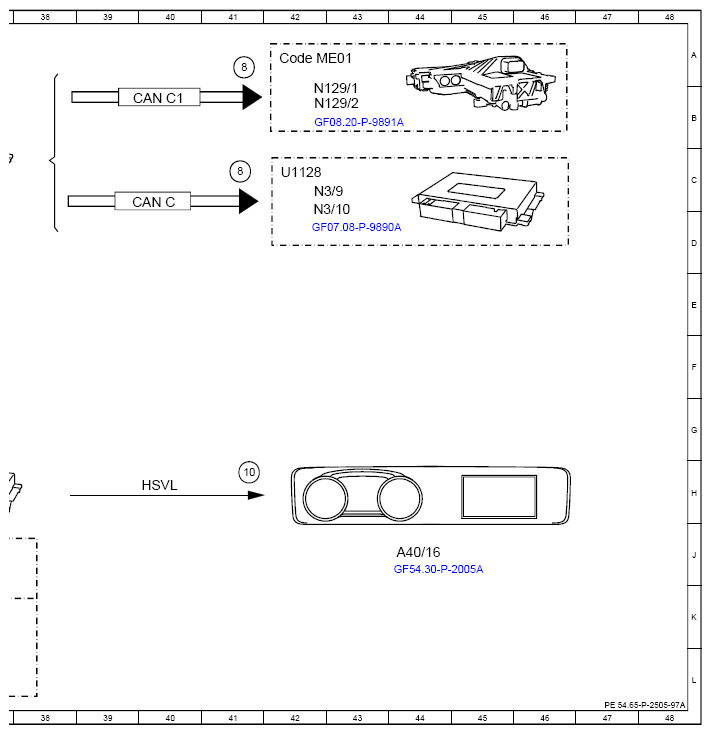

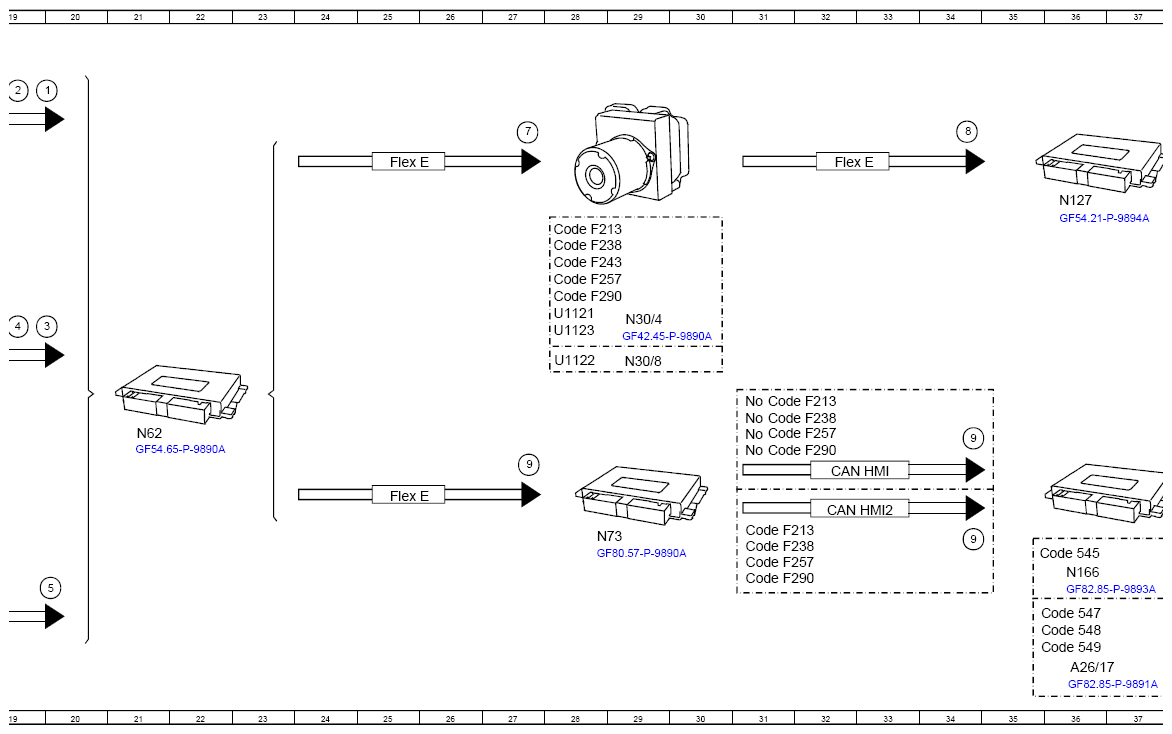

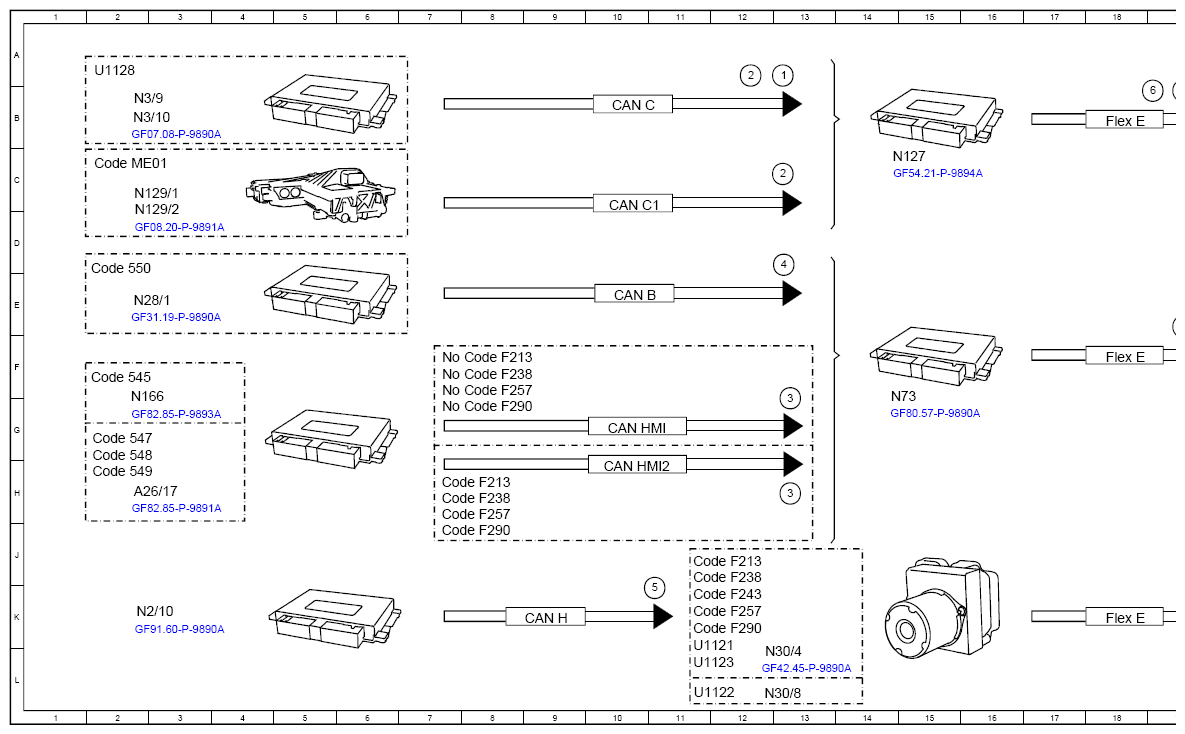

Start-Off Assistance, Function Schematic - PE54.65-P-2505-97A
Model 167 with code 235 (Active Parking Assist)
Model 118, 177, 247 with transmission 724 with code 235 (Active Parking Assist)
Model 213, 238, 257, 290 with transmission 725 as of model year 2021 with code 235 (Active Parking Assist)
Model 243 with code 235 (Active Parking Assist) with code MEB2 (Entry variant with M-battery)
Model 293 with code 235 (Active Parking Assist) with code ME01 (Electric motor)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 20B |
| 1 | Engine running, signal | 13A |
| 10 | Image data, signal | 41H |
| 2 | Drivetrain operational, signal | 19B |
| 2 | Drivetrain operational, signal | 12B |
| 2 | Drivetrain operational, signal | 13C |
| 3 | Parking system, status | 20E |
| 3 | Parking system, status | 13F |
| 3 | Parking system, status | 13H |
| 4 | Trailer recognition, status | 19E |
| 4 | Trailer recognition, status | 13D |
| 5 | Speed, turn rate and lateral acceleration, signal | 19K |
| 5 | Speed, turn rate and lateral acceleration, signal | 10K |
| 6 | Transmission position, signal | 18B |
| 7 | Limit vehicle speed, request | 27B |
| 8 | Engine torque, reduce request | 34B |
| 8 | Engine torque, reduce request | 41C |
| 8 | Engine torque, reduce request | 41A |
| 9 | Parking system indicator, request | 27H |
| 9 | Parking system indicator, request | 34G |
| 9 | Parking system indicator, request | 34J |
| A26/17 | Head unit | 2H |
| A26/17 | Head unit | 36L |
| A40/16 | Head unit/instrument cluster display cluster | 44J |
| CAN B | Interior CAN | 10E |
| CAN C | Engine CAN | 40C |
| CAN C | Engine CAN | 10B |
| CAN C1 | Drive train CAN | 40B |
| CAN C1 | Drive train CAN | 10D |
| CAN H | Vehicle dynamics CAN | 9K |
| CAN HMI | User interface CAN | 10G |
| CAN HMI | User interface CAN | 32H |
| CAN HMI2 | User interface CAN 2 | 10H |
| CAN HMI2 | User interface CAN 2 | 32H |
| Code 545 | Connect 5 (NTG6) | 2F |
| Code 545 | Connect 5 (NTG6) | 35J |
| Code 547 | Connect 20 Entry (NTG6) | 2G |
| Code 547 | Connect 20 Entry (NTG6) | 35K |
| Code 548 | Connect 20 MID (NTG6) | 2H |
| Code 548 | Connect 20 MID (NTG6) | 35K |
| Code 549 | Connect 20 HIGH (NTG6) | 2H |
| Code 549 | Connect 20 HIGH (NTG6) | 35L |
| Code 550 | Trailer hitch | 2E |
| Code F213 | Model series 213 | 11J |
| Code F213 | Model series 213 | 8F |
| Code F213 | Model series 213 | 7H |
| Code F213 | Model series 213 | 28D |
| Code F213 | Model series 213 | 31G |
| Code F213 | Model series 213 | 31J |
| Code F238 | Model series 238 | 11J |
| Code F238 | Model series 238 | 8F |
| Code F238 | Model series 238 | 7H |
| Code F238 | Model series 238 | 28D |
| Code F238 | Model series 238 | 31G |
| Code F238 | Model series 238 | 31J |
| Code F243 | MODEL SERIES 243 | 11K |
| Code F243 | MODEL SERIES 243 | 28D |
| Code F257 | MODEL SERIES 257 | 11K |
| Code F257 | MODEL SERIES 257 | 8F |
| Code F257 | MODEL SERIES 257 | 7H |
| Code F257 | MODEL SERIES 257 | 28E |
| Code F257 | MODEL SERIES 257 | 31G |
| Code F257 | MODEL SERIES 257 | 31J |
| Code F290 | Model series 290 | 11K |
| Code F290 | Model series 290 | 8G |
| Code F290 | Model series 290 | 7J |
| Code F290 | Model series 290 | 28E |
| Code F290 | Model series 290 | 31G |
| Code F290 | Model series 290 | 31J |
| Code ME01 | Electric motor | 42A |
| Code ME01 | Electric motor | 2C |
| Flex E | Chassis FlexRay | 18F |
| Flex E | Chassis FlexRay | 18B |
| Flex E | Chassis FlexRay | 32C |
| Flex E | Chassis FlexRay | 18K |
| Flex E | Chassis FlexRay | 25C |
| Flex E | Chassis FlexRay | 25H |
| HSVL | High-speed video link | 40H |
| N127 | Drivetrain control unit | 15C |
| N127 | Drivetrain control unit | 36C |
| N129/1 | Electric machine 1 power electronics control unit | 42B |
| N129/1 | Electric machine 1 power electronics control unit | 2C |
| N129/2 | Electric machine 2 power electronics control unit | 42B |
| N129/2 | Electric machine 2 power electronics control unit | 2D |
| N166 | Head unit/instrument cluster control unit | 2G |
| N166 | Head unit/instrument cluster control unit | 36J |
| N2/10 | Supplemental restraint system control unit | 2K |
| N28/1 | Trailer recognition control unit | 2E |
| N3/10 | ME-SFI [ME] control unit | 2B |
| N3/10 | ME-SFI [ME] control unit | 42D |
| N3/9 | CDI control unit | 2B |
| N3/9 | CDI control unit | 42C |
| N30/4 | Electronic Stability Program control unit | 13L |
| N30/4 | Electronic Stability Program control unit | 29E |
| N30/8 | Regenerative braking system control unit | 13L |
| N30/8 | Regenerative braking system control unit | 29F |
| N62 | Parking system control unit | 21G |
| N73 | Electronic ignition switch control unit | 15G |
| N73 | Electronic ignition switch control unit | 28J |
| U1121 | Valid for model 167 | 11L |
| U1121 | Valid for model 167 | 28E |
| U1122 | Valid for model 293 | 11L |
| U1122 | Valid for model 293 | 28F |
| U1123 | Valid for model 118, 177, 247 | 11L |
| U1123 | Valid for model 118, 177, 247 | 28F |
| U1128 | Valid for combustion engine | 2A |
| U1128 | Valid for combustion engine | 42C |
