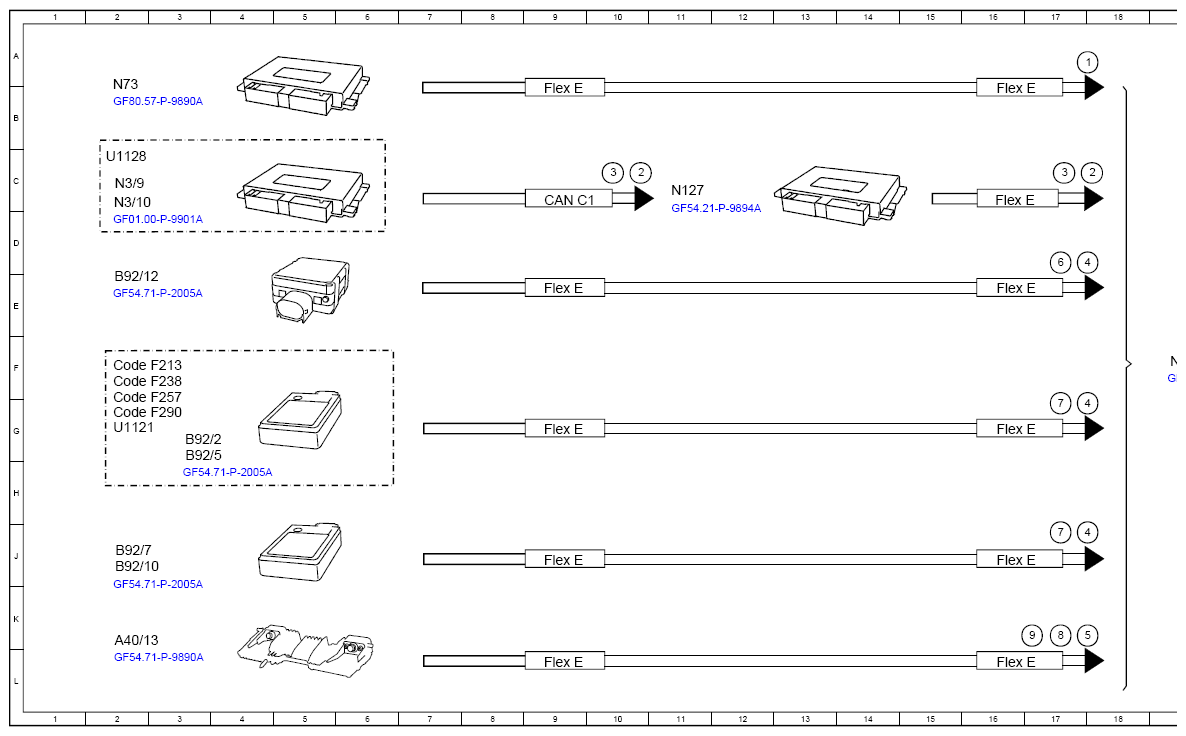

Monitor Traffic Situation, Function Schematic - PE54.71-P-2500-97C
Model 118, 167, 177, 243, 247, 293 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
Model 213, 238, 257, 290 as of model year 2021 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 17A |
| 2 | Engine running, signal | 18C |
| 2 | Engine running, signal | 11C |
| 3 | Drivetrain operational, signal | 17B |
| 3 | Drivetrain operational, signal | 10C |
| 4 | Radar sensor system operational, status | 18E |
| 4 | Radar sensor system operational, status | 18F |
| 4 | Radar sensor system operational, status | 18J |
| 5 | Stereo multifunction camera, status | 18K |
| 6 | Far range radar sensor, signal | 17D |
| 7 | Close range radar sensors, signal | 17G |
| 7 | Close range radar sensors, signal | 17J |
| 8 | Object information, data package | 17K |
| 9 | Lane data, signal | 17K |
| A40/13 | Stereo multifunction camera | 2K |
| B92/10 | Left outer rear bumper radar sensor | 2J |
| B92/12 | Short and long-range radar sensor | 2E |
| B92/2 | Left outer front bumper radar sensor | 3G |
| B92/5 | Right outer front bumper radar sensor | 3G |
| B92/7 | Right outer rear bumper radar sensor | 2J |
| CAN C1 | Drive train CAN | 9C |
| Code F213 | Model series 213 | 2F |
| Code F238 | Model series 238 | 2F |
| Code F257 | MODEL SERIES 257 | 2G |
| Code F290 | Model series 290 | 2G |
| Flex E | Chassis FlexRay | 16B |
| Flex E | Chassis FlexRay | 16C |
| Flex E | Chassis FlexRay | 9B |
| Flex E | Chassis FlexRay | 9G |
| Flex E | Chassis FlexRay | 16G |
| Flex E | Chassis FlexRay | 9E |
| Flex E | Chassis FlexRay | 16E |
| Flex E | Chassis FlexRay | 9J |
| Flex E | Chassis FlexRay | 16J |
| Flex E | Chassis FlexRay | 9L |
| Flex E | Chassis FlexRay | 16L |
| N127 | Drivetrain control unit | 11C |
| N3/10 | ME-SFI [ME] control unit | 2C |
| N3/9 | CDI control unit | 2C |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 19F |
| N73 | Electronic ignition switch control unit | 2B |
| U1121 | Valid for model 167 | 2G |
| U1128 | Valid for combustion engine | 2C |
