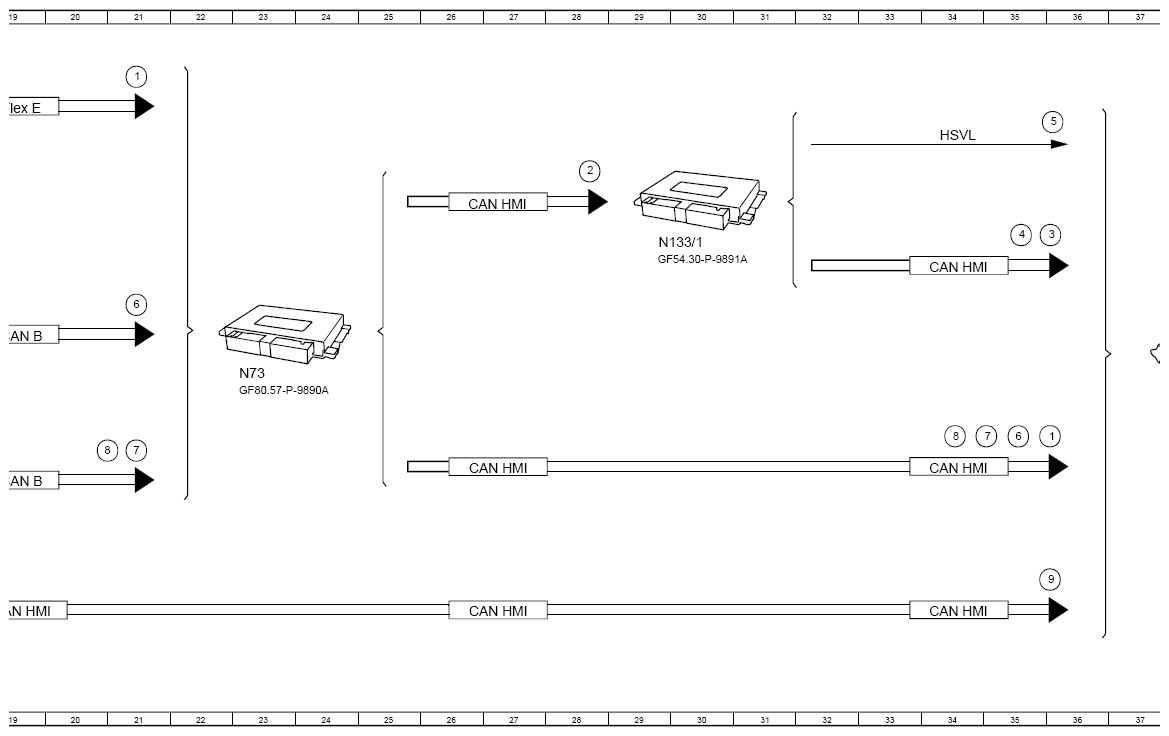

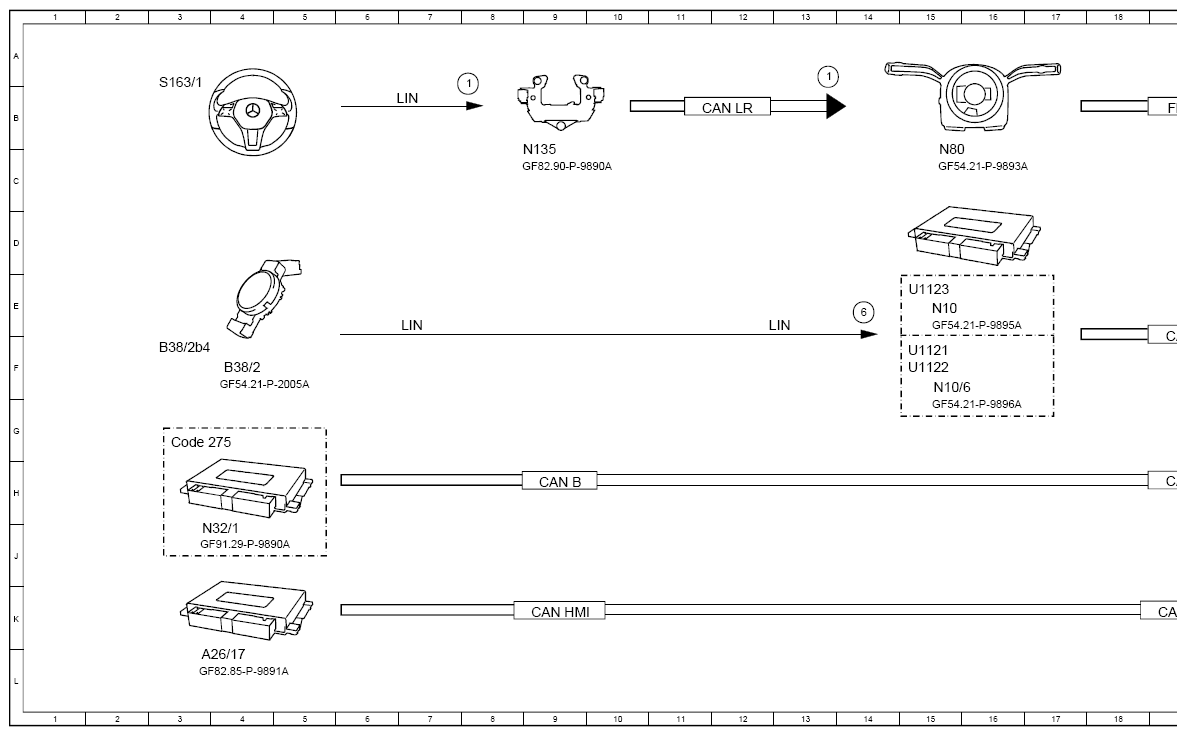

Function Schematic For Displaying Information In Head-Up Display - PE54.30-P-2510-97A
Model 118, 167, 177, 243, 247, 293 with code 463 (Head-up display)
Model 213, 238, 257, 290 as of model year 2021 with code 463 (Head-up display)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 21A |
| 1 | Operation, signal | 13A |
| 1 | Operation, signal | 8A |
| 1 | Operation, signal | 36G |
| 2 | Circuit 15, status | 28C |
| 3 | Switch-on request, signal | 35D |
| 4 | Head-up display settings, request | 35D |
| 5 | Image data, signal | 36B |
| 6 | Head-up display light sensor, signal | 21E |
| 6 | Head-up display light sensor, signal | 14E |
| 6 | Head-up display light sensor, signal | 35E |
| 7 | Store memory position, request | 22G |
| 7 | Store memory position, request | 34G |
| 8 | Adopt memory position, request | 21G |
| 8 | Adopt memory position, request | 34G |
| 9 | Map data, signal | 35J |
| A26/17 | Head unit | 4L |
| A40/12 | Head-up display | 38G |
| B38/2 | Rain/light sensor with additional functions | 4F |
| B38/2b4 | Head-up display light sensor | 3F |
| CAN B | Interior CAN | 19F |
| CAN B | Interior CAN | 19H |
| CAN B | Interior CAN | 9H |
| CAN HMI | User interface CAN | 27C |
| CAN HMI | User interface CAN | 9K |
| CAN HMI | User interface CAN | 19K |
| CAN HMI | User interface CAN | 27H |
| CAN HMI | User interface CAN | 34D |
| CAN HMI | User interface CAN | 34H |
| CAN HMI | User interface CAN | 34K |
| CAN HMI | User interface CAN | 27K |
| CAN LR | Steering wheel CAN | 12B |
| Code 275 | Electrically adjustable driver seat with memory function | 3G |
| Flex E | Chassis FlexRay | 19B |
| HSVL | High-speed video link | 34B |
| LIN | Local Interconnect Network | 7E |
| LIN | Local Interconnect Network | 7B |
| LIN | Local Interconnect Network | 13E |
| N10 | Central control module | 15E |
| N10/6 | 15F | |
| N133/1 | Instrument cluster control unit | 29D |
| N135 | Steering wheel electronics | 9C |
| N32/1 | Driver seat control unit | 4J |
| N73 | Electronic ignition switch control unit | 23F |
| N80 | Steering column module control unit | 15C |
| S163/1 | Instrument cluster multifunction steering wheel button group | 3B |
| U1121 | Valid for model 167 | 15F |
| U1122 | Valid for model 293 | 15F |
| U1123 | Valid for model 118, 177, 247 | 15E |
