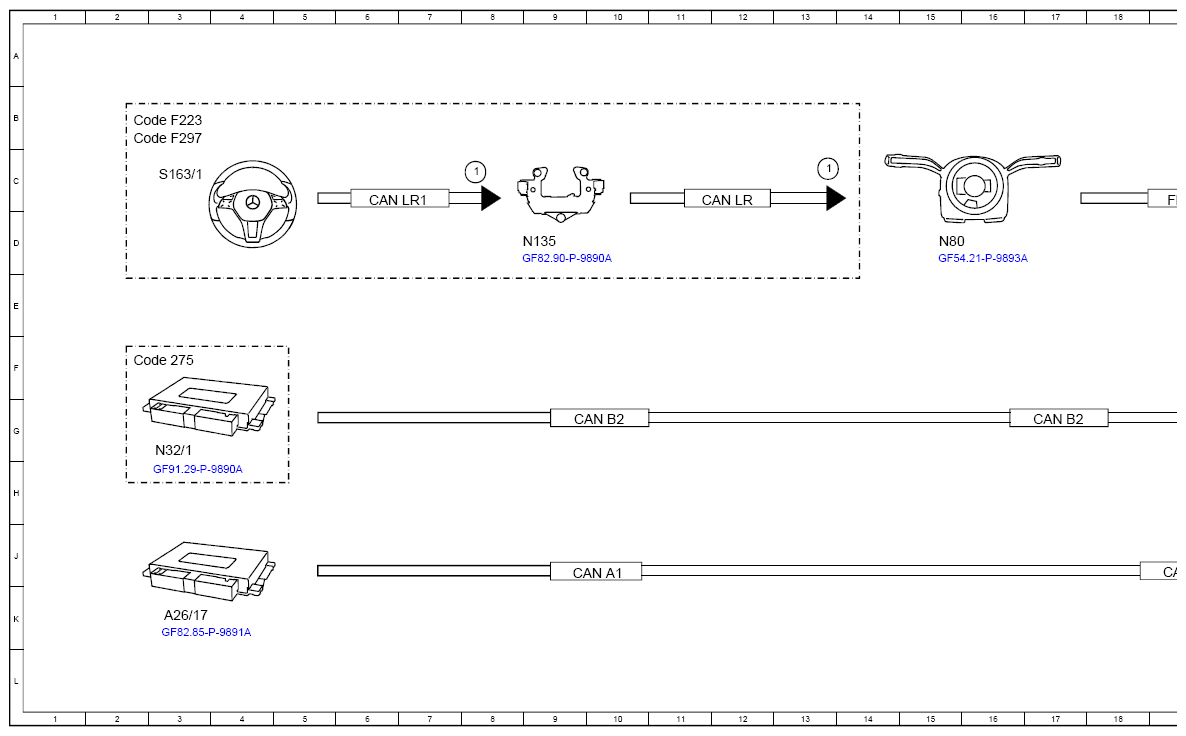

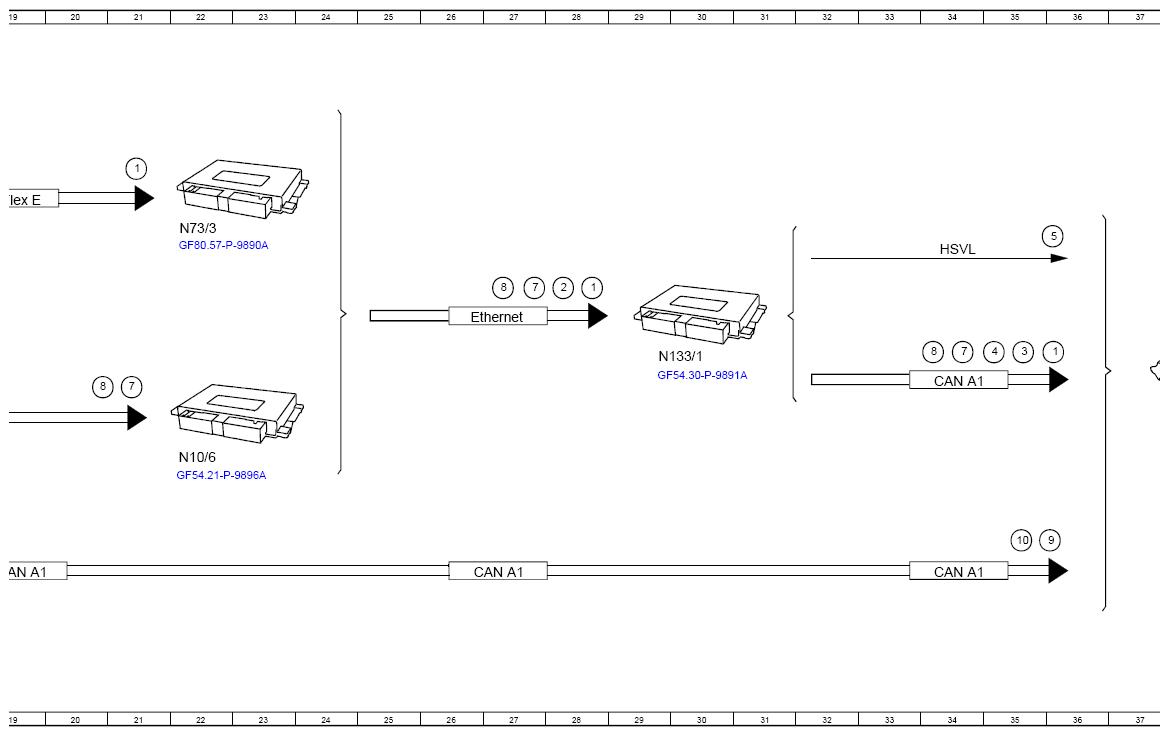

(Function Schematic For Displaying Information In Head-Up Display - PE54.30-P-2510-97B)
Model 206, 214, 236, 254, 294, 295, 296, 297 with code 444 (Advanced Head-up Display (HUD))
Model 223, 296, 297 with code 445 (Head-up display with augmented reality.)
Model 223 with code 438 (Head-up display, Classic.)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 21C |
| 1 | Operation, signal | 13C |
| 1 | Operation, signal | 8C |
| 1 | Operation, signal | 28E |
| 1 | Operation, signal | 36F |
| 10 | Roadway brightness, signal | 35J |
| 2 | Circuit 15, status | 28E |
| 3 | Switch-on request, signal | 35F |
| 4 | Head-up display settings, request | 35F |
| 5 | Image data, signal | 36D |
| 7 | Store memory position, request | 21F |
| 7 | Store memory position, request | 27E |
| 7 | Store memory position, request | 34F |
| 8 | Adopt memory position, request | 20F |
| 8 | Adopt memory position, request | 27D |
| 8 | Adopt memory position, request | 34F |
| 9 | Map data, signal | 36J |
| A26/17 | Head unit | 3K |
| A40/12 | Head-up display | 38G |
| CAN A1 | CAN 1 for telematics | 10J |
| CAN A1 | CAN 1 for telematics | 19J |
| CAN A1 | CAN 1 for telematics | 34F |
| CAN A1 | CAN 1 for telematics | 34J |
| CAN A1 | CAN 1 for telematics | 27J |
| CAN B2 | CAN 2 for vehicle interior | 17G |
| CAN B2 | CAN 2 for vehicle interior | 10G |
| CAN LR | CAN for steering wheel | 12C |
| CAN LR1 | CAN for steering wheel gearshift buttons | 6C |
| Code 275 | Memory Package (driver's seat, steering column and mirrors) | 2F |
| Code F223 | Model series 223 | 2B |
| Code F297 | Model series 297 | 2B |
| Ethernet | Ethernet | 27E |
| Flex E | Chassis FlexRay | 19C |
| HSVL | High-speed video link | 34D |
| N10/6 | Front signal acquisition and actuation module control unit | 22H |
| N133/1 | Instrument cluster control unit | 29F |
| N135 | Steering wheel electronics | 9D |
| N32/1 | Driver seat control unit | 3G |
| N73/3 | Electronic ignition switch control unit | 22D |
| N80 | Steering column module control unit | 15D |
| S163/1 | Multifunction steering wheel button group 1 | 3C |
