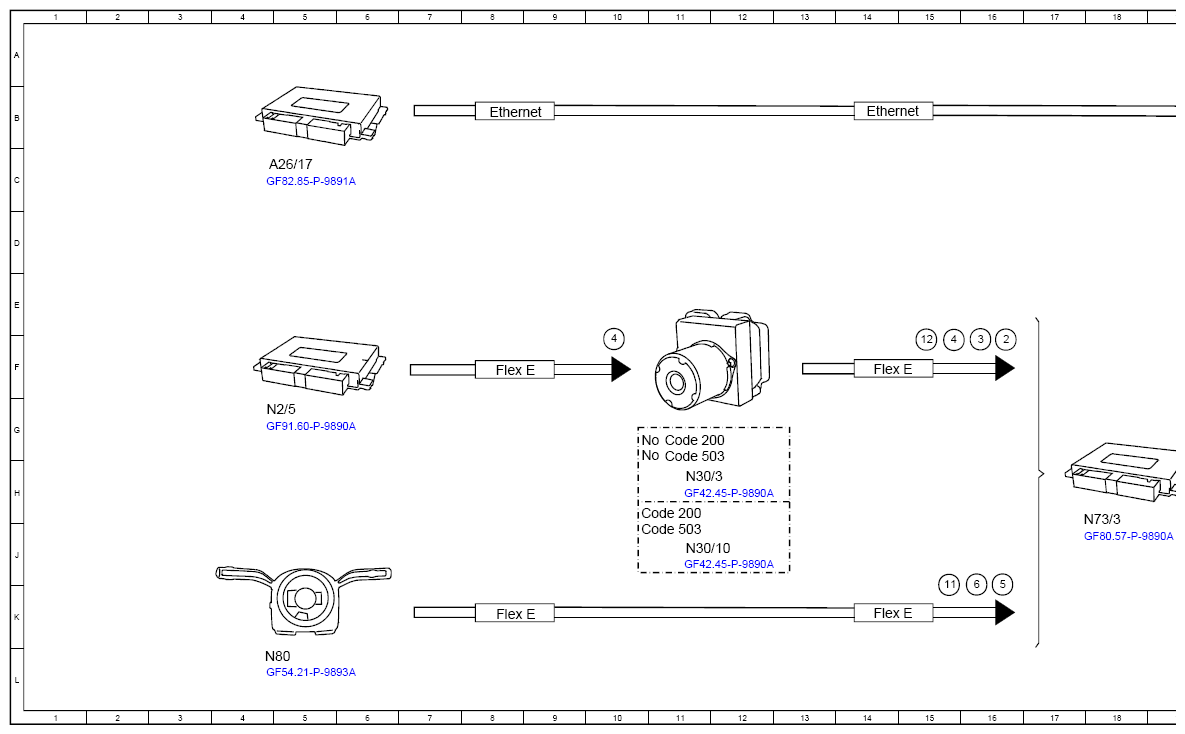

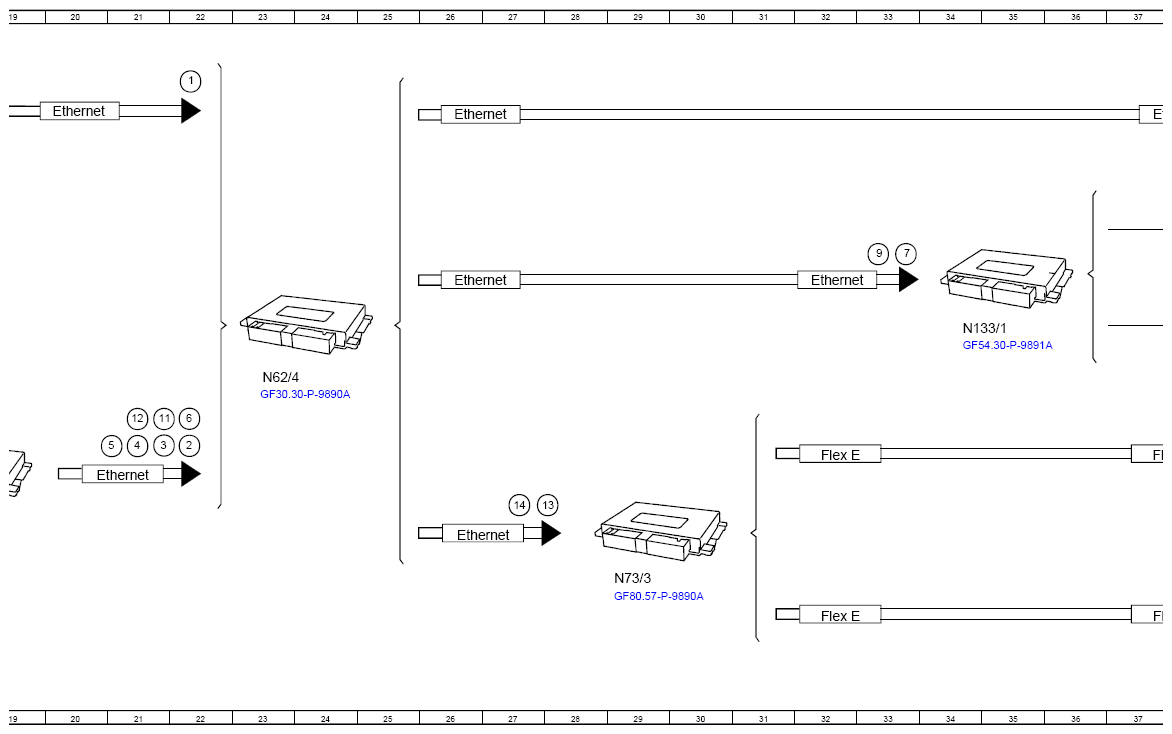

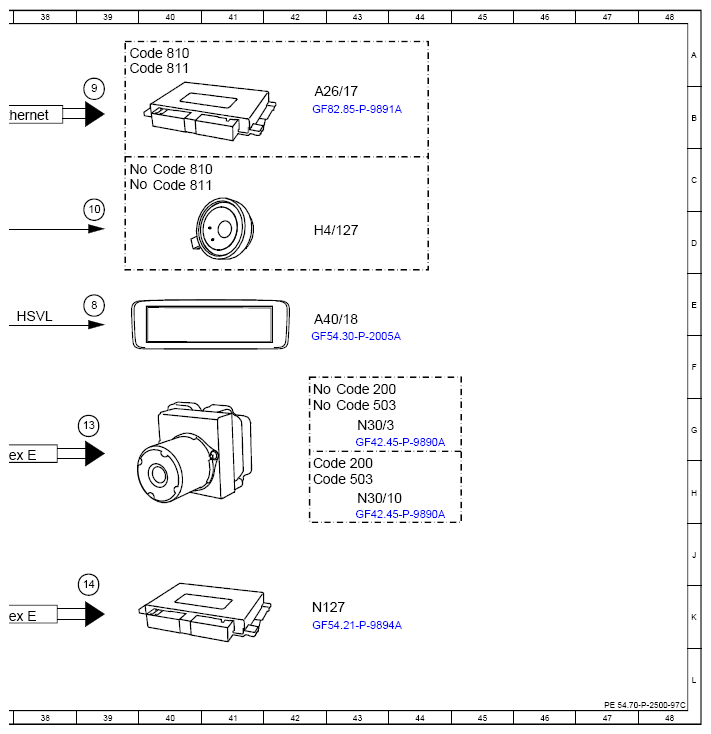

(Collision Warning System, Function Schematic - PE54.70-P-2500-97C)
Model 223, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Active Brake Assist function with cross-traffic function, signal | 22B |
| 10 | Speaker, actuation | 39D |
| 11 | Operation, signal | 15K |
| 11 | Operation, signal | 22F |
| 12 | Braking torque, signal | 15E |
| 12 | Braking torque, signal | 21F |
| 13 | Service brake braking torque, request | 39G |
| 13 | Service brake braking torque, request | 27H |
| 14 | Engine torque, reduce request | 39K |
| 14 | Engine torque, reduce request | 27H |
| 2 | Wheel speed, signal | 16F |
| 2 | Wheel speed, signal | 22G |
| 3 | Wheel rotation direction, signal | 16F |
| 3 | Wheel rotation direction, signal | 22G |
| 4 | Speed, turn rate and lateral acceleration, signal | 15E |
| 4 | Speed, turn rate and lateral acceleration, signal | 10F |
| 4 | Speed, turn rate and lateral acceleration, signal | 21G |
| 5 | Steering wheel angle, signal | 16K |
| 5 | Steering wheel angle, signal | 21G |
| 6 | Steering wheel velocity, signal | 16K |
| 6 | Steering wheel velocity, signal | 22F |
| 7 | Warning lamp, request | 33D |
| 8 | Image data, signal | 39E |
| 9 | Warning tone, request | 33D |
| 9 | Warning tone, request | 39B |
| A26/17 | Head unit | 5C |
| A26/17 | Head unit | 42B |
| A40/18 | Instrument cluster display | 42E |
| Code 200 | Conditionally automated driving | 10H |
| Code 200 | Conditionally automated driving | 11G |
| Code 200 | Conditionally automated driving | 42H |
| Code 200 | Conditionally automated driving | 43F |
| Code 503 | Remote-controlled parking | 11H |
| Code 503 | Remote-controlled parking | 10J |
| Code 503 | Remote-controlled parking | 43G |
| Code 503 | Remote-controlled parking | 42H |
| Code 810 | Premium sound system | 40C |
| Code 810 | Premium sound system | 39A |
| Code 811 | High-End sound system | 40C |
| Code 811 | High-End sound system | 39A |
| Ethernet | Ethernet | 14B |
| Ethernet | Ethernet | 8B |
| Ethernet | Ethernet | 21H |
| Ethernet | Ethernet | 26J |
| Ethernet | Ethernet | 32E |
| Ethernet | Ethernet | 20B |
| Ethernet | Ethernet | 26E |
| Ethernet | Ethernet | 26B |
| Ethernet | Ethernet | 37B |
| Flex E | Chassis FlexRay | 32H |
| Flex E | Chassis FlexRay | 32K |
| Flex E | Chassis FlexRay | 8F |
| Flex E | Chassis FlexRay | 14F |
| Flex E | Chassis FlexRay | 37K |
| Flex E | Chassis FlexRay | 14K |
| Flex E | Chassis FlexRay | 8K |
| Flex E | Chassis FlexRay | 37H |
| H4/127 | Instrument panel mid-range speaker | 42D |
| HSVL | High-speed video link | 38E |
| N127 | Drivetrain control unit | 42K |
| N133/1 | Instrument cluster control unit | 34E |
| N2/5 | Supplemental restraint system control unit | 4G |
| N30/10 | Electronic Stability Program control unit | 11J |
| N30/10 | Electronic Stability Program control unit | 43H |
| N30/3 | Electronic Stability Program control unit | 11H |
| N30/3 | Electronic Stability Program control unit | 43G |
| N62/4 | Driver assistance systems control unit | 23F |
| N73/3 | Electronic ignition switch control unit | 17J |
| N73/3 | Electronic ignition switch control unit | 29J |
| N80 | Steering column module control unit | 4L |
