Remove/Install Pyrofuse - AR54.10-P-1180ME
Model 167
With Code B01 (48V technology)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove front passenger seat. | AR91.10-P-1000ME | |
| 2 | Remove door sill on front passenger side. | AR68.30-P-4100ME | |
| 3 | Remove front floor covering on passenger side. | AR68.80-P-0008ME | |

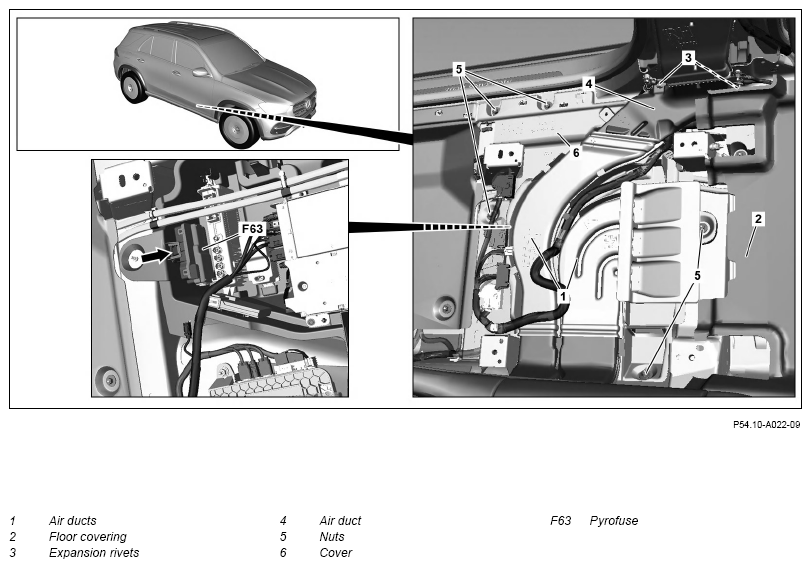

| 4 | Remove air ducts (1). | ||
| 5 | Remove trim at bottom of B-pillar. | AR68.30-P-4700ME | |
| 6 | Fold back floor covering (2). | ||
| 7 | Unclip expansion rivets (3). | Fig 2 | |
| 8 | Remove air duct (4). | ||
| 9 | Unscrew nuts (5). | ||
| 10 | Remove the cover (6). | ||
| 11 | Unclip pyrofuse (F63) (arrow) and pull out far enough to gain access to the electrical connectors on the pyrofuse (F63). | ||
| 12 | Release and disconnect electrical connectors from pyrofuse (F63). | ||
| 13 | Remove pyrofuse (F63). | ||
| 14 | Install in the reverse order. |
