Remove/Install Engine Compartment Fuse And Relay Module - AR54.15-P-0005ME
Model 167
MODIFICATION NOTES
| 13.12.2018 | Operation steps added. | Operation steps 2 to 6. |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Clamp off ground line of on-board electrical system battery (G1). | AR54.10-P-0003ME | |

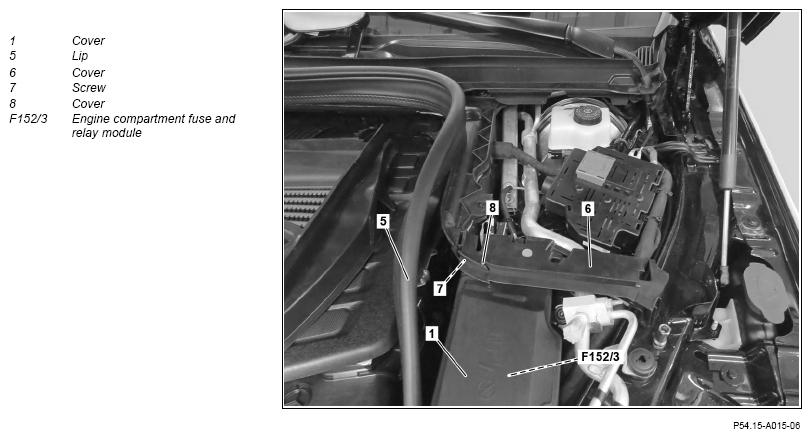

| 2 | Release sealing lip (5) in working area and place to one side. | ||
| 3 | Remove cover over left suspension strut tower. | ||
| 4 | Unclip cover (6). | ||
| 5 | Unscrew bolt (7). | ||
| 6 | Place cover (8) in working area to one side. | ||

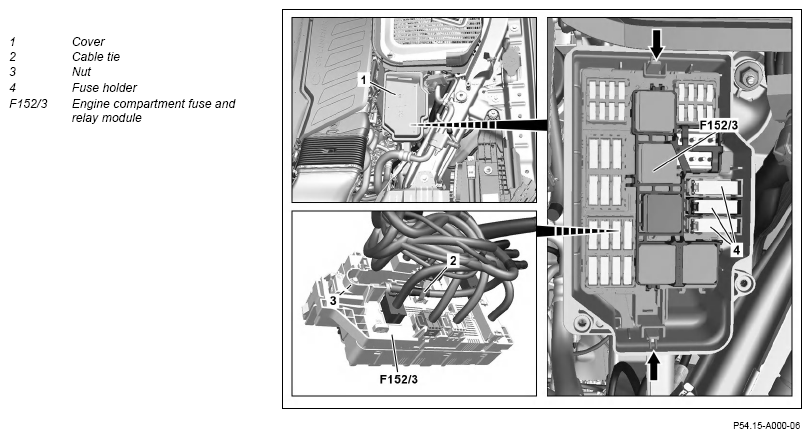

| 7 | Unscrew screws of cap (1) and remove cap (1). | ||
| 8 | Unclip engine compartment fuse and relay module (F152/3) (arrows) and remove. | ||
| 9 | Release and disconnect all electrical connectors on underside of engine compartment fuse and relay module (F152/3). | ||
| 10 | Cut through cable tie (2) on underside of engine compartment fuse and relay module (F152/3). | The number of cable ties (2) varies depending on the vehicle equipment. |
|
| 11 | Unscrew nut (3) of positive line and remove positive line. | *BA54.15-P-1003-01L | |
| 12 | Unclip fuse holders (4) from engine compartment fuse and relay module (F152/3). | ||
| 13 | Install in the reverse order |
FUSE AND RELAY BOX
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA54.15-P-1003-01L | Nut, positive line to fuse and relay module in engine compartment | M6 | Nm | 8 |
| M8 | Nm | 16 | ||
