(Perform Adjustments To Tire Pressure Monitor Control System - AR54.30-P-1000-02RAS)

Model 216, 221.0 /1 With Code (475) Tire Pressure Monitor (Siemens)

Activate tire pressure monitor.

Before activating tire pressure monitor: correct tire pressures of all wheels.

1. Switch on ignition.

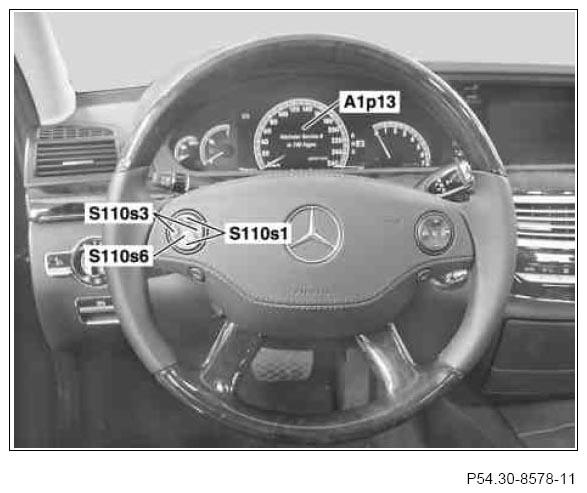

2. Press the system selection button (S110s3) repeatedly until the menu "Service" appears in bold in the multifunction display (A1p13).
3. Use the scroll forward/back button (S110s1) to select "Tire pressure".

   Courtesy of MERCEDES-BENZ USA

4. Press OK button (S110s6).

   The note "Tire pressure display appears after driving for a few minutes" or the current tire pressures are shown in the multifunction display (A1p13).

5. Press lower scroll forward/back button (S110s1)

   "Adopt current pressures as new guidance values?" appears in the multifunction display (A1p13).

6. Press OK button (S110s6).

   The note "Tire pressure monitor reactivated" appears in the multifunction display (A1p13).

7. Switch off ignition.
