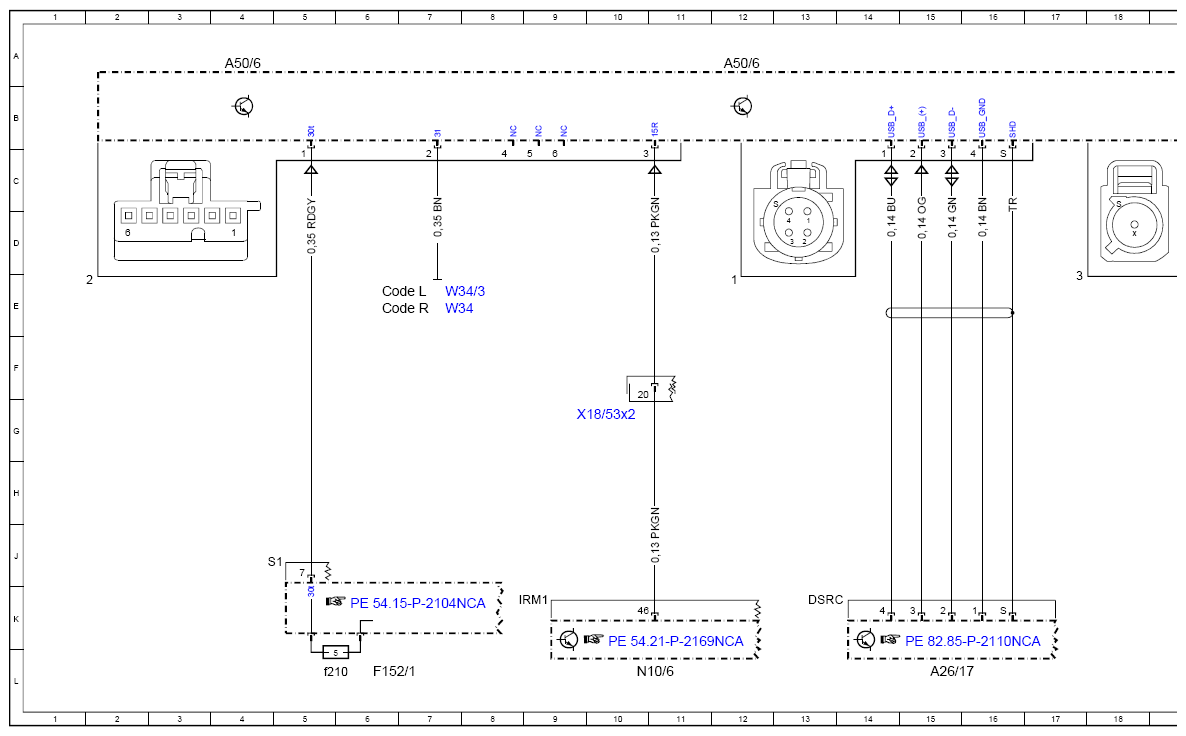

Wiring Diagram For Dedicated Short-Range Communications Control Unit - PE82.88-P-2101-97NCA
Model 167 with code 498 (Japanese version) Control unit A50/6
| Code: | Designation: | Position: |
|---|---|---|

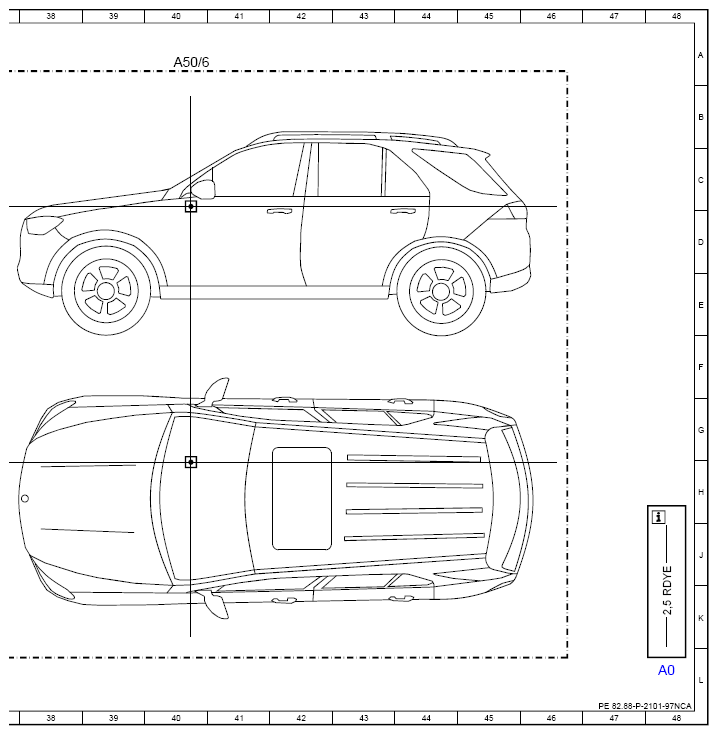

| A0 | Use of wiring diagrams | 48L |

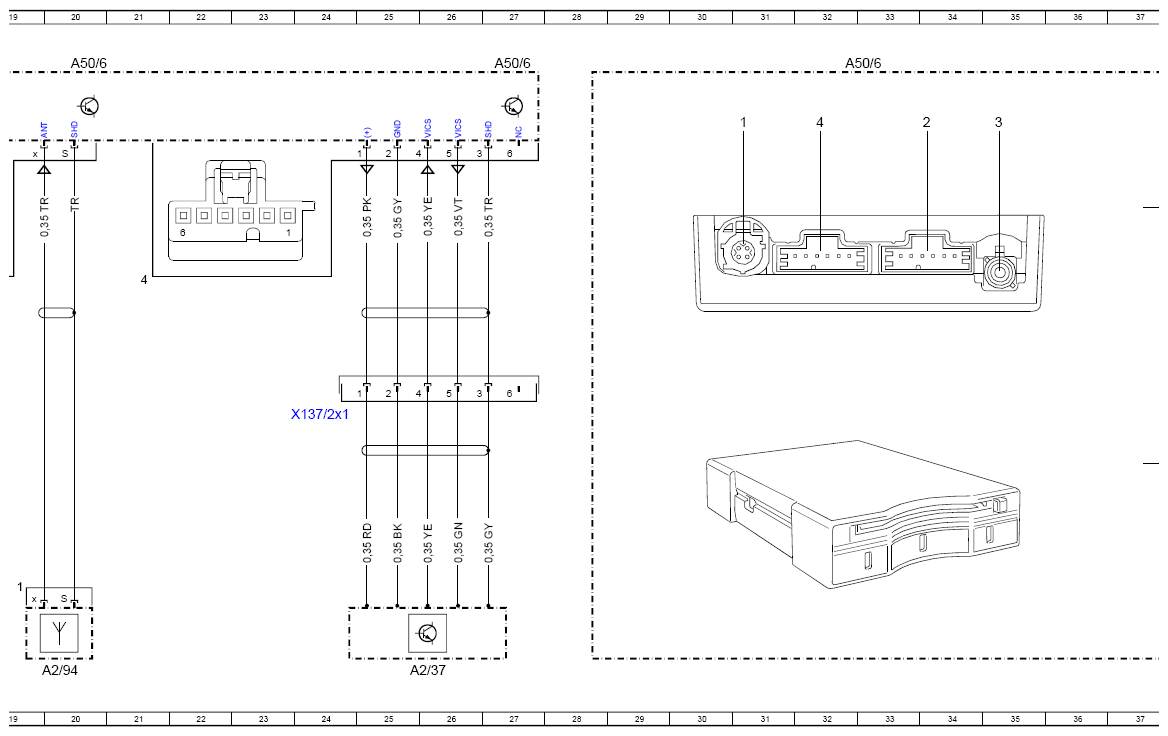

| A2/37 | Vehicle Information and Communication System (VICS) control unit | 25L |
| A2/94 | DSRC antenna | 20L |
| A26/17 | Head unit | 15L |
| A50/6 | Dedicated Short-Range Communications control unit | 4A |
| A50/6 | Dedicated Short-Range Communications control unit | 27A |
| A50/6 | Dedicated Short-Range Communications control unit | 12A |
| A50/6 | Dedicated Short-Range Communications control unit | 20A |
| A50/6 | Dedicated Short-Range Communications control unit | 32A |
| A50/6 | Dedicated Short-Range Communications control unit | 40A |
| Code L | LEFT-HAND DRIVE | 6E |
| Code R | RIGHT-HAND DRIVE | 6E |
| F152/1 | Driver-side fuse and relay module | 6L |
| F152/1f210 | Fuse 210 | 5L |
| N10/6 | Front central control unit | 10L |
| W34 | Left footwell ground point | 7E |
| W34/3 | Right footwell ground point | 7E |
| X137/2x1 | VICS antenna electrical connector | 24G |
| X18/53x2 | Driver cockpit/interior wiring harness electrical connector | 10G |
