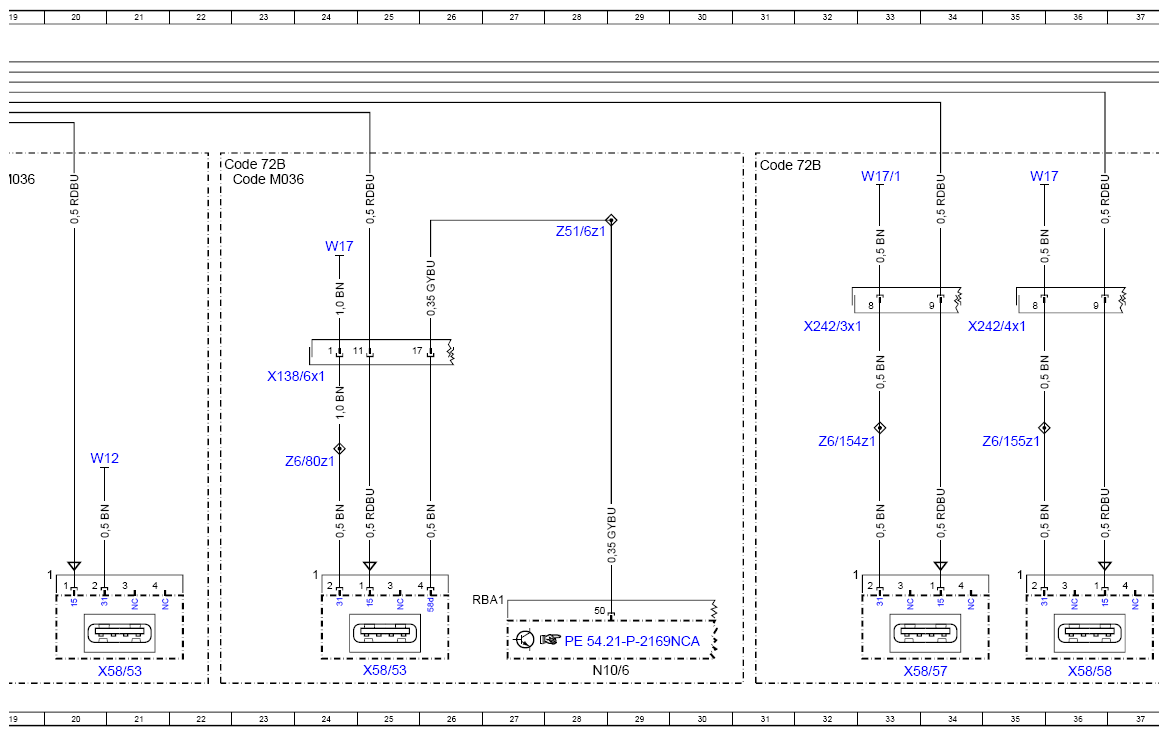

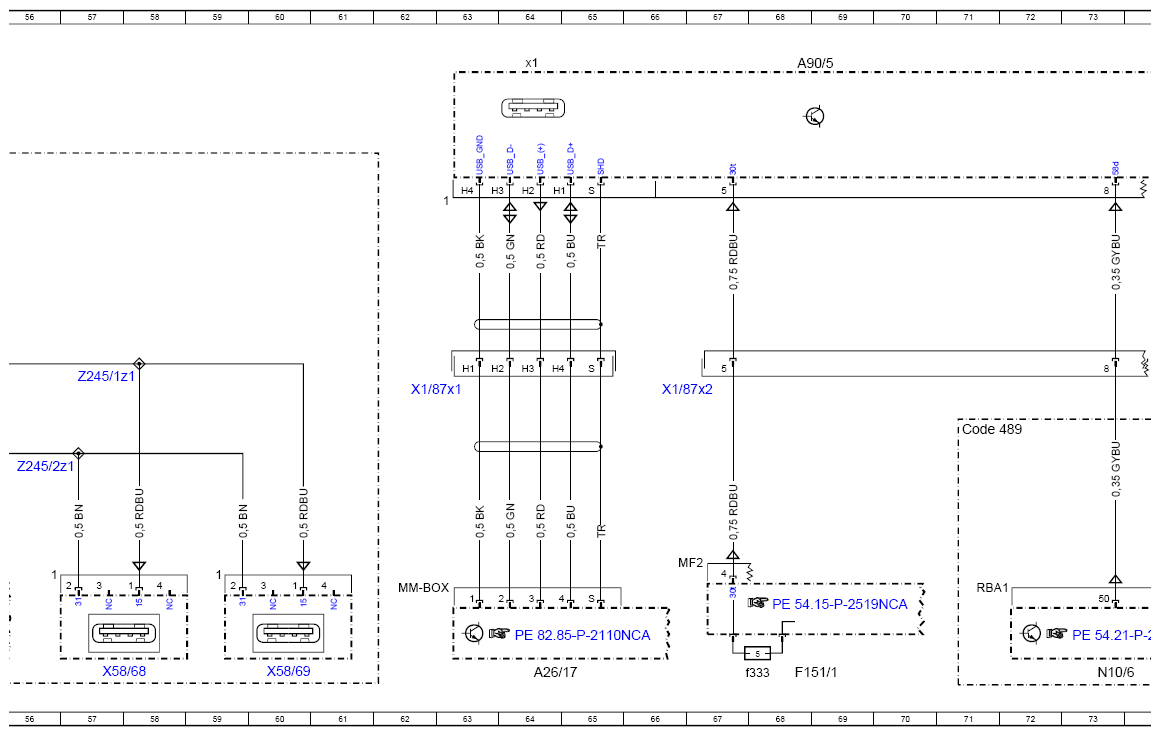

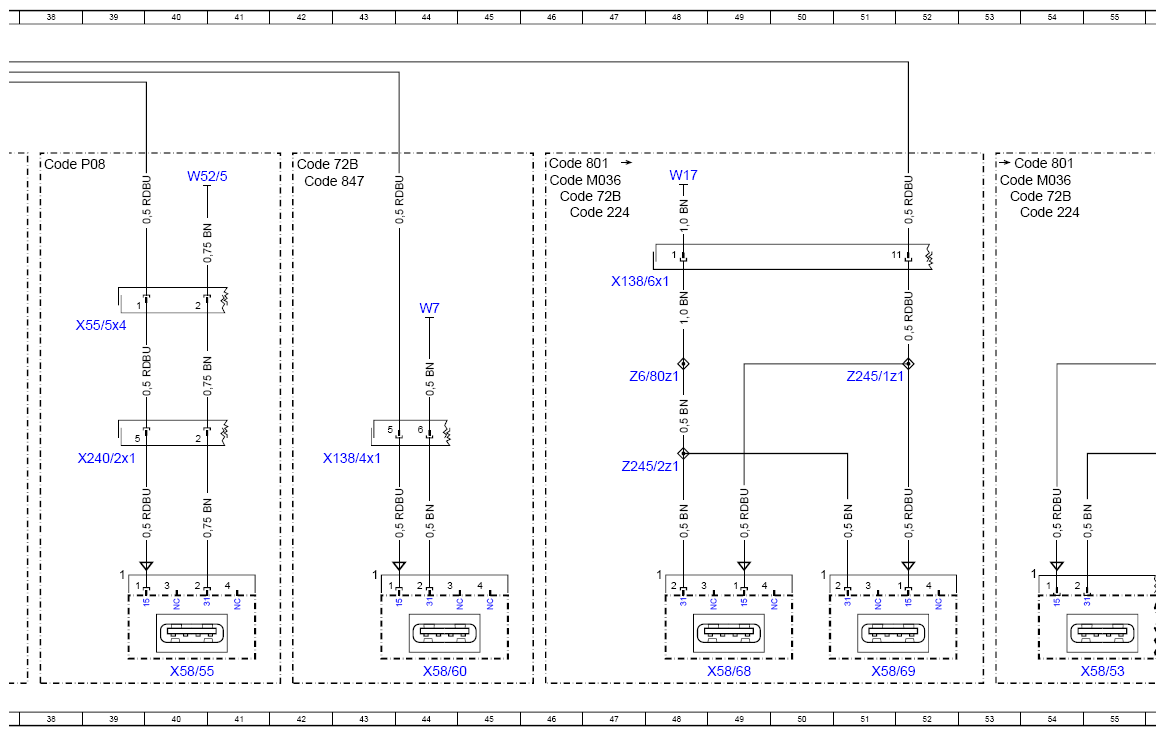

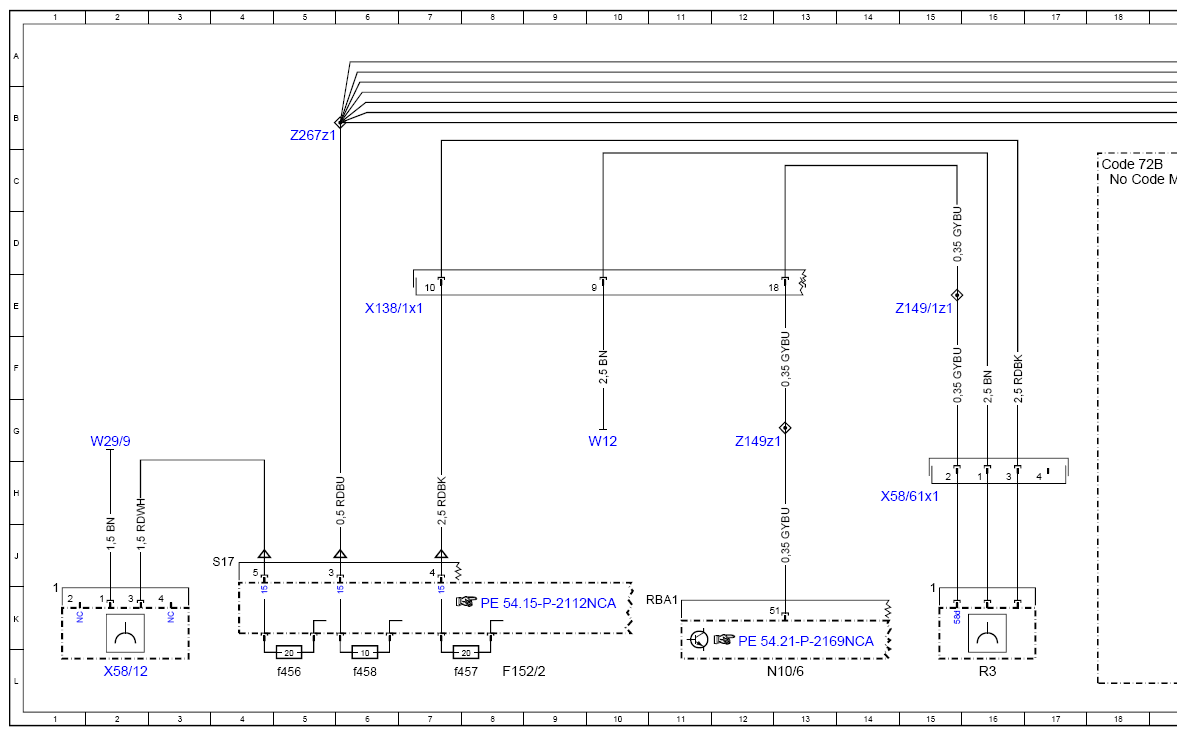

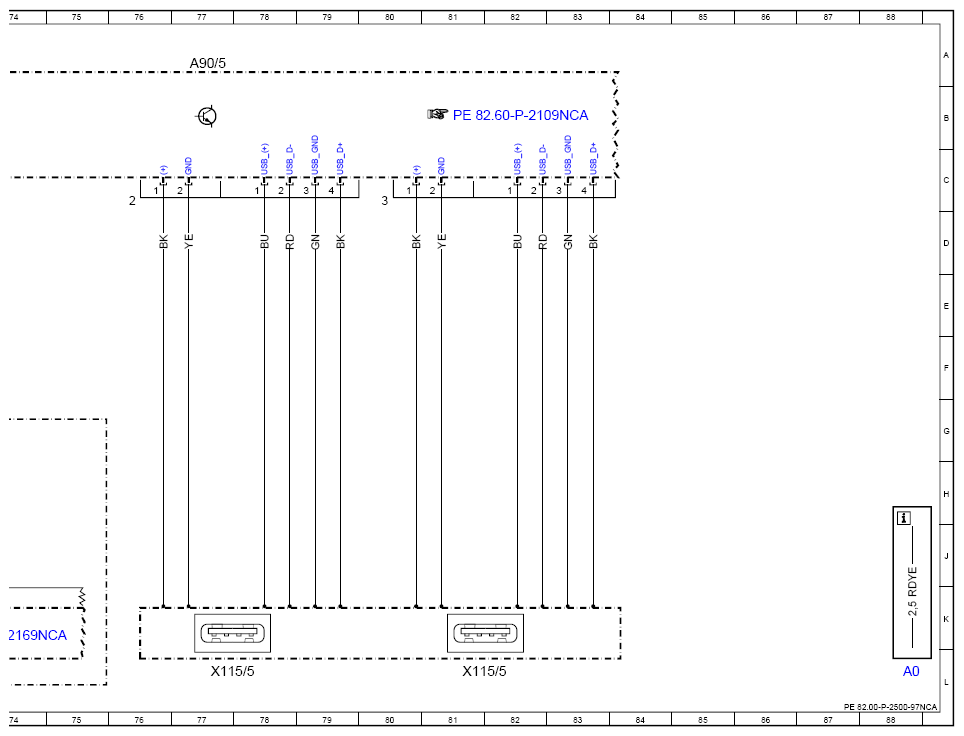

Wiring Diagram For Vehicle Interior Sockets - PE82.00-P-2500-97NCA
Model 167
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A26/17 | Head unit | 64L |
| A90/5 | Multimedia connection unit | 77A |
| A90/5 | Multimedia connection unit | 68A |
| A90/5x1 | 64A | |
| Code 224 | Design rear individual seats | 46D |
| Code 224 | Design rear individual seats | 53D |
| Code 489 | AIRMATIC | 71G |
| Code 72B | Additional USB interfaces | 18C |
| Code 72B | Additional USB interfaces | 31C |
| Code 72B | Additional USB interfaces | 42C |
| Code 72B | Additional USB interfaces | 22C |
| Code 72B | Additional USB interfaces | 46C |
| Code 72B | Additional USB interfaces | 53C |
| Code 801 | YoM 20/1 | 53C |
| Code 847 | 3rd seat row | 42C |
| Code M036 | Maybach version | 18C |
| Code M036 | Maybach version | 23C |
| Code M036 | Maybach version | 46C |
| Code M036 | Maybach version | 53C |
| Code P08 | Rear passenger compartment Comfort Package | 38C |
| Fl51/1 | Passenger-side A-pillar fuse box | 68L |
| F151/1f333 | Fuse 333 | 68L |
| F152/2 | Rear fuse and relay module | 8L |
| F152/2f456 | Fuse 456 | 5L |
| F152/2f457 | Fuse 457 | 7L |
| F152/2f458 | Fuse 458 | 6L |
| N10/6 | Front central control unit | 13L |
| N10/6 | Front central control unit | 28L |
| N10/6 | Front central control unit | 73L |
| R3 | Front cigarette lighter with ashtray illumination | 16L |
| W12 | Ground point (center console) | 20H |
| W12 | Ground point (center console) | 10G |
| W17 | Right rear seat ground point | 35C |
| W17 | Right rear seat ground point | 24D |
| W17 | Right rear seat ground point | 48C |
| W17/1 | Left rear seat ground point | 33C |
| W29/9 | Right D-pillar ground point | 2G |
| W52/5 | Left center longitudinal member ground point | 40C |
| W7 | Right wheel house trunk ground point | 44E |
| X1/87x1 | Multimedia connection unit electrical connector | 62F |
| X1/87x2 | Multimedia connection unit electrical connector | 67F |
| X115/5 | 77L | |
| X115/5 | 81L | |
| X138/1x1 | Front center console electrical connector | 6E |
| X138/4x1 | 3rd seat row center console electrical connector | 43H |
| X138/6x1 | Rear center console electrical connector | 24F |
| X138/6x1 | Rear center console electrical connector | 47E |
| X240/2x1 | 2nd seat row armrest electrical connector | 39H |
| X242/3x1 | Left load compartment electrical connector | 32E |
| X242/4x1 | Right load compartment electrical connector | 35E |
| X55/5x4 | Left rear seat adjustment unit connector block | 39E |
| X58/12 | Luggage compartment socket | 2L |
| X58/53 | Rear passenger compartment center console USB port | 21L |
| X58/53 | Rear passenger compartment center console USB port | 25L |
| X58/53 | Rear passenger compartment center console USB port | 55L |
| X58/55 | 2nd seat row center USB port | 40L |
| X58/57 | 3rd seat row left USB port | 33L |
| X58/58 | 3rd seat row right USB port | 36L |
| X58/60 | 3rd seat row center USB port | 44L |
| X58/61x1 | Cigarette lighter electrical connector | 15H |
| X58/68 | Left center console 2nd seat row USB port | 49L |
| X58/68 | Left center console 2nd seat row USB port | 57L |
| X58/69 | Right center console 2nd seat row USB port | 51L |
| X58/69 | Right center console 2nd seat row USB port | 60L |
| Z149/1z1 | Front center console switch and controls illumination end sleeve | 15E |
| Z149z1 | Interior wiring harness switch and controls illumination end sleeve | 12G |
| Z245/1z1 | USB port power supply end sleeve | 51F |
| Z245/1z1 | USB port power supply end sleeve | 57F |
| Z245/2z1 | USB port ground connection end sleeve | 48H |
| Z245/2z1 | USB port ground connection end sleeve | 56H |
| Z267z1 | Circuit 30t power supply connector sleeve | 5B |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 28D |
| Z6/154z1 | Left engine ground connection connector sleeve | 32G |
| Z6/155z1 | Ground connection connector sleeve | 35G |
| Z6/80z1 | Rear center console circuit 31 end sleeve | 24H |
| Z6/80z1 | Rear center console circuit 31 end sleeve | 48F |
