Wiring Diagram For Driver-Side Fuse And Relay Module - PE54.15-P-2104-97NCA
Model 167
Module F152/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| A32 | AC housing | 8L |
| A32 | AC housing | 9L |
| A40/12 | Head-up display | 19L |
| A40/16 | Head unit/instrument cluster display cluster | 21L |
| A40/5 | Left rear display | 18L |
| A40/6 | Right rear display | 18L |
| A50/6 | Dedicated Short-Range Communications control unit | 25L |
| Code 463 | Head-up display | 19J |
| Code 498 | Japan version | 25J |
| Code 580 | Air conditioning | 8J |
| Code 580 | Air conditioning | 23J |
| Code 580 | Air conditioning | 30J |
| Code 581 | Automatic air conditioning | 9J |
| Code 581 | Automatic air conditioning | 24J |
| Code 581 | Automatic air conditioning | 31J |
| Code 864 | Rear entertainment system | 18J |
| Code 866 | Pre-installation for Entertainment system and Comfort | 18J |
| Code L | LEFT-HAND DRIVE | 54J |
| Code P21 | Air quality package | 17J |
| Code R | RIGHT-HAND DRIVE | 54G |

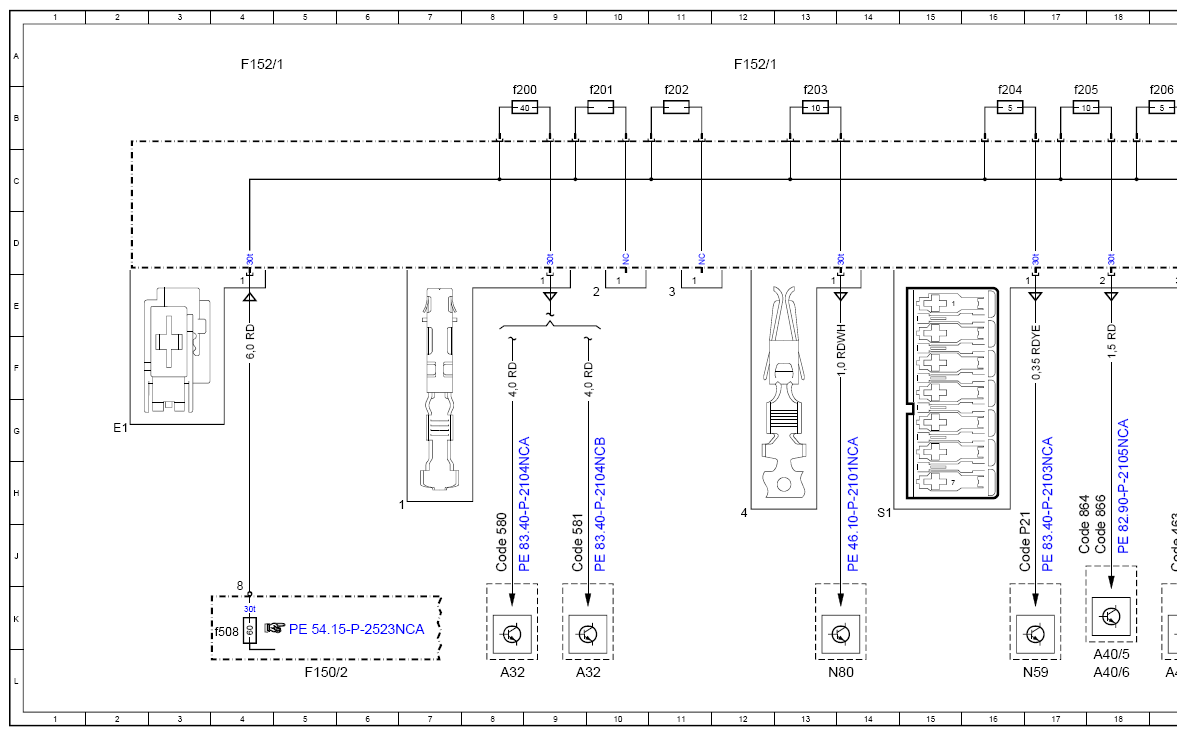

| F150/2 | Vehicle interior pre-fuse box | 5L |
| F150/2f508 | Electrical fuse 508 | 4K |

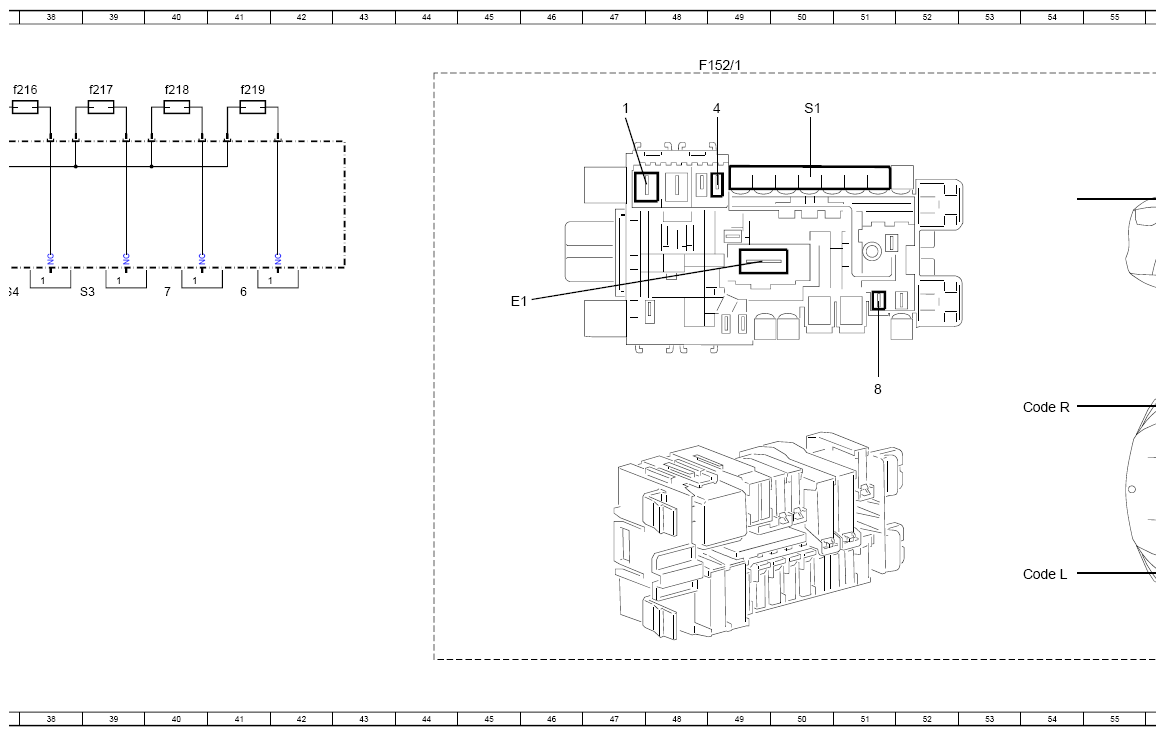

| F152/1 | Driver-side fuse and relay module | 4A |
| F152/1 | Driver-side fuse and relay module | 12A |
| F152/1 | Driver-side fuse and relay module | 20A |
| F152/1 | Driver-side fuse and relay module | 28A |
| F152/1 | Driver-side fuse and relay module | 36A |
| F152/1 | Driver-side fuse and relay module | 49A |

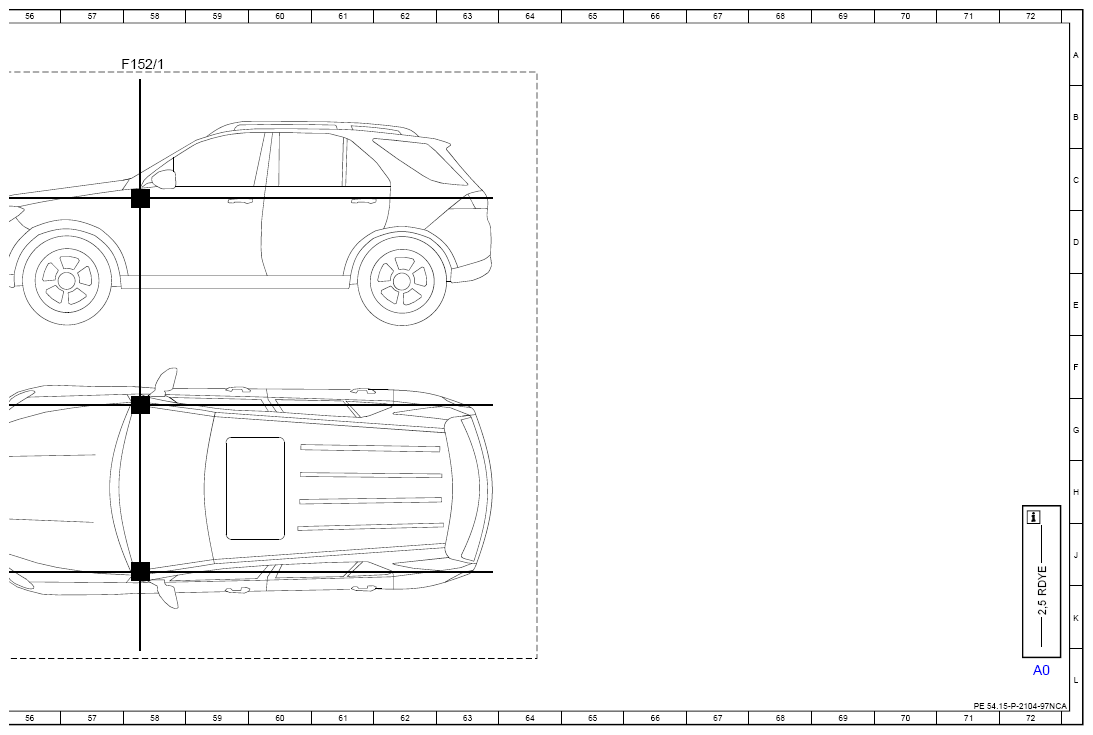

| F152/1 | Driver-side fuse and relay module | 58A |
| F152/1f200 | Fuse 200 | 8B |
| F152/1f201 | Fuse 201 | 10B |
| F152/1f202 | Fuse 202 | 11B |
| F152/1f203 | Fuse 203 | 13B |
| F152/1f204 | Fuse 204 | 16B |
| F152/1f205 | Fuse 205 | 17B |
| F152/1f206 | Fuse 206 | 19B |

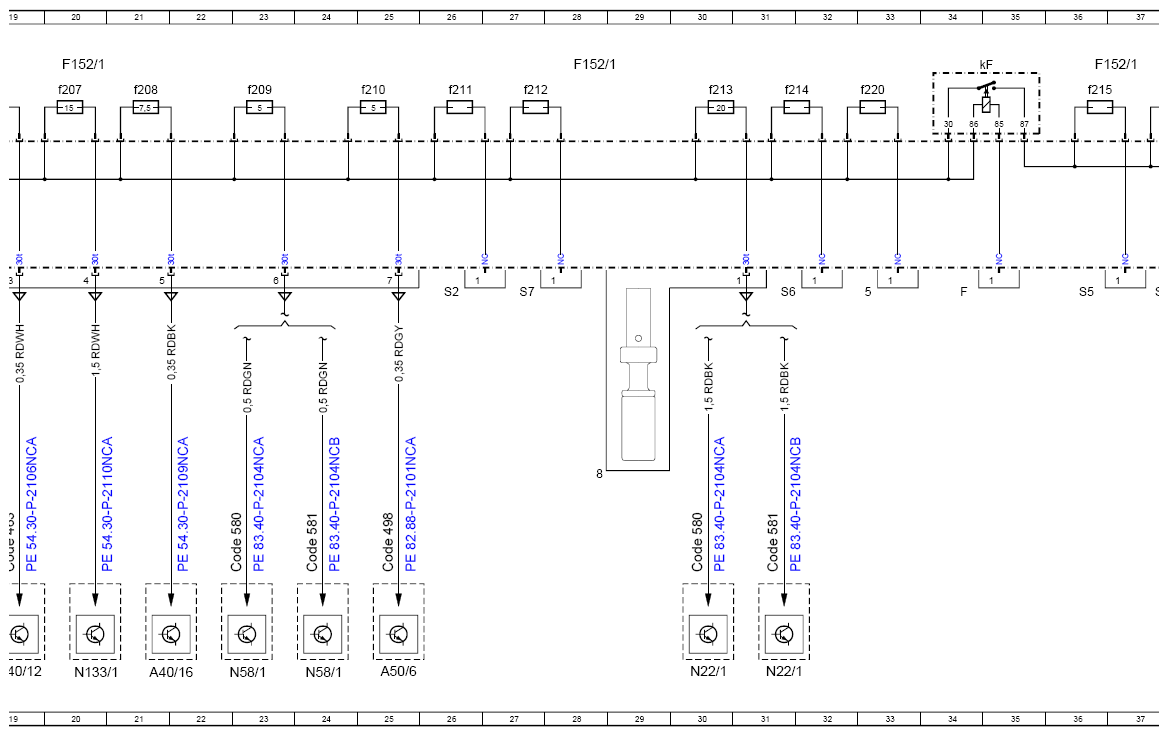

| F152/1f207 | Fuse 207 | 20B |
| F152/1f208 | Fuse 208 | 21B |
| F152/1f209 | Fuse 209 | 23B |
| F152/1f210 | Fuse 210 | 25B |
| F152/1f211 | Fuse 211 | 26B |
| F152/1f212 | Fuse 212 | 27B |
| F152/1f213 | Fuse 213 | 30B |
| F152/1f214 | Fuse 214 | 31B |
| F152/1f215 | Fuse 215 | 36B |
| F152/1f216 | Fuse 216 | 37B |
| F152/1f217 | Fuse 217 | 39B |
| F152/1f218 | Fuse 218 | 40B |
| F152/1f219 | Fuse 219 | 41B |
| F152/1f220 | Fuse 220 | 33B |
| F152/1kF | Backup relay | 35A |
| N133/1 | Instrument cluster control unit | 20L |
| N22/1 | Climate control control unit | 31L |
| N22/1 | Climate control control unit | 30L |
| N58/1 | Climate control operating unit | 23L |
| N58/1 | Climate control operating unit | 24L |
| N59 | Perfume atomizer generator | 17L |
| N80 | Steering column module control unit | 13L |
