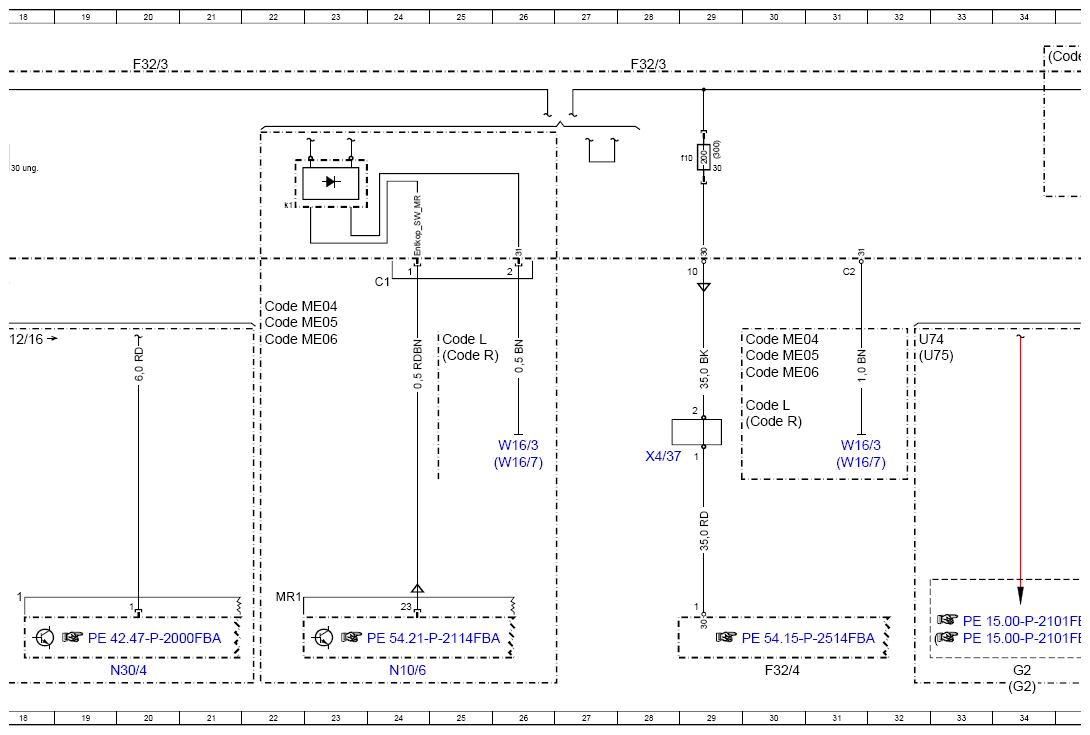

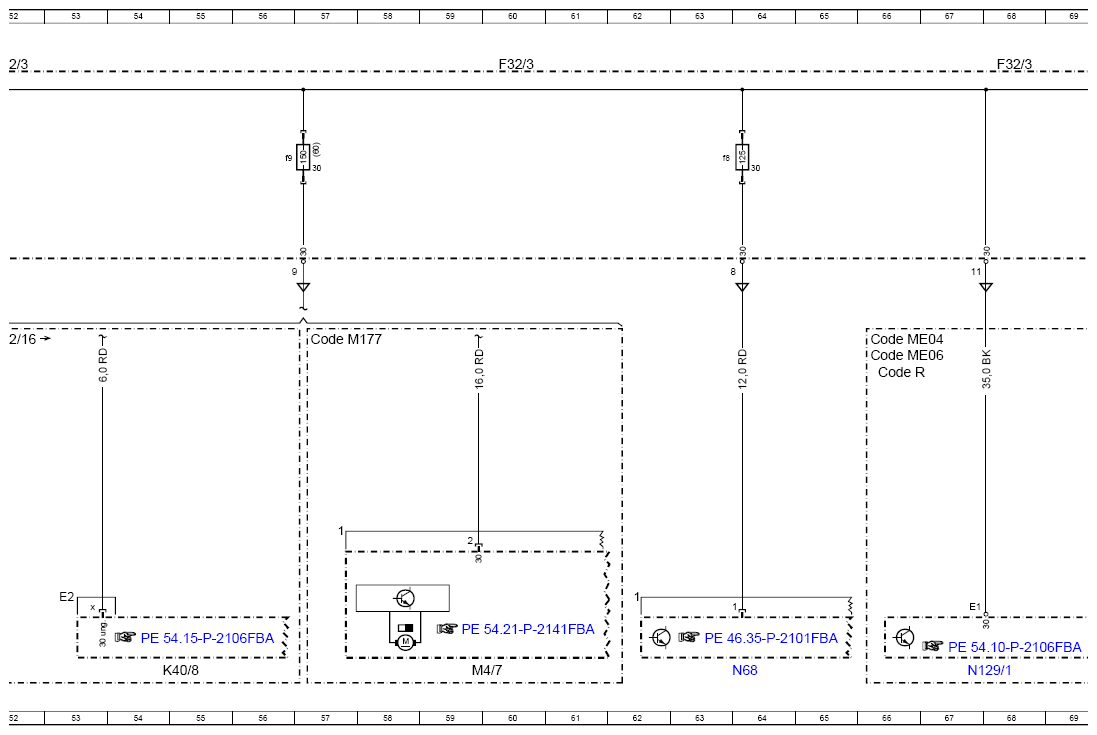

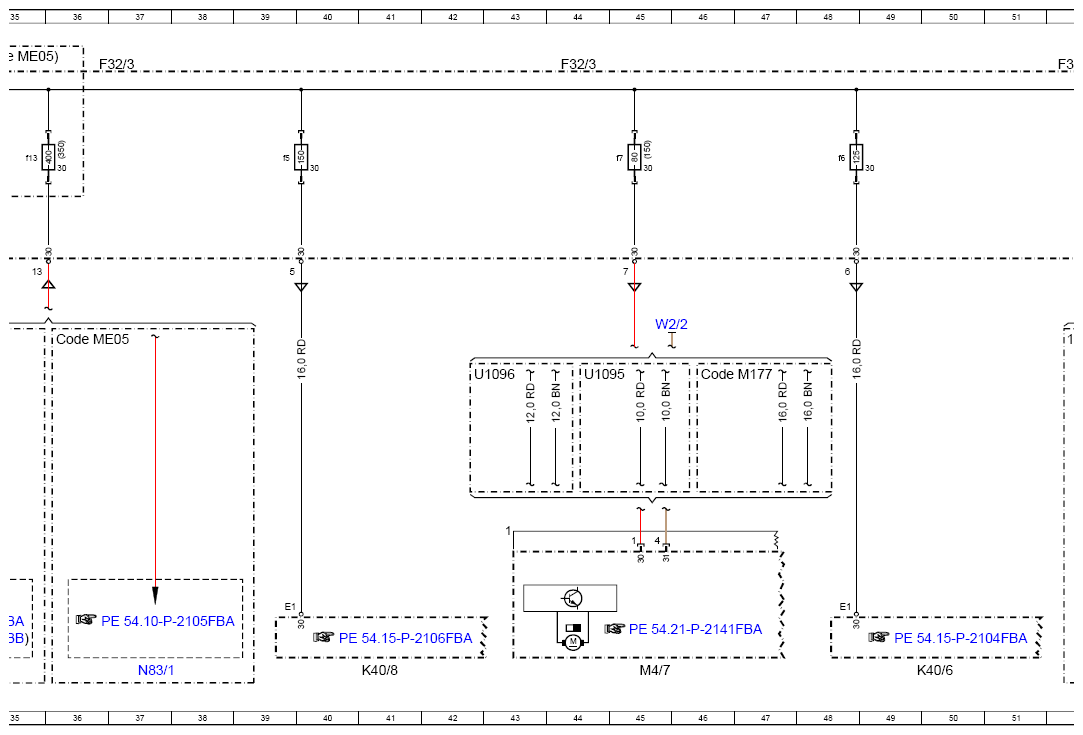

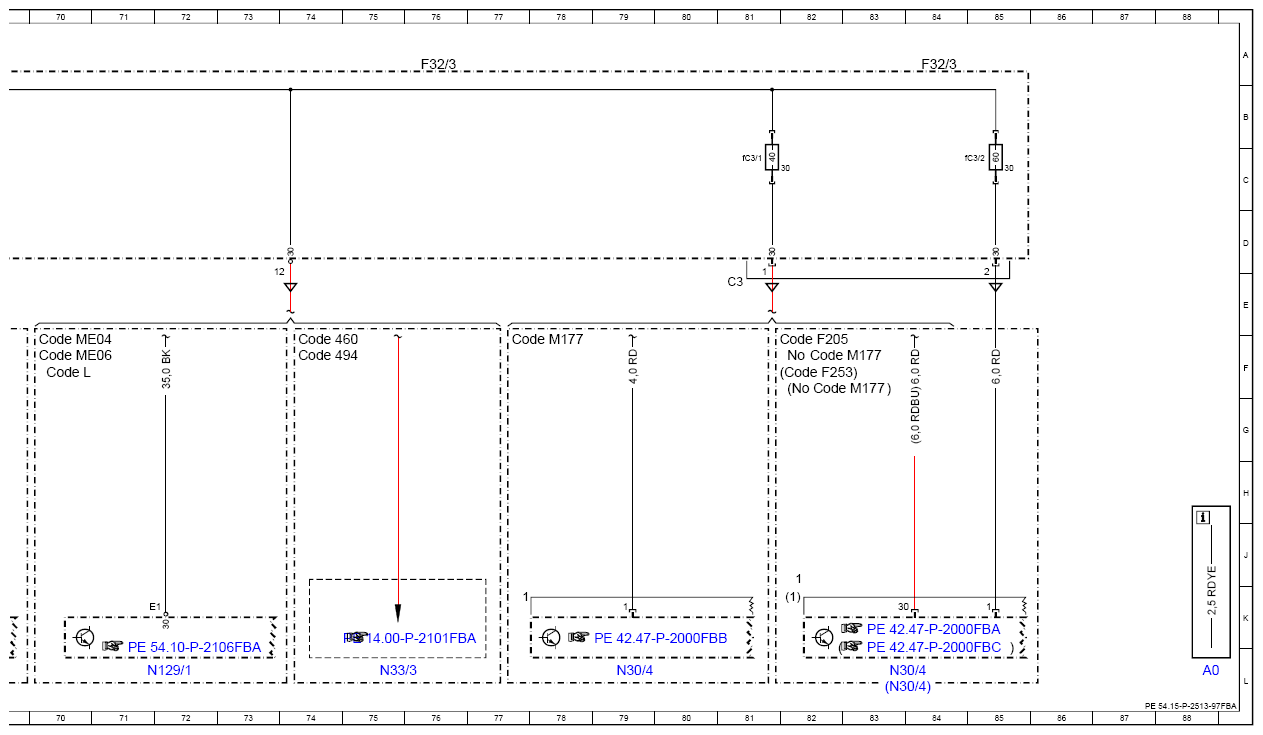

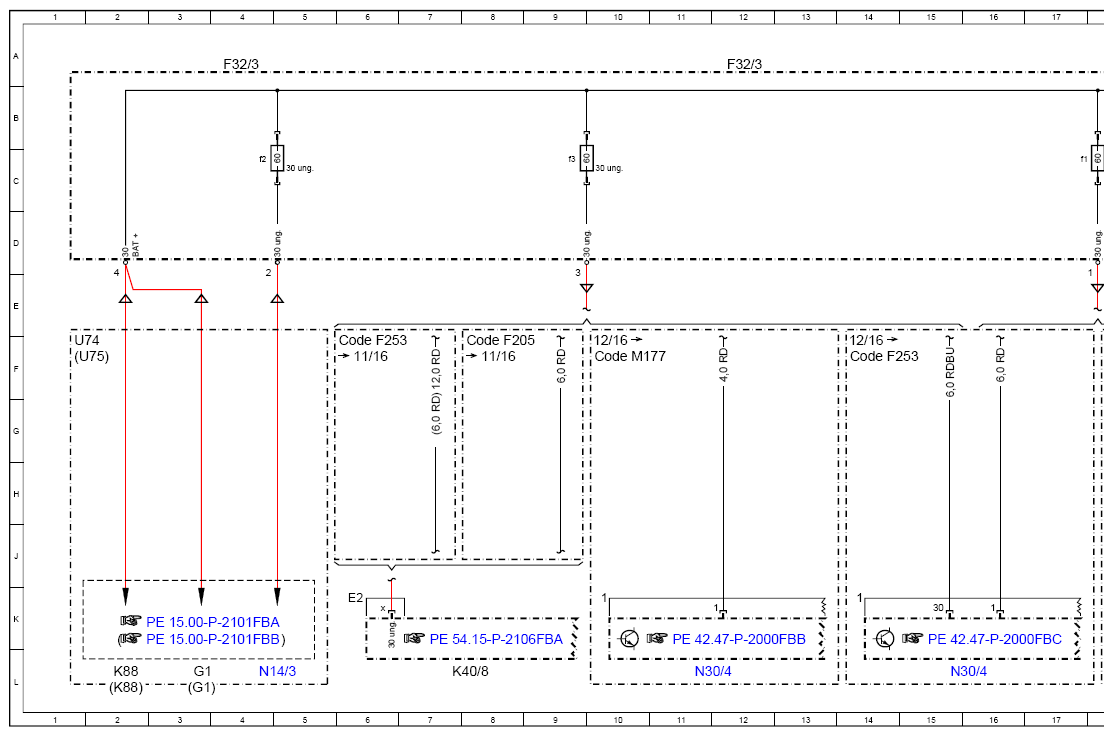

Wiring Diagram, Engine Compartment Prefuse Box (F32/3) - PE54.15-P-2513-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| Code 460 | Canada version | 74F |
| Code 494 | USA version | 74F |
| Code F205 | MODEL SERIES 205 | 8F |
| Code F205 | MODEL SERIES 205 | 81F |
| Code F253 | MODEL SERIES 253 | 6F |
| Code F253 | MODEL SERIES 253 | 14F |
| Code F253 | MODEL SERIES 253 | 81F |
| Code L | LEFT-HAND DRIVE | 30G |
| Code L | LEFT-HAND DRIVE | 25F |
| Code L | LEFT-HAND DRIVE | 70F |
| Code M177 | SPARK-IGNITION ENGINE M177 | 10F |
| Code M177 | SPARK-IGNITION ENGINE M177 | 46F |
| Code M177 | SPARK-IGNITION ENGINE M177 | 82F |
| Code M177 | SPARK-IGNITION ENGINE M177 | 57F |
| Code M177 | SPARK-IGNITION ENGINE M177 | 77F |
| Code M177 | SPARK-IGNITION ENGINE M177 | 82F |
| Code ME04 | Hybrid drive 20 KW VARIANT | 22E |
| Code ME04 | Hybrid drive 20 KW VARIANT | 30F |
| Code ME04 | Hybrid drive 20 KW VARIANT | 66F |
| Code ME04 | Hybrid drive 20 KW VARIANT | 70F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 22E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 30F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 36F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 34A |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 30F |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 22F |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 66F |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 70F |
| Code R | RIGHT-HAND DRIVE | 30G |
| Code R | RIGHT-HAND DRIVE | 25F |
| Code R | RIGHT-HAND DRIVE | 66F |
| F32/3 | Engine compartment prefuse box | 4A |
| F32/3 | Engine compartment prefuse box | 12A |
| F32/3 | Engine compartment prefuse box | 20A |
| F32/3 | Engine compartment prefuse box | 28A |
| F32/3 | Engine compartment prefuse box | 36A |
| F32/3 | Engine compartment prefuse box | 44A |
| F32/3 | Engine compartment prefuse box | 52A |
| F32/3 | Engine compartment prefuse box | 60A |
| F32/3 | Engine compartment prefuse box | 68A |
| F32/3 | Engine compartment prefuse box | 76A |
| F32/3 | Engine compartment prefuse box | 84A |
| F32/3f1 | Fuse 1 | 17C |
| F32/3f10 | Fuse 10 | 29C |
| F32/3f13 | Fuse 13 | 35C |
| F32/3f2 | Fuse 2 | 4C |
| F32/3f3 | Fuse 3 | 9C |
| F32/3f5 | Fuse 5 | 39C |
| F32/3f6 | Fuse 6 | 48C |
| F32/3f7 | Fuse 7 | 45C |
| F32/3f8 | Fuse 8 | 63C |
| F32/3f9 | Fuse 9 | 56C |
| F32/3fC3/1 | Electrical fuse C3/1 | 81B |
| F32/3fC3/2 | Electrical fuse C3/2 | 85B |
| F32/3k1 | Decoupling relay | 22C |
| F32/4 | Vehicle interior prefuse box | 30L |
| G1 | On-board electrical system battery | 3L |
| G1 | On-board electrical system battery | 3L |
| G2 | Alternator | 34L |
| G2 | Alternator | 34L |
| K40/6 | Driver-side fuse and relay module | 50L |
| K40/8 | Engine fuse and relay module | 8L |
| K40/8 | Engine fuse and relay module | 41L |
| K40/8 | Engine fuse and relay module | 55L |
| K88 | Pyrotechnical separator | 2L |
| K88 | Pyrotechnical separator | 2L |
| M4/7 | Fan motor | 45L |
| M4/7 | Fan motor | 59L |
| N10/6 | Front SAM control unit | 24L |
| N129/1 | Power electronics control unit | 72L |
| N129/1 | Power electronics control unit | 67L |
| N14/3 | Glow output stage | 4L |
| N30/4 | Electronic Stability Program control unit | 15L |
| N30/4 | Electronic Stability Program control unit | 11L |
| N30/4 | Electronic Stability Program control unit | 20L |
| N30/4 | Electronic Stability Program control unit | 79L |
| N30/4 | Electronic Stability Program control unit | 83L |
| N30/4 | Electronic Stability Program control unit | 83L |
| N33/3 | Catalytic converter heater control unit | 75L |
| N68 | Electrical power steering control unit | 64L |
| N83/1 | DC/DC converter control unit | 37L |
| U1095 | Valid for fan motor 600W | 44F |
| U1096 | Valid for fan motor 850W | 42F |
| U74 | Valid for diesel engines | 1F |
| U74 | Valid for diesel engines | 32F |
| U75 | Valid for gasoline engines | 1F |
| U75 | Valid for gasoline engines | 32F |
| W16/3 | Left major assembly compartment ground point | 26G |
| W16/3 | Left major assembly compartment ground point | 31G |
| W16/7 | Right major assembly compartment electronics ground point | 26H |
| W16/7 | Right major assembly compartment electronics ground point | 31H |
| W2/2 | Left front ground point | 45E |
| X4/37 | Terminal block (circuit 30) | 28H |
