Prepare Firewall Half For Installation - Ar62.25-P-1110-02LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.
- Grind mating surfaces on firewall (3) down to bare metal in crosshatched areas.
- Grind mating surfaces on firewall (3) down to bare metal in crosshatched areas.
- Remove grinding dust.
Observe pretreatment of bonding surfaces.
- Model 205.0/2
with code 494 (US version)
Model 205.3/4

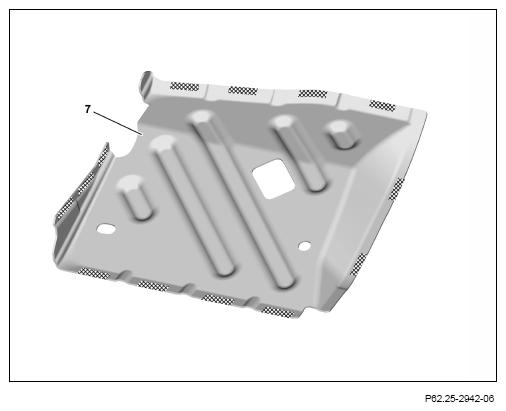

Grind mating surfaces on reinforcement (7) down to bare metal in crosshatched areas.
- Model 205.0/2
with code 494 (US version)
Model 205.3/4
Remove grinding dust.
Shown on model 205.4

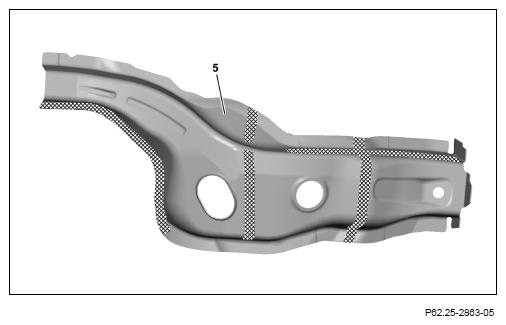

- Grind mating surfaces on firewall crossmember (5) down to bare metal in crosshatched areas.

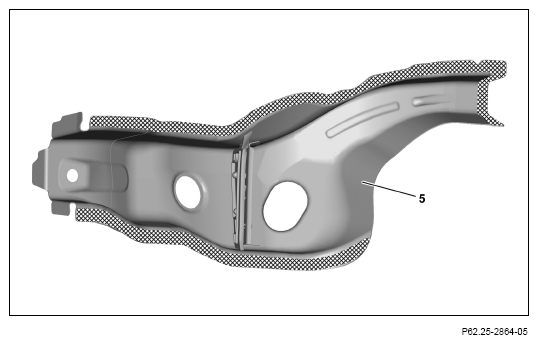

- Grind mating surfaces on firewall crossmember (5) down to bare metal in crosshatched areas.
- Remove grinding dust.

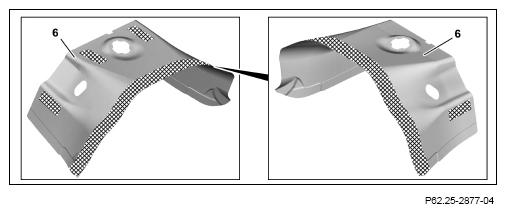

- Grind mating surfaces on connecting panel (6) down to bare metal in crosshatched areas.
- Remove grinding dust.
- Grind mating surfaces on pedal assembly cup (4) down to bare metal in crosshatched areas.
- Remove grinding dust.
Pedal assembly cup (4), inside
