Install And Weld In Longitudinal Member Front Section - Ar62.20-P-1260-07LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 238
Model 253
Model 293
The next steps are shown on the left side of the vehicle on model 205 and must be performed in the same way on the right side in the event of damage.
- Install rear longitudinal member front section (1), fit with straightening tools and fix in place.

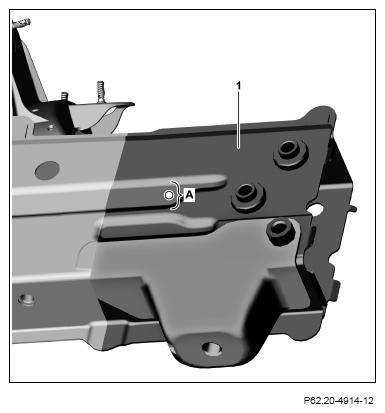

- Drill rivet hole on longitudinal member front section (1) with Ø 6.7 mm bit (area A).
- Remove straightening tools and longitudinal member front section (1).
- Deburr rivet hole on longitudinal member front section (1) and body on both sides.
- Remove drilling chips.
- Coat insides of riveted joint with zinc dust paint.
- Install longitudinal member (1) with straightening tools and fix in place.

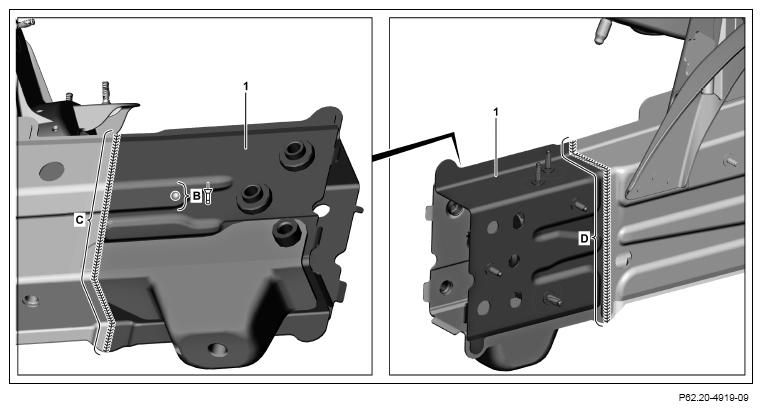

- Rivet longitudinal member front section (1) with Ø 6.5x12.5 rivets (area B).
- Longitudinal member front section (1)
(area C and D).
Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.
