Remove/Install Soft Top Tension Cable - AR77.33-P-1005LWR
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4

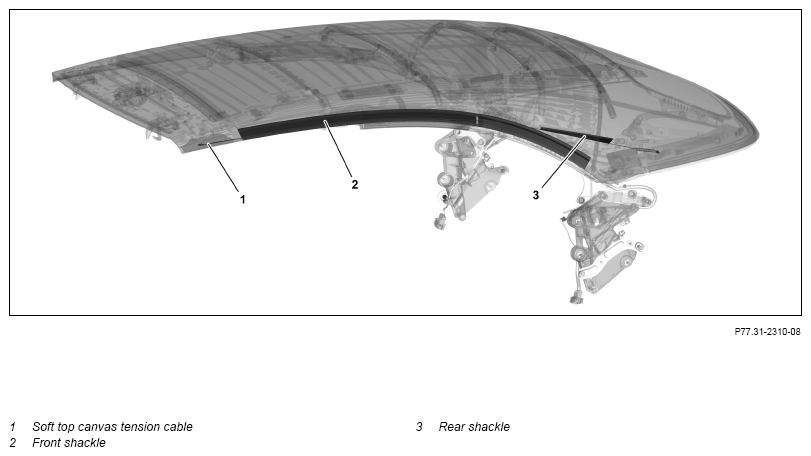

Shown on left side of vehicle
Shown on left side of vehicle
Shown on left side of vehicle
| Risk Of Injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk Of Injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/Install | |||
| 1 | Remove paneling from soft top at front | AR68.30-P-4320LWR | |
| 2 | Move soft top to repair position R3 | Move soft top to repair position R4. |
AR77.30-P-1030LWR |

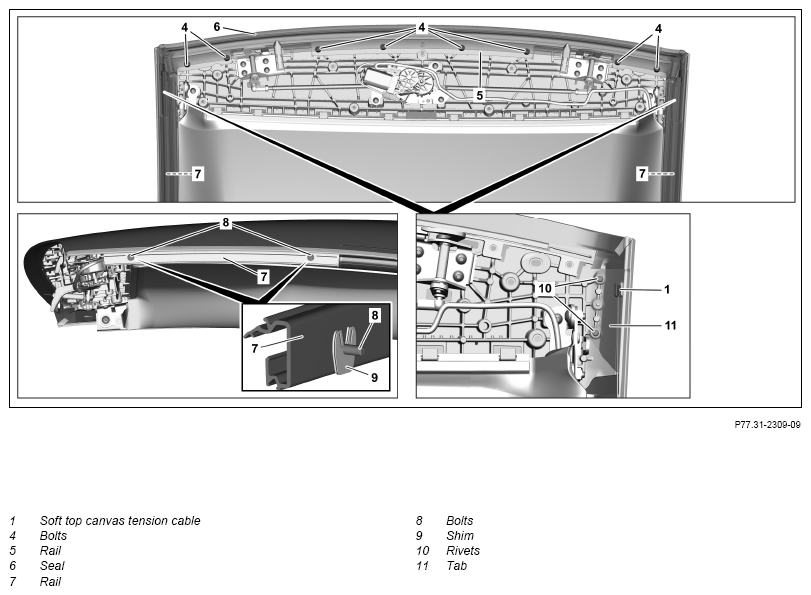

| 3 | Mark installation position of bolts (4) on strip (5) | ||
| 4 | Unscrew bolts (4) from strip (5) | Align strip (5) according to markings. |
|
| 5 | Remove seal (6) on outer left and right on rails (7) and remove together with strip (5) | ||
| 6 | Mark installation position of bolts (8) on rail (7) | ||
| 7 | Unscrew bolts (8) from rail (7) and remove rail (7) | Observe number of spacer washers (9) for each bolt (8). Align rail (7) according to markings. |
|
| 8 | Knock off rivets (10) and remove rivet residues | ||
| 9 | Loosen shackle (11) | ||
| 10 | Remove adhesive strips above ends of cable on soft top canvas tension cable (1) and unhook cable ends | ||

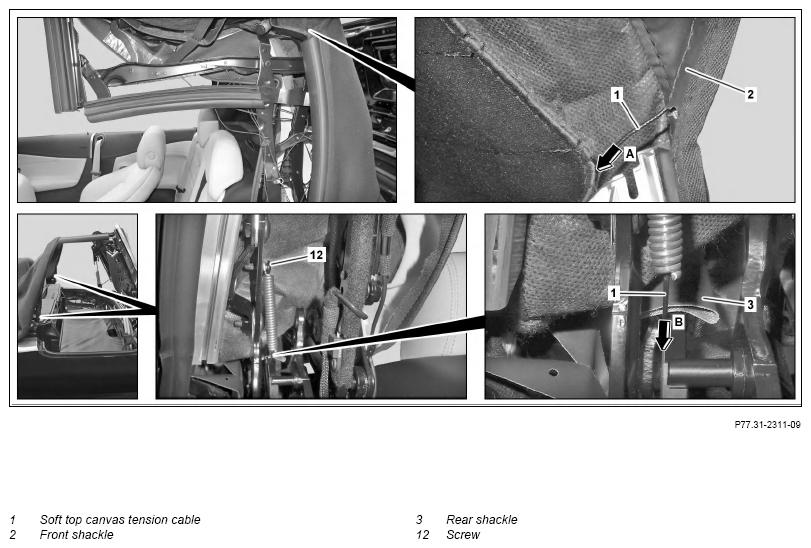

| 11 | Pull soft top canvas tension cable (1) of front shackle (2) toward rear (arrow A) | ||
| 12 | Move soft top to repair position R2 | Move soft top to repair position R3. |
AR77.30-P-1030LWR |
| 13 | Unscrew screw/bolt (12) | ||
| 14 | Pull soft top canvas tension cable (1) out of rear shackle (3) toward rear (arrow B) | ||
| 15 | Install in the reverse order |
