Remove/Install Soft Top Compartment Lid "Locked" Limit Switch - AR77.39-P-3711LWR
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
Model 238.4
Shown on left side of vehicle

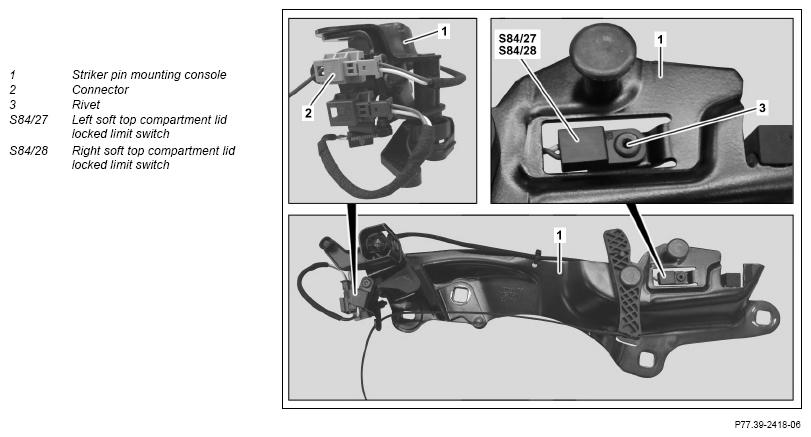

Fig 1: Soft Top Compartment Lid "Locked" Limit Switch Components Location - Model 205.4 (Shown On Left Side Of Vehicle)
| Remove/Install | |||
| 1 | Remove left or right striker pin mounting console (1) for soft top compartment lid | AR77.30-P-3978LWR | |
| 2 | Unclip connector (2) from striker pin mounting console (1) and expose wiring harness | ||
| 3 | Knock rivet (3) off of striker pin mounting console (1) and remove rivet residues | ||
| 4 | Remove wiring harness with left soft top compartment locked limit switch (S84/27) or right soft top compartment locked limit switch (S84/28) | ||
| 5 | Install in the reverse order |
