Lift Out/Insert Soft Top - AR77.30-P-1002-04LWR

WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.4

Model 217.4

Model 238.4

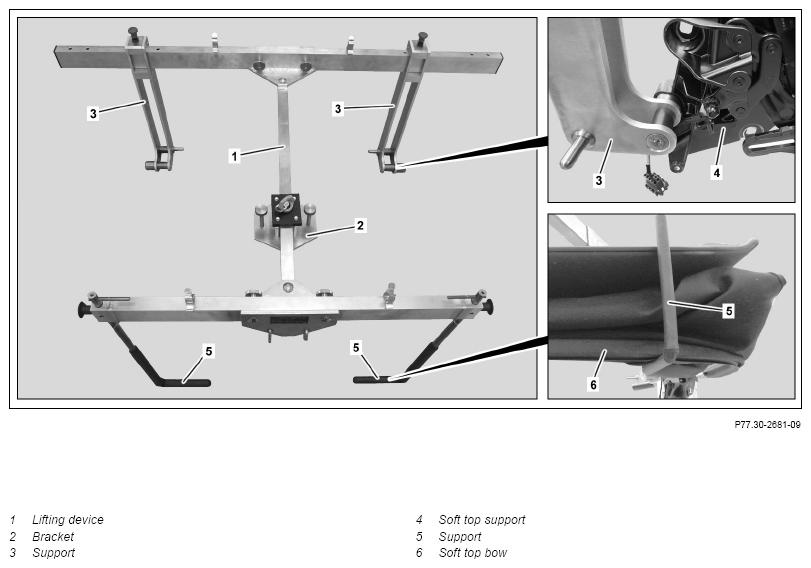

Fig 1: Identifying Lifting Device (217 589 00 62 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Assemble lifting device (1) as shown and adjust bracket (2) to corresponding marking.
Model 205.4, 238.4

Install mounts (3) for soft top support (4) on lifting device (1) so that the thicker bolts point toward outside.

Model 217.4

Install mounts (3) for soft top support (4) on lifting device (1) so that the thinner bolts point toward outside.
Fasten mounts (3) on left and right soft top bearing (4) and arrest in lifting device (1).
Helper required.
Fasten mounts (5) on left and right on soft top bow (6) and arrest in lifting device (1).
Helper required.
Carefully lift out soft top with lifting device (1).
Two helpers are required.
Insert soft top in reverse order.
