Remove/Install Roof Frame Trim Piece - AR88.85-P-0001LWR
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.4
except code 288 (Draft Stop For Convertible)
Model 238.4
except code 288 (Draft Stop For Convertible)

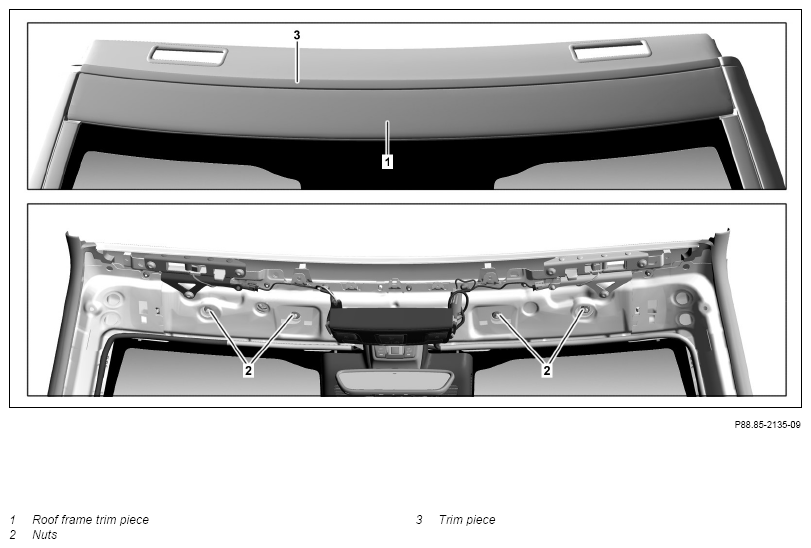

Shown on Model 205.4
| Remove | |||
| 1 | Remove A-pillar paneling | AR68.30-P-4050LW | |
| 2 | Unscrew nuts (2) on roof frame trim piece (1) | ||
| 3 | Remove roof frame trim piece (1) | ||
| Install | |||
| 4 | Glue trim piece (3) to new roof frame trim piece (1) | When replacing roof frame trim piece (1). | |
| 5 | Check seals o bolt on roof frame trim piece (1) | When reusing removed roof frame trim piece (1). If damaged: ↓ Replace seals. |
|
| 6 | Position roof frame trim piece (1), center and tighten nuts (2) | Ensure that seal is seated correctly between roof frame trim piece (1) and windshield. |
|
| 7 | Install A-pillar paneling | AR68.30-P-4050LW |
