Remove/Install Paneling On B-Pillar - AR68.30-P-4700CLW
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.3
MODIFICATION NOTES
| 09.05.2016 | Screw, front belt end fitting | BA91.40-P-1003-01U |

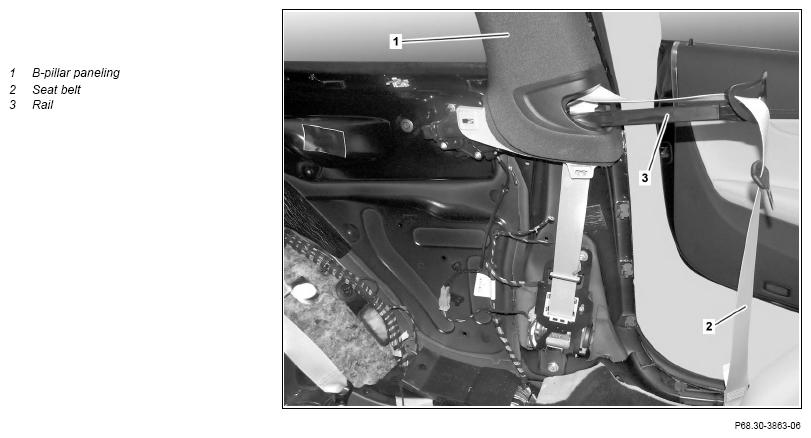

Shown on left side of vehicle
| Remove/install | |||
| 1 | Move left and right front seat toward front to end position | ||
| 2 | Remove rear passenger compartment side trim panel | AR68.30-P-4780CLW | |
| 3 | Remove belt end fitting from front seat belt (2) | *BA91.40-P-1003-01U | |
| 4 | Completely pull out rail (3) and extend seat belt (2) | Uniformly pull out rail (3). Otherwise the belt extender can be damaged. |
|
| 5 | Unclip B-pillar paneling (1) and remove | ||
| 6 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.3 | ||
|---|---|---|---|---|
| BA91.40-P-1003-01U | Bolt, front belt end fitting | Nm | 30 | |
| M10x12 | Nm | - | ||
| M10x16 | Nm | - | ||
