Remove/Install Front End Crossmember - AR62.30-P-2300LW
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213 with engine 177
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Open engine hood and position upright. | ||

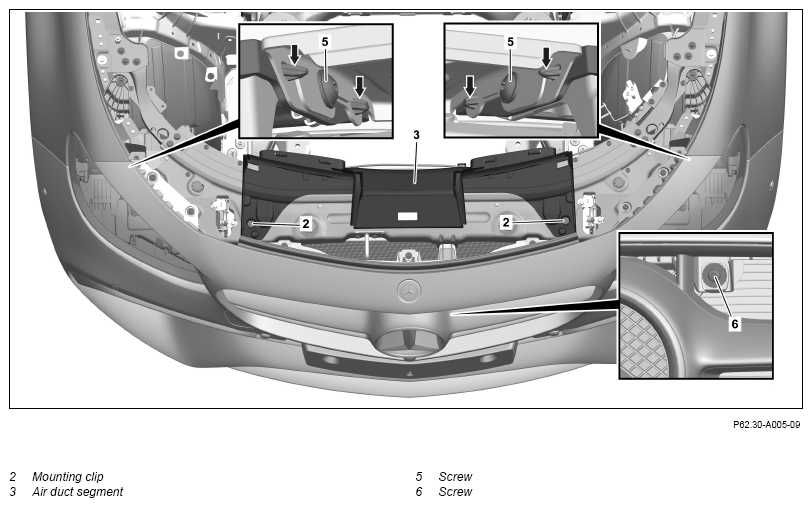

| 2 | Remove retaining clips (2) and remove air duct segment (3). | Fig 1 | |

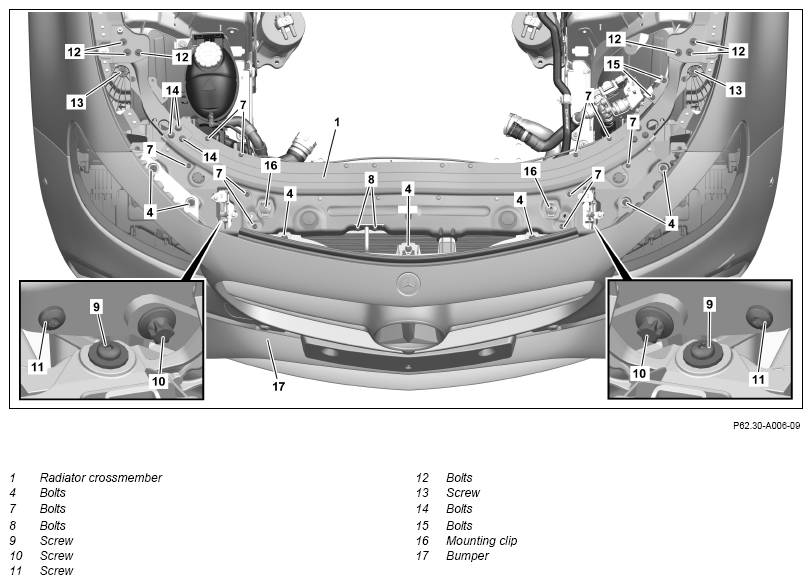

| 3 | Unscrew screw/bolts (4). | ||
| 4 | Remove bolts (5). | ||
| 5 | Unscrew screw/bolt (6). | ||
| 6 | Unscrew screws (7). | ||
| 7 | Remove bolts (8). | *BA62.30-P-1008-01H | |
| 8 | Press bumper (17) in upper area to side until screws (9, 10, 11) can be accessed. | ||
| 9 | Remove screws/bolts (9). | ||
| 10 | Unscrew bolts (10). | *BA62.30-P-1004-01H | |
| 11 | Remove screws (11). | ||
| 12 | Remove bolts (12). | *BA62.30-P-1007-01H | |
| 13 | Remove bolts (13). | ||
| 14 | Remove screws (14). | ||
| 15 | Remove screws (15). | ||
| 16 | Remove retaining clips (16). | ||
| 17 | Remove radiator crossmember (1) towards right from vehicle. | ||
| 18 | Install in the reverse order |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 213 | ||
|---|---|---|---|---|
| BA62.30-P-1004-01H | Bolt, strut to soundproofing | M8 | Nm | 23 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA62.30-P-1007-01H | Screw, front module carrier/cross strut to body/angle bracket for front module carrier | Nm | 11 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA62.30-P-1008-01H | Bolt, lock striker to cross member/front-module carrier | Nm | 10 |
