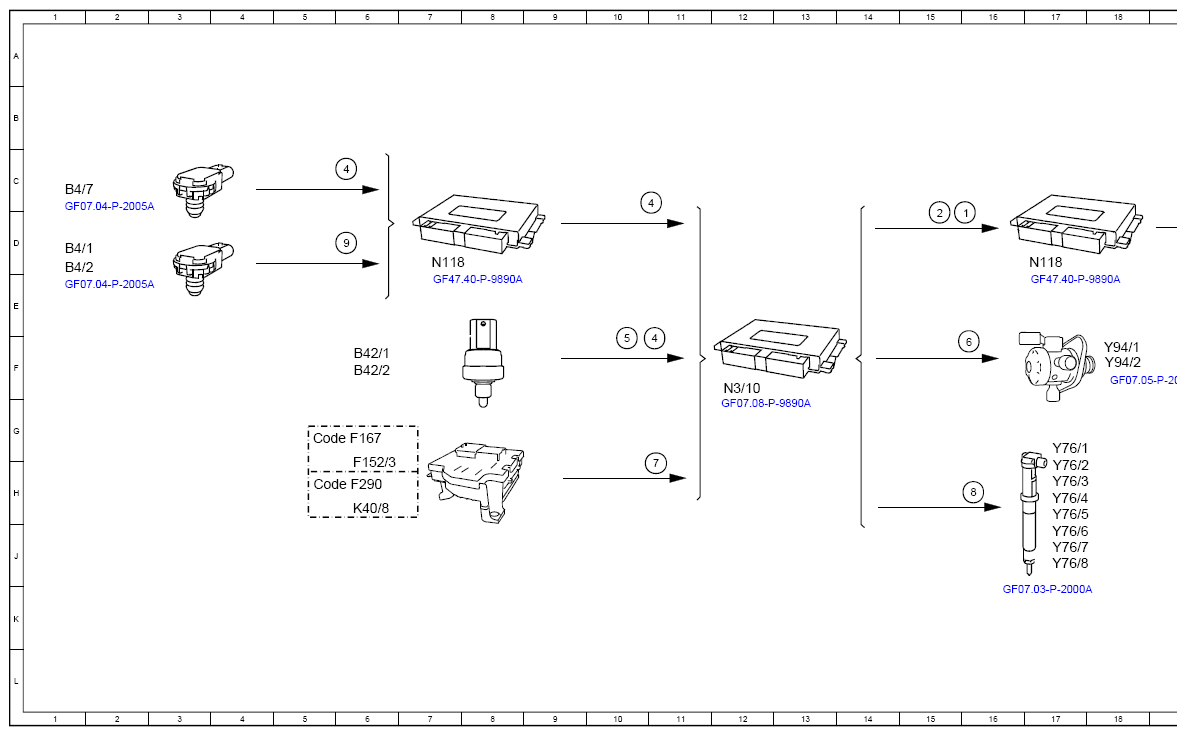

Function Schematic For Fuel Supply System - PE47.00-P-2500-97D
Engine 176, 177 in model 167
Engine 177 in model 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fuel pump, request ON | 16D |
| 2 | Fuel pump, specified pressure request | 15D |
| 3 | Fuel pump, actuation | 20D |
| 4 | Fuel pressure, signal | 11C |
| 4 | Fuel pressure, signal | 11F |
| 4 | Fuel pressure, signal | 6C |
| 5 | Fuel temperature, signal | 10F |
| 6 | Quantity control valve, actuation | 16F |
| 7 | Circuit 87, status | 11H |
| 8 | Fuel injectors, actuation | 16H |
| 9 | Fuel level, signal | 6D |
| B4/1 | Fuel tank fuel level indicator fill level sensor, left | 1D |
| B4/2 | Fuel tank fuel level indicator fill level sensor, right | 1D |
| B4/7 | Fuel pressure sensor | 1C |
| B42/1 | Right fuel pressure and temperature sensor | 6F |
| B42/2 | Left fuel pressure and temperature sensor | 6F |
| Code F167 | Model series 167 | 5G |
| Code F290 | Model series 290 | 5H |
| F152/3 | Engine compartment fuse and relay module | 6H |
| K40/8 | Engine fuse and relay module | 6H |
| M3 | Fuel pump (FP) | 22D |
| N118 | Fuel pump control unit | 17D |
| N118 | Fuel pump control unit | 7D |
| N3/10 | ME-SFI [ME] control unit | 12F |
| Y76/1 | Cylinder 1 fuel injector | 17G |
| Y76/2 | Cylinder 2 fuel injector | 17H |
| Y76/3 | Cylinder 3 fuel injector | 17H |
| Y76/4 | Cylinder 4 fuel injector | 17H |
| Y76/5 | Cylinder 5 fuel injector | 17H |
| Y76/6 | Cylinder 6 fuel injector | 17J |
| Y76/7 | Cylinder 7 fuel injector | 17J |
| Y76/8 | Cylinder 8 fuel injector | 17J |
| Y94/1 | Left quantity control valve | 18F |
| Y94/2 | Right quantity control valve | 18F |
