Rear Lower Section Of Side Wall Paneling Prepare For Installation - Ar63.10-P-5665-02ME (Model 167.1)

Model 167.1

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

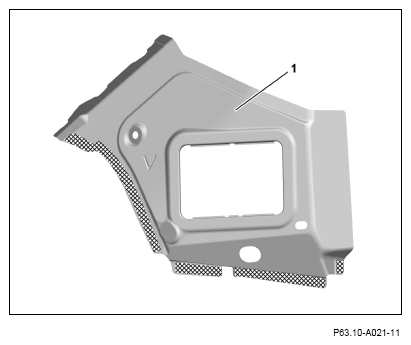

1. Grind mating surfaces on sidewall paneling lower section (1) down to bare metal in cross-hatched areas on both sides.
2. Remove grinding dust.
3. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
