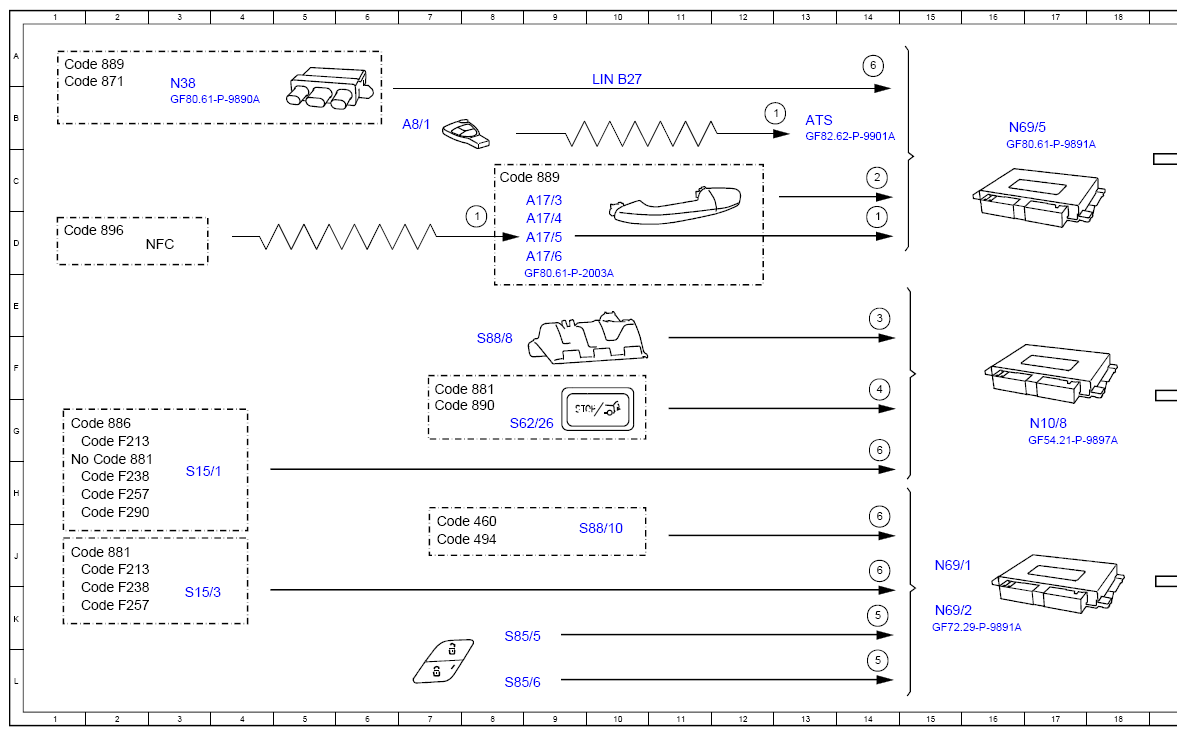

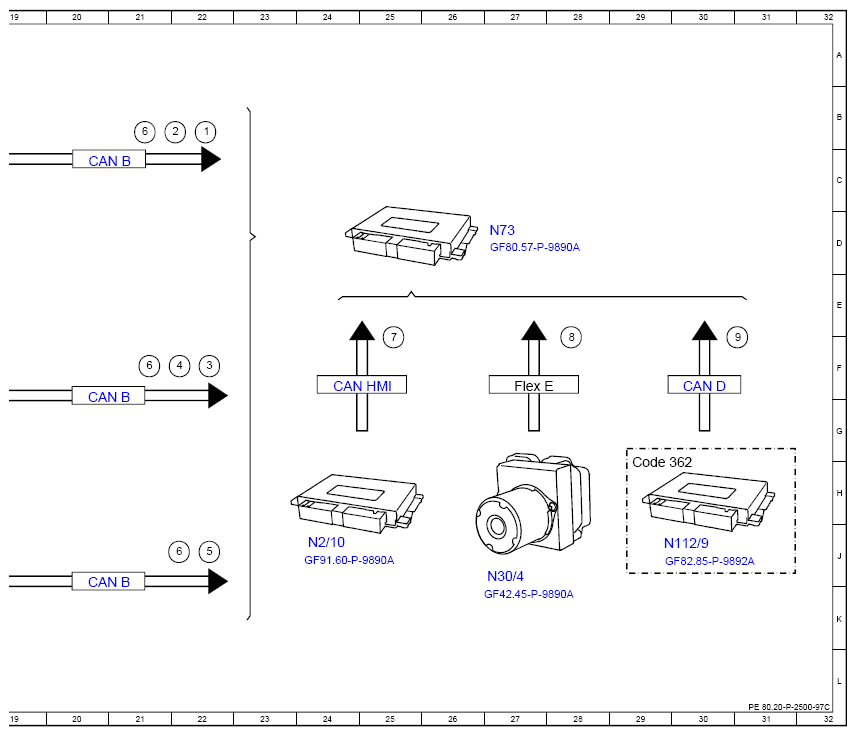

(Function Schematic For Central Locking System Activation - PE80.20-P-2500-97C)
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | access authorization code, Signal | 12B |
| 1 | access authorization code, Signal | 8D |
| 1 | access authorization code, Signal | 14D |
| 1 | access authorization code, Signal | 22B |
| 2 | door handle KEYLESS-GO, Status | 14C |
| 2 | door handle KEYLESS-GO, Status | 22B |
| 3 | Outer switch trunk lid/tailgate status | 14E |
| 3 | Outer switch trunk lid/tailgate status | 22F |
| 4 | Trunk Lid/Tailgate Control Button Status | 14F |
| 4 | Trunk Lid/Tailgate Control Button Status | 22F |
| 5 | Switch for inside operation of central locking, front door, status | 14L |
| 5 | Switch for inside operation of central locking, front door, status | 14K |
| 5 | Switch for inside operation of central locking, front door, status | 22J |
| 6 | Open trunk/tailgate request | 14A |
| 6 | Open trunk/tailgate request | 14J |
| 6 | Open trunk/tailgate request | 14H |
| 6 | Open trunk/tailgate request | 14H |
| 6 | Open trunk/tailgate request | 21F |
| 6 | Open trunk/tailgate request | 22H |
| 6 | Open trunk/tailgate request | 21B |
| 7 | Crash, Signal | 25E |
| 8 | Vehicle speed signal | 28E |
| 9 | Lock/unlock central locking, request | 31E |
| A17/3 | door handle KEYLESS-GO back left | 9C |
| A17/4 | door handle KEYLESS-GO back right | 9D |
| A17/5 | door handle KEYLESS-GO driver's door | 9D |
| A17/6 | door handle KEYLESS-GO passenger door | 9D |
| A8/1 | Channel Key | 7B |
| ATS | Antenna system | 13B |
| CAN B | Interior CAN | 20G |
| CAN B | Interior CAN | 20K |
| CAN B | Interior CAN | 20C |
| CAN D | Diagnostic CAN | 30F |
| CAN HMI | User Interface CAN | 24F |
| Code 362 | HERMES LTE | 29H |
| Code 460 | Canada version | 7J |
| Code 494 | USA version | 7J |
| Code 871 | Sensors for boot lid opening/closing | 1A |
| Code 881 | Trunk Lid/Tailgate Control | 7F |
| Code 881 | Trunk lid/tailgate control | 1J |
| Code 881 | Trunk lid/tailgate control | 2H |
| Code 886 | Remote trunk lid opening (HDF) | 1G |
| Code 889 | KEYLESS GO | 8C |
| Code 889 | KEYLESS GO | 1A |
| Code 890 | Automatic rear wall door | 7G |
| Code 896 | Vehicle access and driving authorization via mobile phone | 1D |
| Code F213 | Series 213 | 1J |
| Code F213 | Series 213 | 1G |
| Code F238 | Series 238 | 1K |
| Code F238 | Series 238 | 1H |
| Code F257 | SERIES 257 | 1K |
| Code F257 | SERIES 257 | 1H |
| Code F290 | 290 series | 1H |
| Flex E | Chassis FlexRay | 27F |
| LIN B27 | KEYLESS GO LIN | 10A |
| N10/8 | Rear SAM control unit | 17G |
| N112/9 | HERMES control unit | 30Y |
| N2/10 | Supplemental Restraint System control unit | 24Y |
| N30/4 | Electronic stability program control unit | 27J |
| N38 | Rear switching module | 3B |
| N69/1 | Control unit front door left | 15J |
| N69/2 | Right front door control unit | 15K |
| N69/5 | KEYLESS-GO control unit | 16B |
| N73 | Electronic ignition lock control unit | 27D |
| S15/1 | Trunk Lid Release Button | 3H |
| S15/3 | Trunk Lid/Tailgate Control Driver Button | 3K |
| S62/26 | Trunk Lid/Tailgate Control Button | 8G |
| S85/5 | Switch for inside operation of central locking, front door on the left | 8K |
| S85/6 | Switch for inside operation of central locking, front door on the right | 8L |
| S88/10 | Emergency trunk lid open switch | 10Y |
| S88/8 | External switch trunk lid/tailgate | 8F |
