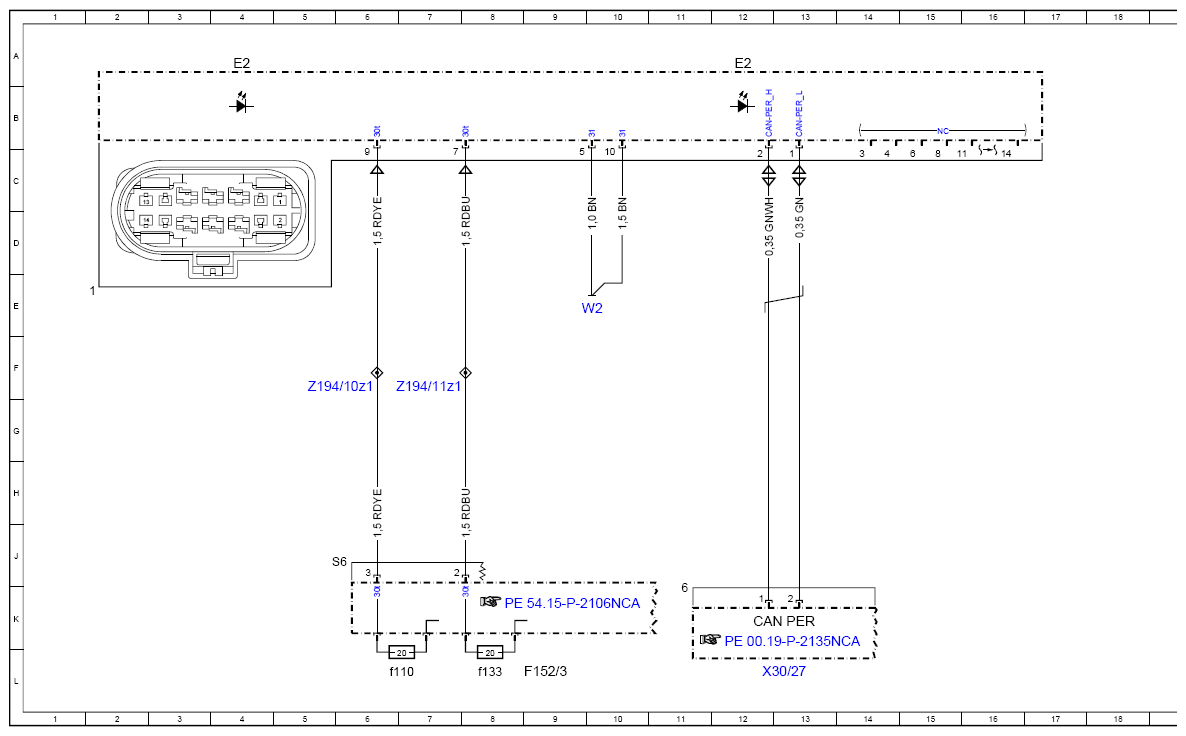

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97NCF
Model 167 with code 640 (SAE dynamic LED headlamps, right-hand traffic) Dynamic LED headlampE2
Model 167 with code 641 (Dynamic LED headlamps, left-hand traffic) Dynamic LED headlampE2
Model 167 with code 642 (Dynamic LED headlamps, right-hand traffic) Dynamic LED headlampE2
| Code: | Designation: | Position: |
|---|---|---|

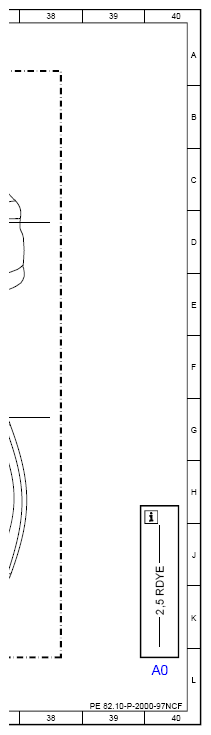

| A0 | Use of wiring diagrams | 40L |
| CAN PER | Peripherals CAN | 12K |

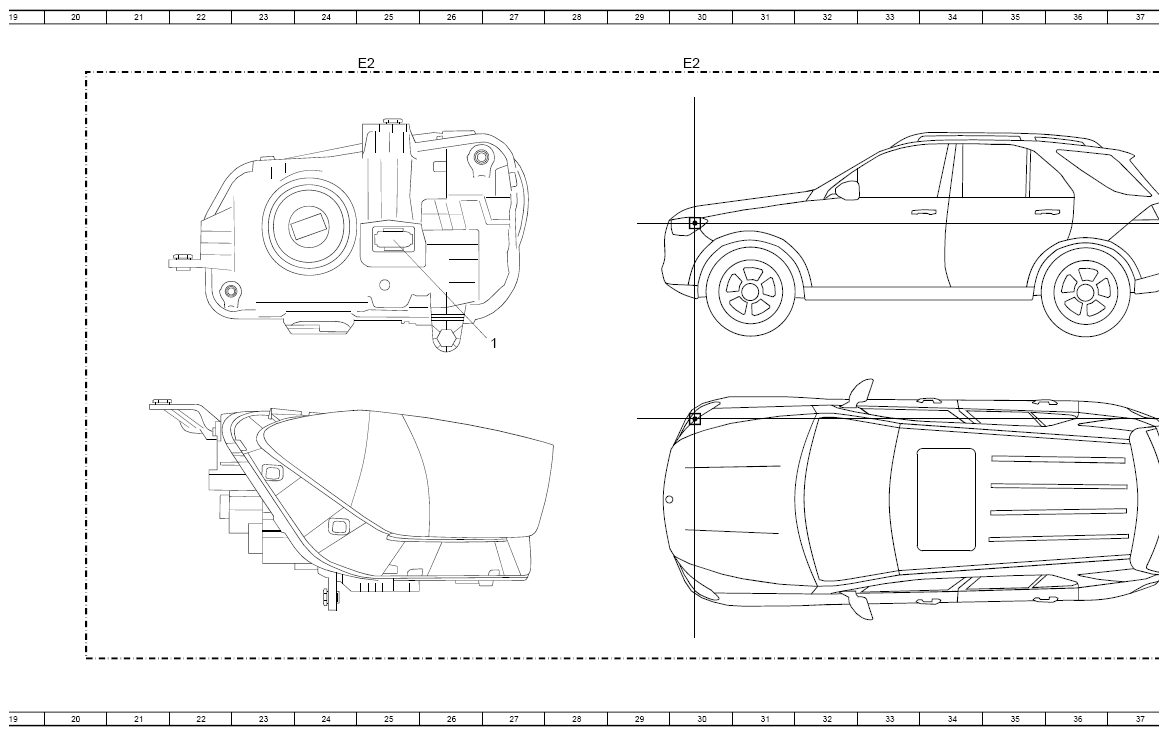

| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 25A |
| E2 | Right front lamp unit | 30A |
| E2 | Right front lamp unit | 4A |
| F152/3 | Engine compartment fuse and relay module | 9L |
| F152/3f110 | Fuse 110 | 6L |
| F152/3f133 | Fuse 133 | 8L |
| W2 | Right front ground point at lamp unit | 10E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 13L |
| Z194/10z1 | Front lamp unit terminal 30 A end sleeve | 6F |
| Z194/11z1 | Front lamp unit terminal 30 B end sleeve | 7F |
