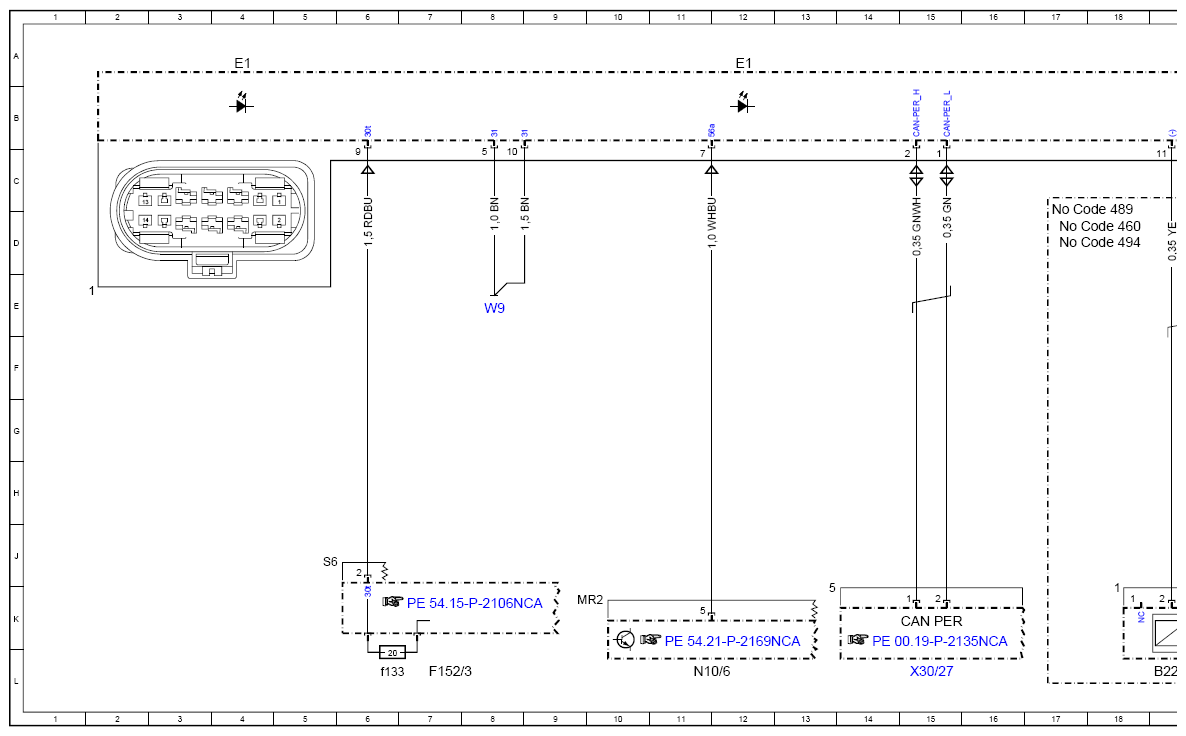

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97NCA
Model 167 with code 613 (headlights left-hand-traffic) Partial LED headlamp E1
Model 167 with code 620 (Right-hand traffic headlamps) Partial LED headlamp E1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| B22/10 | Right rear level sensor | 21L |
| B22/9 | Right front level sensor | 19L |
| CAN PER | Peripherals CAN | 15K |
| Code 460 | Canada version | 17D |
| Code 489 | AIRMATIC | 17D |
| Code 494 | USA version | 17D |

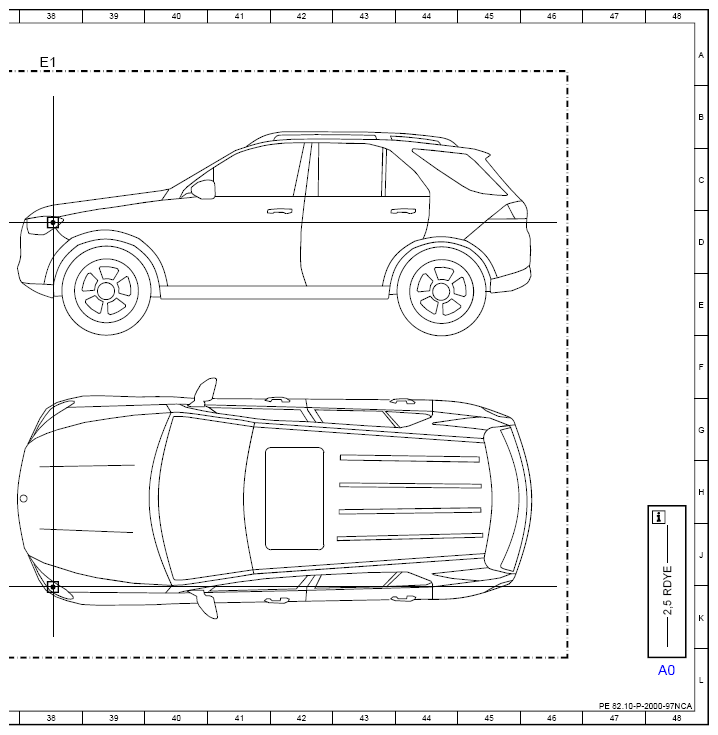

| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 12A |
| E1 | Left front lamp unit | 32A |
| E1 | Left front lamp unit | 38A |
| E1 | Left front lamp unit | 20A |
| F152/3 | Engine compartment fuse and relay module | 7L |
| F152/3f133 | Fuse 133 | 6L |
| N10/6 | Front central control unit | 11L |
| W9 | Left front ground point (at lamp unit) | 8E |

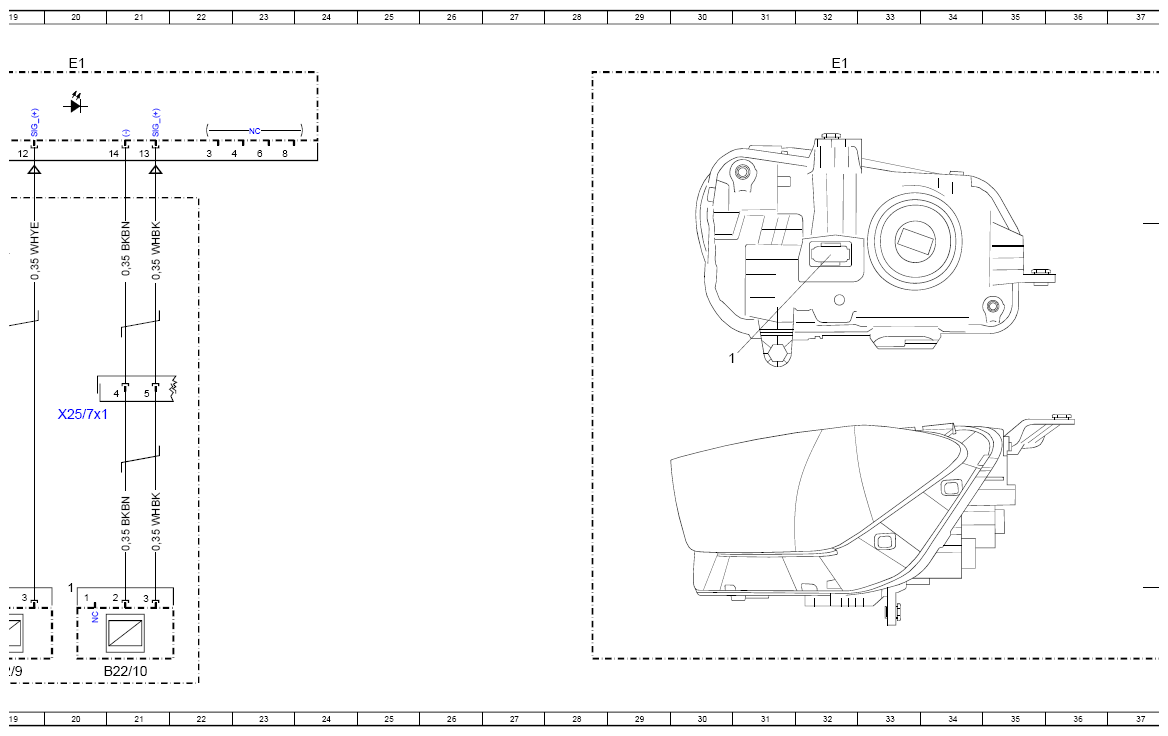

| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 20G |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 15L |
