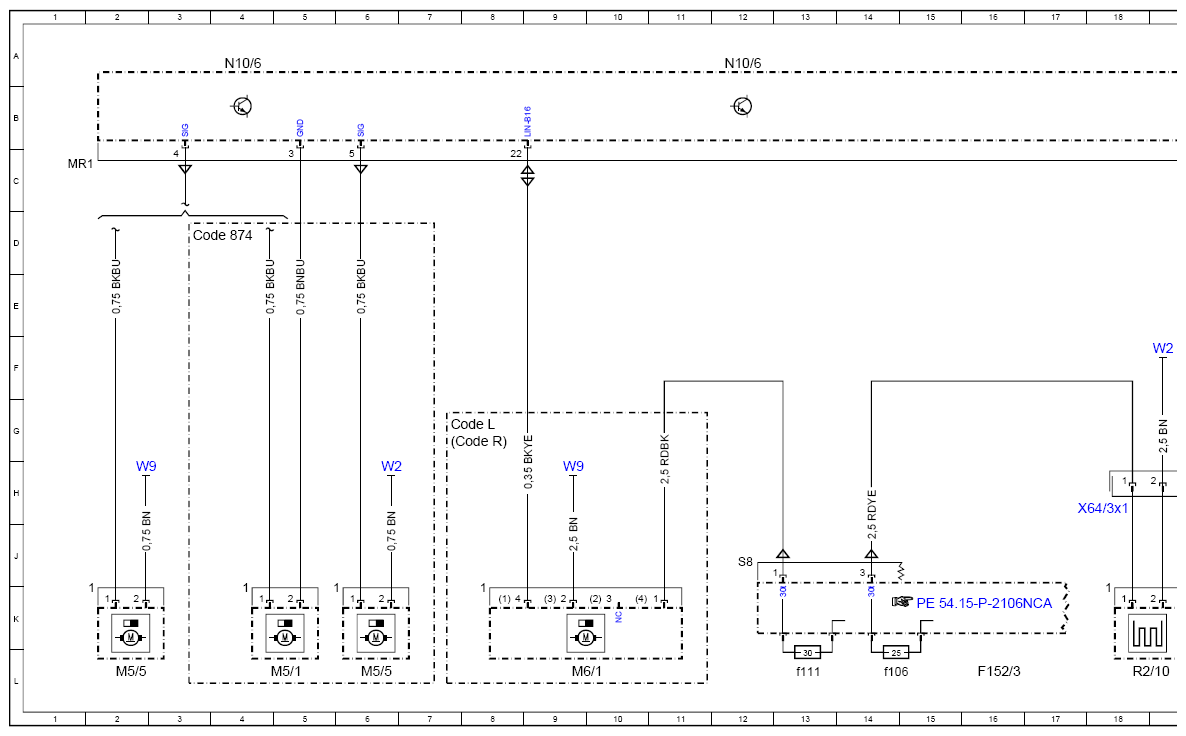

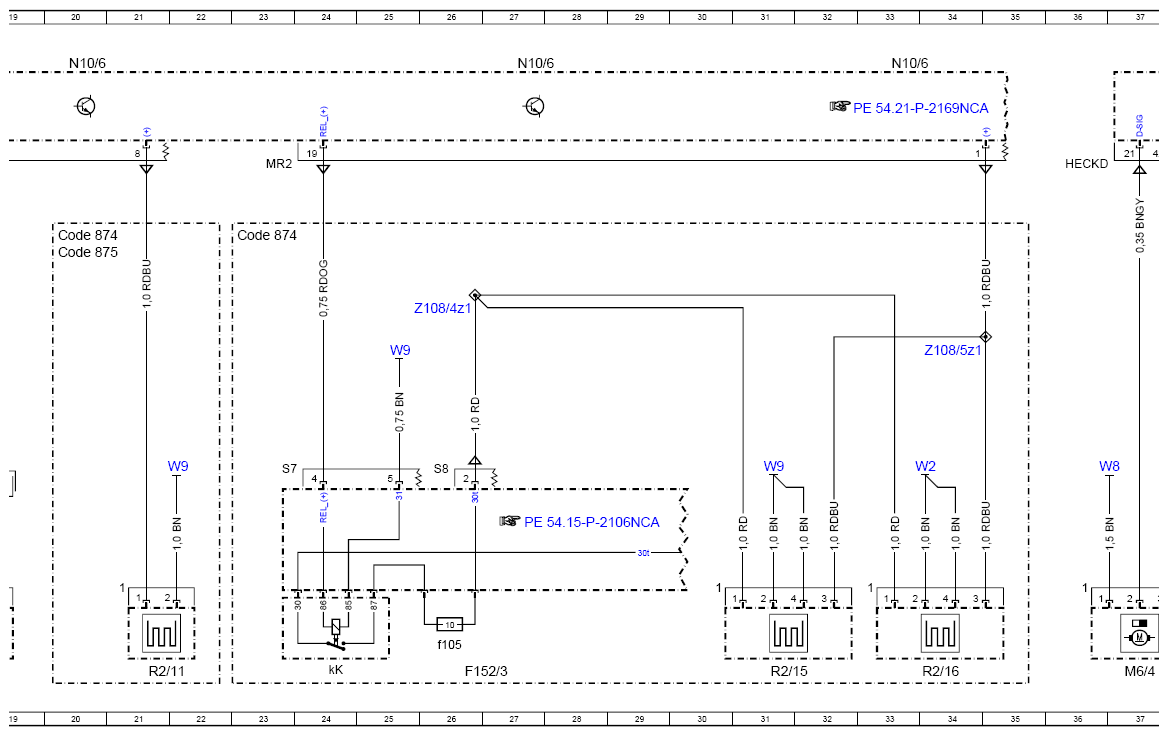

Wiring Diagram For Windshield Wiper System - PE82.30-P-2003-97NCA
Model 167
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| Code 874 | MAGIC VISION CONTROL, heated | 20D |
| Code 874 | MAGIC VISION CONTROL, heated | 23D |
| Code 874 | MAGIC VISION CONTROL, heated | 3D |
| Code 875 | Heated windshield washer system | 20D |
| Code L | LEFT-HAND DRIVE | 7G |
| Code R | RIGHT-HAND DRIVE | 7G |
| F152/3 | Engine compartment fuse and relay module | 16L |
| F152/3 | Engine compartment fuse and relay module | 26L |
| F152/3f105 | Fuse 105 | 26K |
| F152/3f106 | Fuse 106 | 14L |
| F152/3f111 | Fuse 111 | 13L |
| F152/3kK | Windshield wiper heating relay | 24L |
| M5/1 | Windshield washer system pump | 5L |
| M5/5 | Liftgate windshield washer system pump | 6L |
| M5/5 | Liftgate windshield washer system pump | 2L |
| M6/1 | Wiper motor | 9L |
| M6/4 | TaiIgate wiper motor | 37L |
| N10/6 | Front central control unit | 4A |
| N10/6 | Front central control unit | 12A |
| N10/6 | Front central control unit | 20A |
| N10/6 | Front central control unit | 27A |
| N10/6 | Front central control unit | 33A |
| N10/8 | Rear central control unit | 39A |
| R2/10 | Wiper park heater | 18L |
| R2/11 | Spray nozzle hose heater | 21L |
| R2/15 | Left windshield wiper heater | 31L |
| R2/16 | Right windshield wiper heater | 34L |
| W2 | Right front ground point at lamp unit | 6H |
| W2 | Right front ground point at lamp unit | 34H |
| W2 | Right front ground point at lamp unit | 19F |
| W8 | Liftgate ground point | 36H |
| W9 | Left front ground point (at lamp unit) | 9H |
| W9 | Left front ground point (at lamp unit) | 22H |
| W9 | Left front ground point (at lamp unit) | 25F |
| W9 | Left front ground point (at lamp unit) | 31H |
| W9 | Left front ground point (at lamp unit) | 2H |
| X64/3x1 | Wiper park position heater electrical connector | 18H |
| Z108/4z1 | Wiper park position heater end sleeve | 26E |
| Z108/5z1 | Wiper blade heater end sleeve | 34F |
