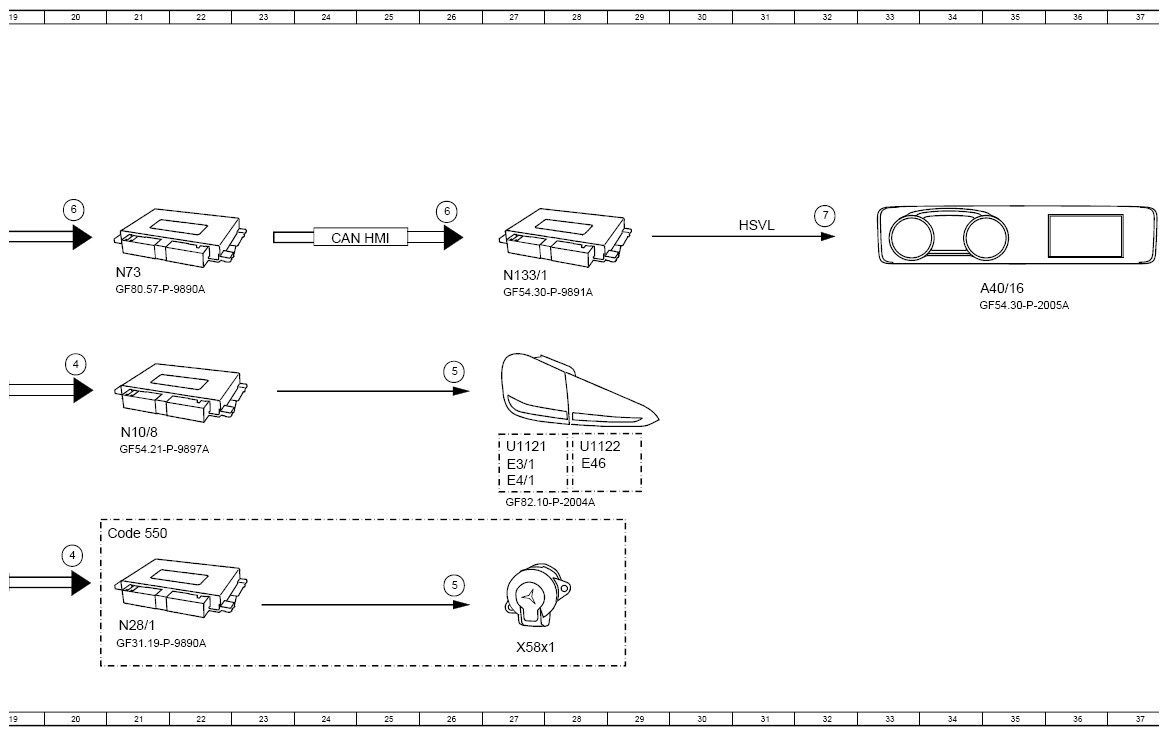

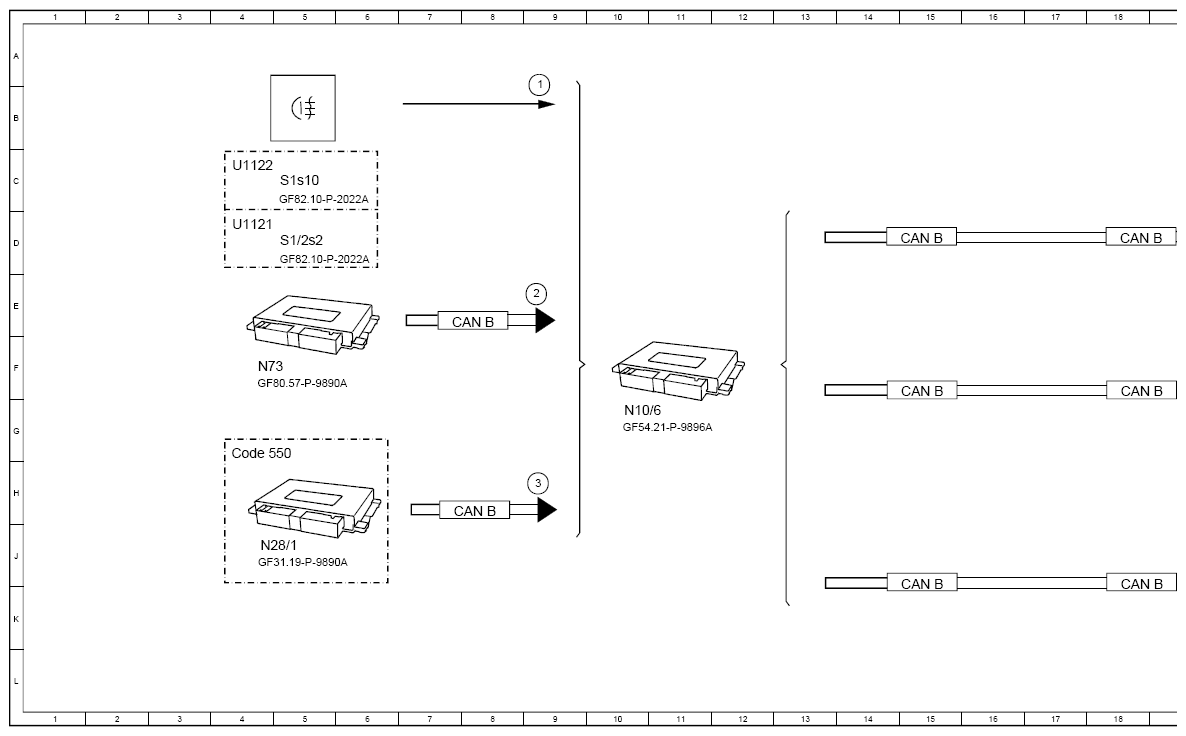

Function Schematic, Actuate Rear Fog Light - PE82.10-P-2514-97B
Model 167
Model 293
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Rear fog light button, status | 9B |
| 2 | Circuit 15, status | 9E |
| 3 | Trailer recognition, status | 9H |
| 4 | Rear fog light, request | 20F |
| 4 | Rear fog light, request | 20J |
| 5 | Rear fog light, actuation | 26F |
| 5 | Rear fog light, actuation | 26J |
| 6 | Indicator lamp, request | 20C |
| 6 | Indicator lamp, request | 26C |
| 7 | Image data, signal | 32C |
| A40/16 | Head unit/instrument cluster display cluster | 35E |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 18D |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 8E |
| CAN B | Interior CAN | 15K |
| CAN B | Interior CAN | 15F |
| CAN B | Interior CAN | 15D |
| CAN HMI | User interface CAN | 24D |
| Code 550 | Trailer hitch | 4G |
| Code 550 | Trailer hitch | 21J |
| E3/1 | Inner left rear lamp unit | 27H |
| E4/1 | Inner right rear lamp unit | 27H |
| E46 | Trunk lid/liftgate lamp unit | 28H |
| HSVL | High-speed video link | 31D |
| N10/6 | 10G | |
| N10/8 | 21G | |
| N133/1 | Instrument cluster control unit | 27E |
| N28/1 | Trailer recognition control unit | 4J |
| N28/1 | Trailer recognition control unit | 21K |
| N73 | Electronic ignition switch control unit | 4F |
| N73 | Electronic ignition switch control unit | 21E |
| S1/2s2 | Rear fog light button | 5D |
| S1s10 | Rear fog light button | 5C |
| U1121 | Valid for model 167 | 4D |
| U1121 | Valid for model 167 | 27G |
| U1122 | Valid for model 293 | 4C |
| U1122 | Valid for model 293 | 28G |
| X58x1 | Trailer socket | 27L |
