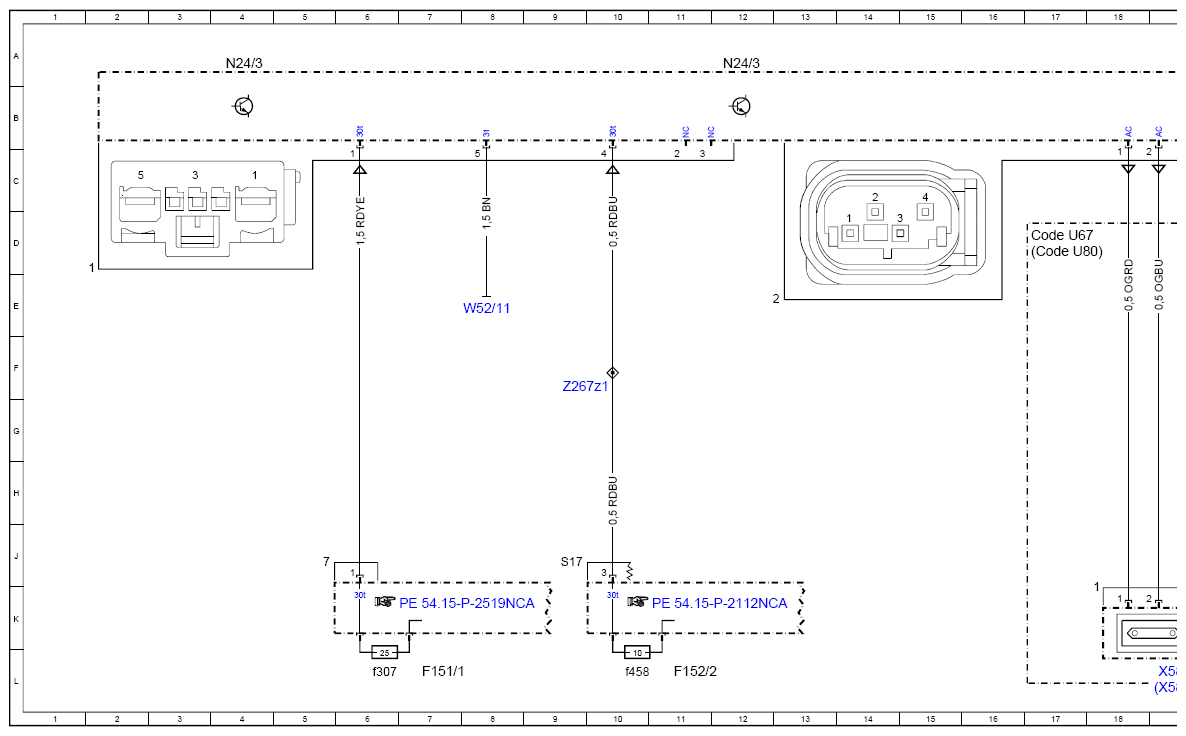

Wiring Diagram Control Unit DC/AC Converter - PE54.10-P-2103-97NCA
Model 167 with code U67 (230 V socket in interior compartment) Control unit N24/3
Model 167 with code U80 (115 V socket) Control unit N24/3
| Code: | Designation: | Position: |
|---|---|---|

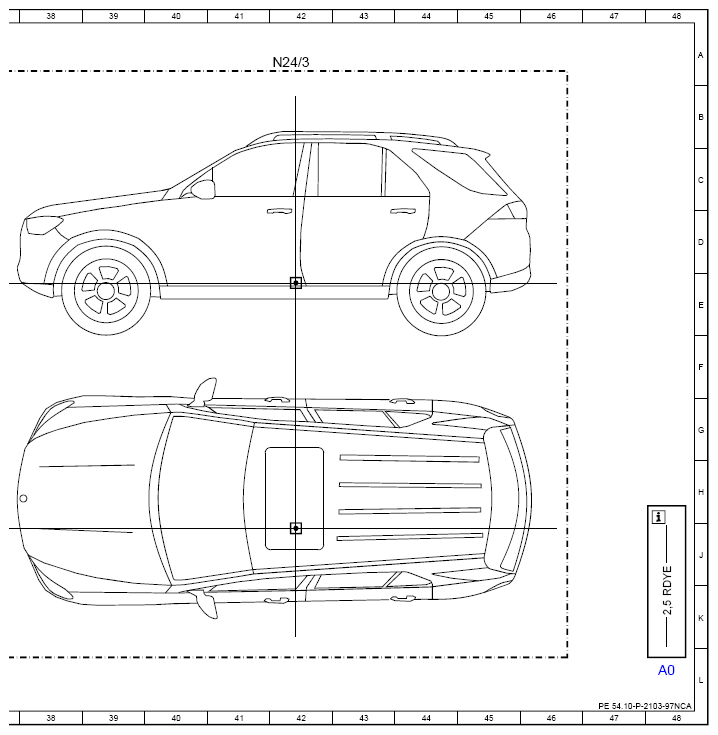

| A0 | Use of wiring diagrams | 48L |
| Code U67 | 230 volt socket in interior compartment | 17D |
| Code U80 | 115 V socket | 17D |
| F151/1 | 7L | |
| F151/1f307 | Fuse 307 | 6L |
| F152/2 | Rear fuse and relay module | 11L |
| F152/2f458 | Fuse 458 | 10L |

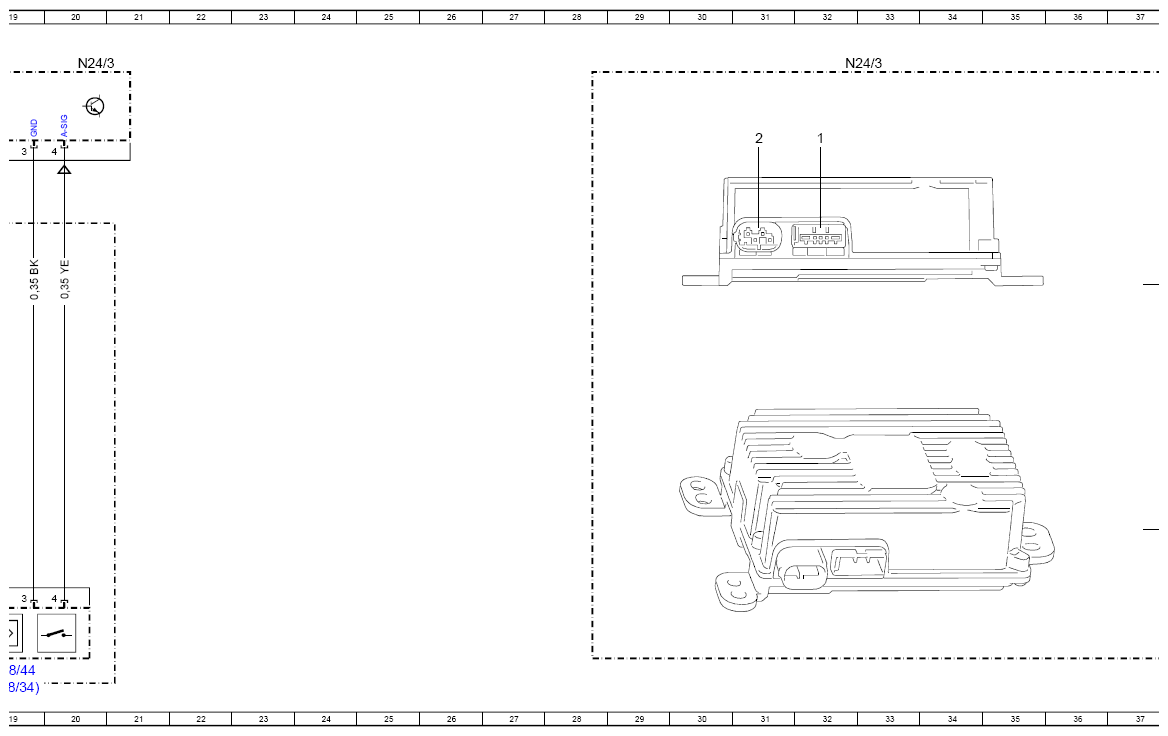

| N24/3 | DC/AC converter control unit | 4A |
| N24/3 | DC/AC converter control unit | 32A |
| N24/3 | DC/AC converter control unit | 42A |
| N24/3 | DC/AC converter control unit | 12A |
| N24/3 | DC/AC converter control unit | 20A |
| W52/11 | Upper right front longitudinal member ground point | 8E |
| X58/34 | 115 V socket | 19L |
| X58/44 | 230 V socket | 19L |
| Z267z1 | Circuit 30t power supply connector sleeve | 10F |
