Remove/Install On-Board Electrical System Battery - AR54.10-P-0009ME
Model 167
MODIFICATION NOTES
| 06.04.2021 | Sequence of operation steps revised. | Operation step 1 |
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge 1 | AH54.00-P-0001-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Confirm change of on-board electrical system battery (G1) using diagnosis system in signal acquisition and actuation module under Actuation menu item. | When replacing the on-board electrical system battery (G1). | |
| 2 | Remove front seat on driver's side with connected lines and tilt backwards. | AR91.10-P-1000ME | |
| 3 | Disconnect the ground line for the on-board electrical system battery (G1). | AR54.10-P-0003ME | |
| 4 | Remove driver's side B-pillar trim. | Model 167 with code 581 (Automatic air conditioning) |
AR68.30-P-4700ME |

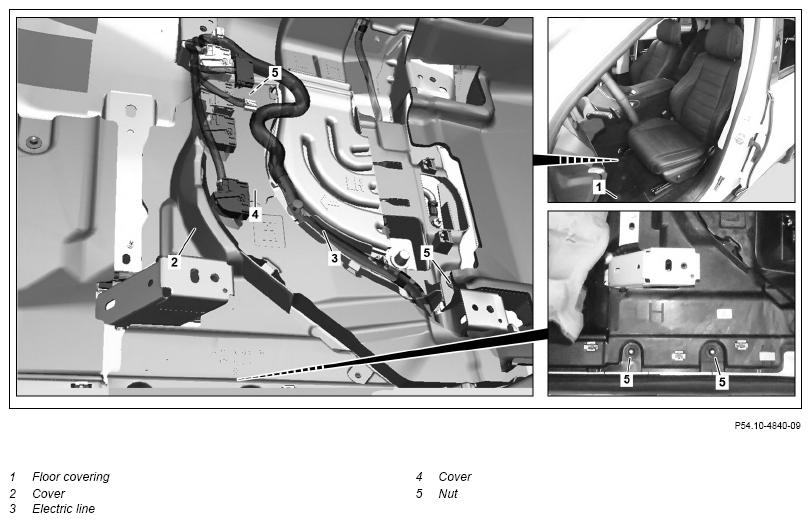

| 5 | Fold floor covering (1) at front on driver's side far enough forward to gain access to trim (2). | AR68.80-P-0007ME | |
| 6 | Unclip electric line (3) from cover (2). | Fig 2 | |

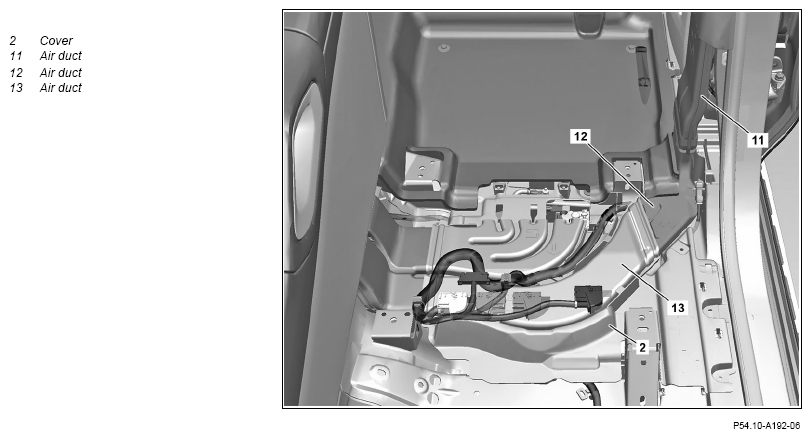

| 7 | Remove air duct (11). | Model 167 with code 581 (Automatic air conditioning) |
|
| 8 | Remove air duct (12). | Model 167 with code 581 (Automatic air conditioning) |
|
| Fig 2 | |||
| 9 | Remove air duct of footwell ventilation. | Fig 2 | |
| 10.1 | Remove air duct (13). | Model 167 with code 581 (Automatic air conditioning) |
|
| 10.2 | Remove cover (4). | Model 167 except code 581 (Automatic air conditioning) |
|
| 11 | Remove nuts (5) and remove cover (2). | ||

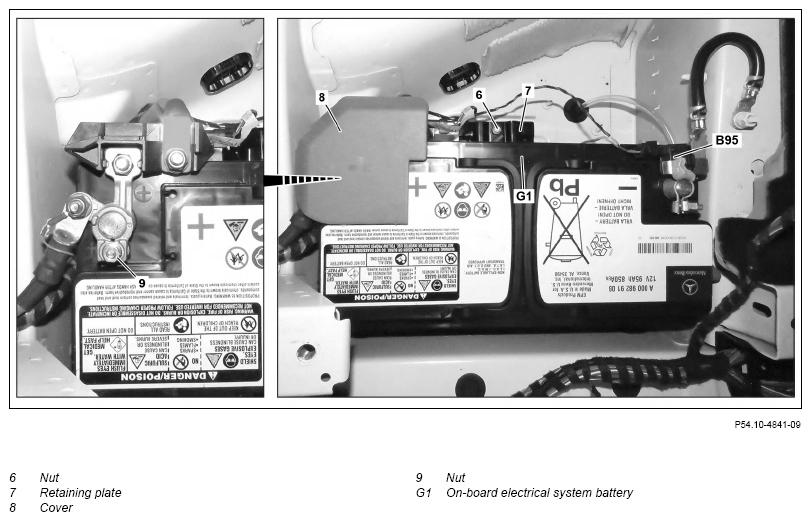

| 12 | Remove cover (8) and loosen nut (9) on positive battery terminal clamp. | *BA54.10-P-1001-01L | |
| 13 | Remove positive battery terminal clamp and place to one side. | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|
| 14 | Detach vent hose including plastic fitting from on-board electrical system battery (G1). | ||
| 15 | Remove nut (6) and remove retaining plate (7). | *BA54.10-P-1010-01L | |
| 16 | Remove on-board electrical system battery (G1). | Before installing the on-board electrical system battery (G1), it must be ensured that there are no cables located in the area of the on-board electrical system battery (G1) mount Otherwise, these may be damaged during installation of the on-board electrical system battery (G1). |
|
| 17 | Install in the reverse order. |
BATTERY
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA54.10-P-1001-01L | Current limiter to positive battery terminal | Nm | 6 |
BATTERY
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA54.10-P-1010-01L | Nut, mounting rail to battery frame | M8 | Nm | 24 |
