Remove/Install Front Passenger Side Interior Fuse Box - AR54.15-P-1312ME

Model 167

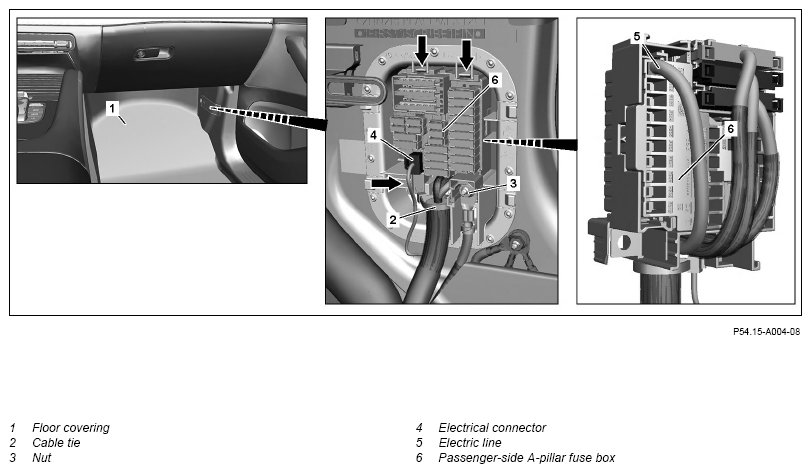

Fig 1: Front Passenger Side Interior Fuse Box Components Location - Model 167

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Clamp off ground line of on-board electrical system battery (G1).		AR54.10-P-0003ME
2	Fold front right floor covering (1) to one side.		AR68.80-P-0008ME
3	Unscrew nut (3) of positive line from front passenger side A-pillar fuse box (6) and remove positive line.	Nut, positive line to engine compartment/vehicle interior pre-fuse box	*BA54.15-P-1001-01L
4	Separate cable tie (2).	Replace cable tie (2).
5	Release and disconnect electrical connector (4).
6	Unclip front passenger side A-pillar fuse box (6) (arrows).
7	Release and disconnect electrical connectors from reverse side of front passenger side A-pillar fuse box (6).
8	Pull out locking clip of electric line (5) and unpin electric line (5).	The number of electric lines (5) varies depending on the vehicle equipment. Observe installation position.
		New passenger car wiring harness repair kit	Fig 2
		Wiring harness repair kit, basic	Fig 3
9	Install in the reverse order

FUSE AND RELAY BOX

Number	Designation			Model 167
BA54.15-P-1001-01L	Nut, positive line to engine compartment/vehicle interior pre-fuse box	M6	Nm	8
BA54.15-P-1001-01L		M8	Nm	16

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
