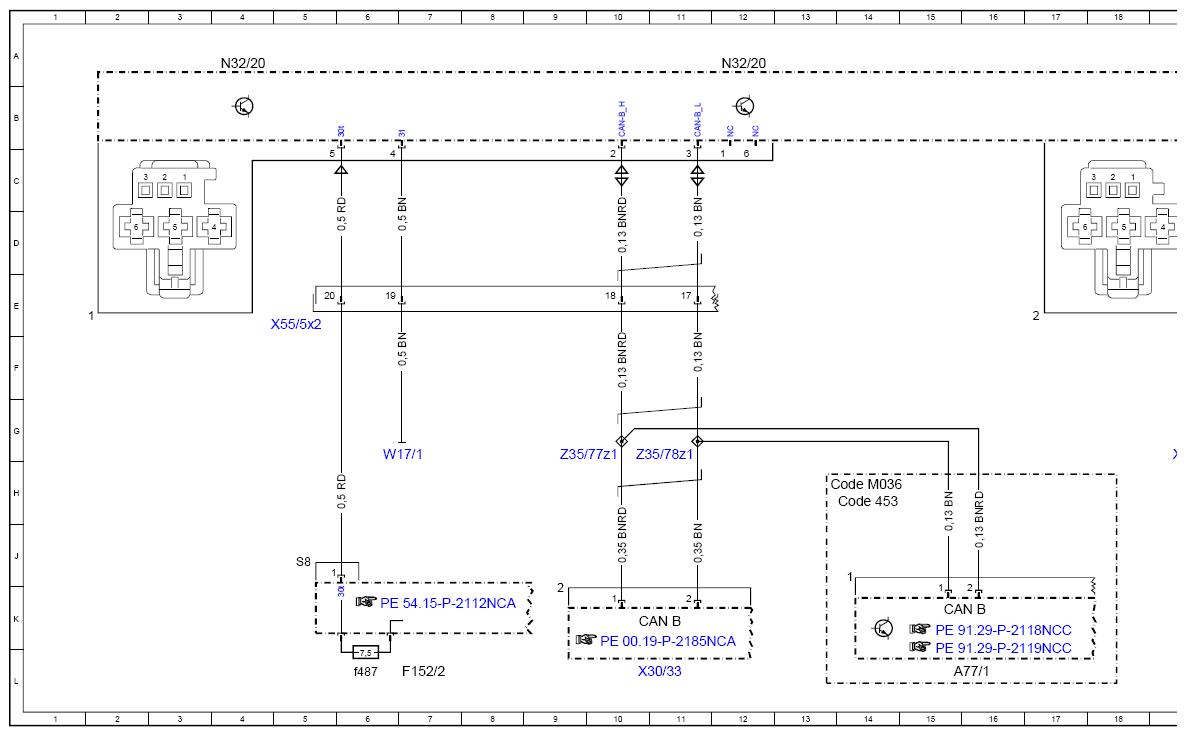

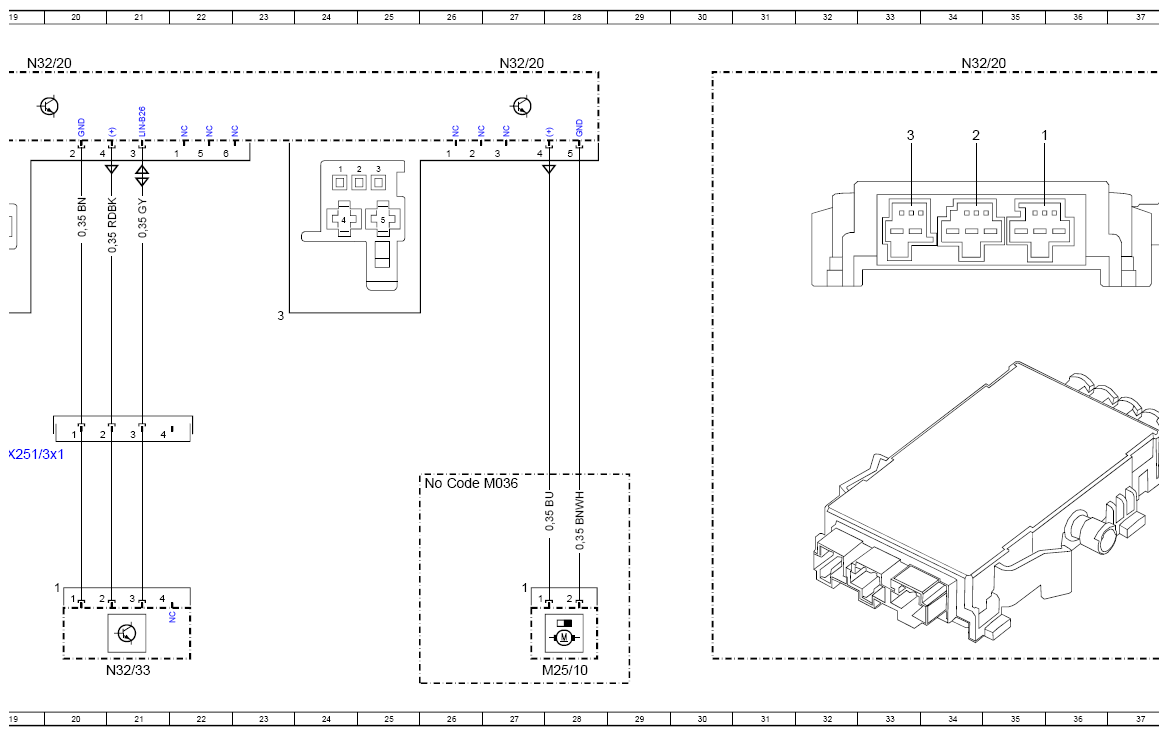

Left Rear Multicontour Seat Control Unit Wiring Diagram - PE91.25-P-2106-97NCA
Model 167 with code 406 (Multicontour rear seat) Control unit N32/20
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A77/1 | Multicontour seat pneumatic pump | 16L |
| CAN B | Interior CAN | 11K |
| CAN B | Interior CAN | 15K |
| Code 453 | Rear reclining seats | 14H |
| Code M036 | Maybach version | 13H |
| Code M036 | Maybach version | 26H |
| F152/2 | Rear fuse and relay module | 7L |
| F152/2f487 | Fuse 487 | 6L |
| M25/10 | Left rear multicontour seat pneumatic pump | 28L |

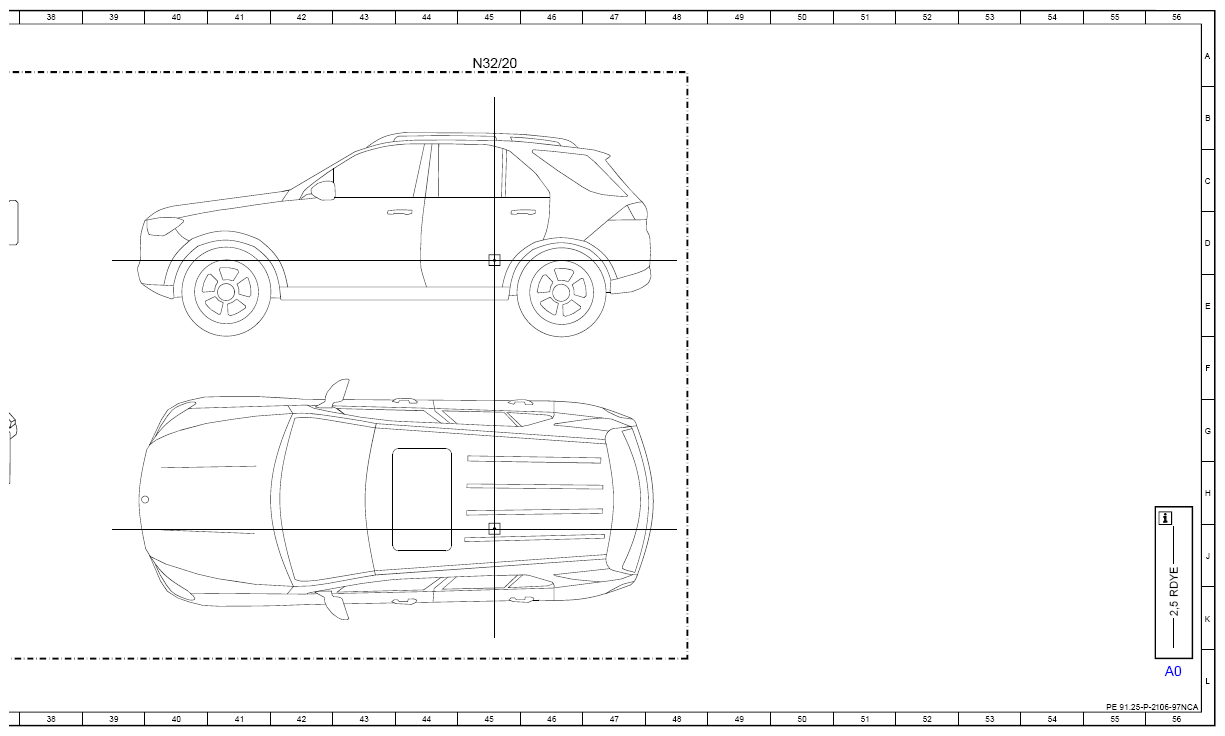

| N32/20 | Left rear multicontour seat control unit | 34A |
| N32/20 | Left rear multicontour seat control unit | 45A |
| N32/20 | Left rear multicontour seat control unit | 4A |
| N32/20 | Left rear multicontour seat control unit | 12A |
| N32/20 | Left rear multicontour seat control unit | 27A |
| N32/20 | Left rear multicontour seat control unit | 19A |
| N32/33 | Left rear backrest massage function control unit | 21L |
| W17/1 | Left rear seat ground point | 6G |
| X251/3x1 | Left rear active multicontour seat/slave electrical connector | 19G |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 11L |
| X55/5x2 | Left rear seat adjustment unit connector block | 5E |
| Z35/77z1 | Interior CAN (CAN B) High connector sleeve | 10G |
| Z35/78z1 | Interior CAN (CAN B) low connector sleeve | 11G |
