Remove/Install Rear Engine Cover - AR01.10-P-2408MRK
Engine 264 In Model 167
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove upper engine cover. | AR01.10-P-2405MRK | |
| 3 | Release and disconnect electrical connectors from the ME-SFI control unit (N3/10) and expose electrical wiring harness in the working area. | ||

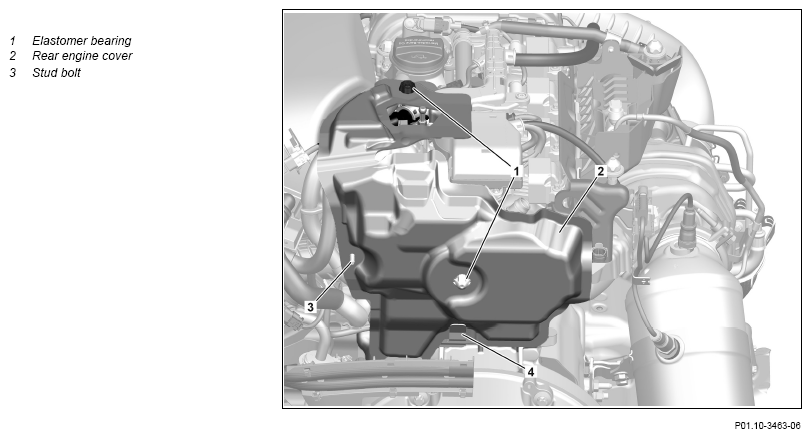

| 4 | Release elastomer bearings (1) of the rear engine cover (2) from the ball heads. | Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A |
| 5 | Remove rear engine cover (2). | ||
| Check | |||
| 6 | Check elastomer bearings (1) for damage. | If damage is present, ↓ replace affected elastomer bearing (1). |
|
| 7 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
