Remove/Install Front Axle Brake Disc - AR42.10-P-0230MEA

Model 167

with code B06 (Silver brake calipers)

Model 167

with code B07 (AMG - ceramic brake system)

Model 167

with code U29 (AMG high-performance braking system)

Model 167

with code U70 (red-painted brake callipers)

Shown on right side of vehicle

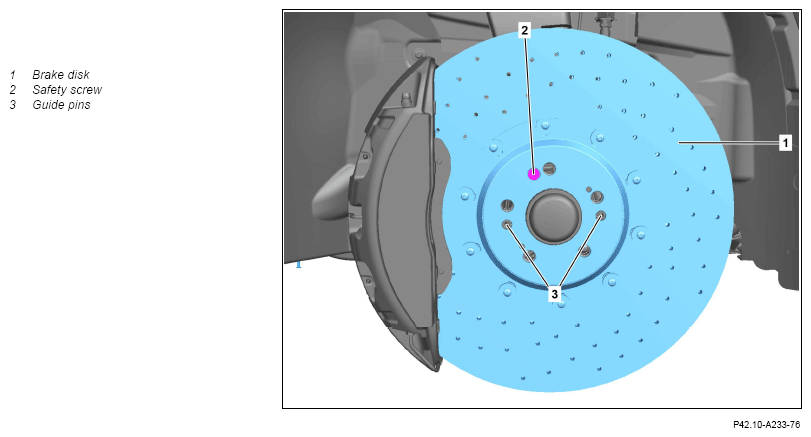

Fig 1: Front Axle Brake Disc Components Location - Model 167 With Code B06, B07, U29, U70

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Remove corresponding brake caliper with brake linings and secure to vehicle free of tension with lines attached.		AR42.10-P-0070MEX
2	Unscrew safety screw (2) and remove brake disk (1).
	Check
3.1	Check brake disk (1) for condition and wear.	Model 167 with code B07 (AMG - ceramic brake system)
			AR42.10-P-0270RG
		Only sets of brake disks (1) approved by Mercedes-Benz may be installed. If there is a problem, ↓ replace corresponding brake disk (1).
3.2	Check brake disk (1) for condition and wear.	Model 167 with code B06 (Silver brake calipers) Model 167 with code B07 (AMG - ceramic brake system) Model 167 with code U29 (AMG high-performance braking system)
			AP42.10-P-4256EW
		Only sets of brake disks (1) approved by Mercedes-Benz may be installed. If there is a problem, ↓ replace brake disks (1).
	Clean
4	Clean contact surface and interference fit of brake disk (1).	Do not use sharp-edged or pointed objects. Otherwise, the contact surface and interference fit could be damaged.
		Assembly cleaner	*BR00.45-Z-1028-04A
	Install
5	Lightly grease interference fit of brake disk (1)	Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
6	Position brake disk (1) using guide pins (3) and screw in safety screw (2).	Replace locking bolt (2).
		Safety screw, brake disk to front axle	*BA42.10-P-1001-11A
7	Install brake caliper with brake linings.		AR42.10-P-0070MEX
