Remove/Check/Install Front Axle Brake Pads - AR42.10-P-1610ME
Model 167
except code B06 (Silver brake calipers)
except code B07 (AMG - ceramic brake system)
except code U29 (AMG high-performance braking system)
except code U70 (red-painted brake callipers)
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notes on installing brake wear indicator contact sensors | AH42.10-P-0003-01CW | ||
| Remove | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove cover above brake fluid expansion reservoir. | AR83.10-P-1411ME | |
| 3 | Clean area around cap on brake fluid expansion reservoir. | Assembly cleaner | *BR00.45-Z-1028-04A |
| 4 | Unscrew cap on brake fluid expansion reservoir and suction off some brake fluid. | ||
| 5 | Remove front wheel and tire assemblies. | AR40.10-P-1102ME | |

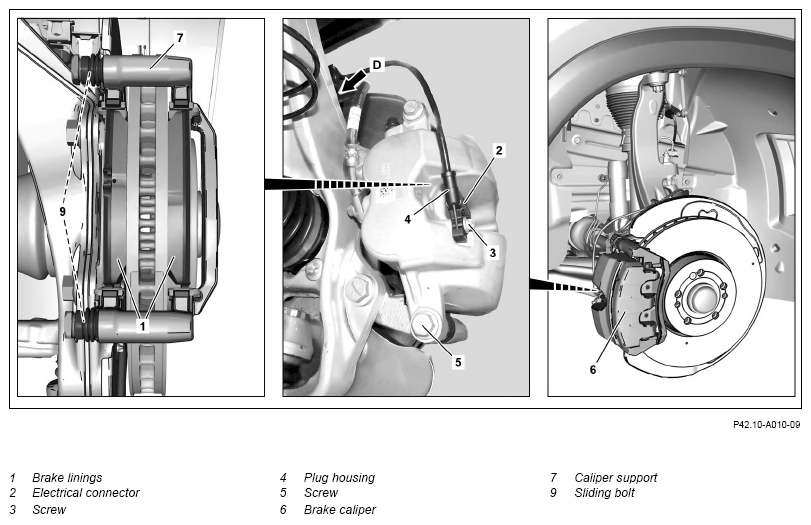

| 6 | Unhook brake hose from holder (arrow D). | ||
| 7 | Release and disconnect electrical connector (2) of right front brake wear sensor. | ||
| 8 | Remove screw (3) and place plug housing (4) to one side. | On the right side of the vehicle. | |
| 9 | Remove screw (5). | ||
| 10 | Swivel brake caliper (6) upward and secure against folding down. | ||
| 11 | Remove brakepads (1) from brake caliper support (7). | ||
| 12 | Remove sliding plates (8). | When replacing the brakepads (1). | |
| Check | |||
| 13 | Check brakepads (1) for wear and condition. | ||
| AP42.10-P-4252J | |||
| If there is a problem, ↓ Replace brake linings (1). |
|||
| 14 | Check brake disks for wear and condition. | ||
| AP42.10-P-4256EW | |||
If there is a problem, ↓ Replace brake disks. |
|||
| AR42.10-P-0230ME | |||
| 15 | Check brake caliper (6) with detachable parts for damage. | If there is a problem, ↓ Replace corresponding components. |
|
| AR42.10-P-0070ME | |||
| 16 | Check brake caliper support (7) and sliding bolts (9) for damage and ease of movement. | If there is a problem, ↓ replace brake caliper support (7). |
|
| AR42.10-P-0070ME | |||
| Clean | |||
| 17 | Clean contact surfaces of brakepads (1) at brake caliper (6) and at brake caliper support (7). | Do not use sharp-edged or pointed objects. Otherwise, the brake system may be damaged. |
|
Assembly cleaner |
*BR00.45-Z-1028-04A | ||
| 18 | Clean dust boots of brake pistons. | Assembly cleaner | *BR00.45-Z-1028-04A |
| Install | |||
| 19 | Push back brake pistons. | The dust boots of the brake pistons must be correctly folded together when pushing back. Otherwise the dust boots of the brake pistons will be damaged. |
|

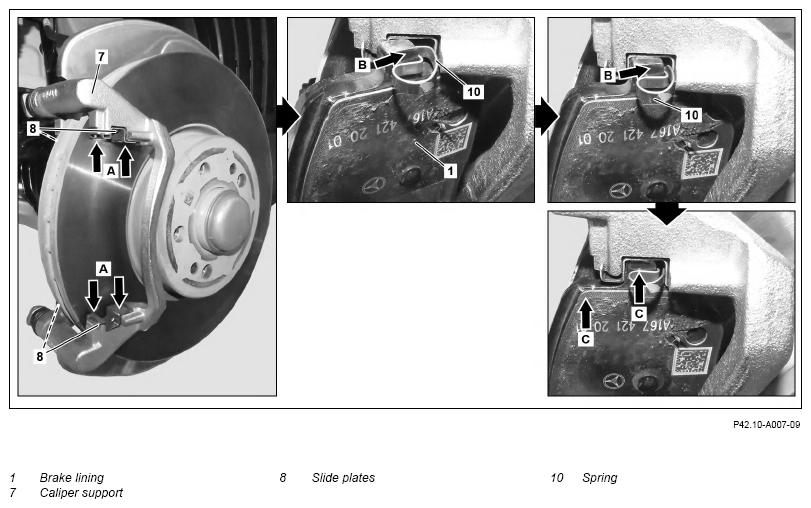

| Fig 2 | |||
| 20 | Push slide plates (8) centrally on upper and lower surfaces into slot of brake caliper support (7) (arrows A). | When replacing the brakepads (1). | |
| 21 | Install right front brake wear sensor in brakepad (1). | When replacing the brakepads (1). | |
| 22 | Install brakepads (1). | ||
| 23 | Press brakepads (1) against brake disk and swivel brake caliper (6) downward. | Ensure that dust boots on brake piston are not damaged. Otherwise, damage will occur to the brake caliper (6) or the brake system will fail. Do not damage electric line of right front brake wear sensor. Otherwise, it is not guaranteed that the right front brake wear sensor will function. |
|
| 24 | Tighten screw (5). | *BA42.10-P-1002-10L | |
| 25 | Tighten plug housing (4) with screw (3). | On the right side of the vehicle. | |
| *BA42.10-P-1004-10L | |||
| 26 | Connect electrical connector (2) of right front brake wear sensor. | ||
| 27 | Clip brake hose into holder (arrow D). | ||
| 28 | Mount front wheel and tire assemblies. | AR40.10-P-1102ME | |
| Concluding tasks | |||
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| 29 | Operate brake pedal several times until the brakepads (1) make contact with the brake disks. | ||
| 30 | Check fluid level in brake fluid expansion reservoir and correct if necessary. | ||
| AP42.10-P-4210E | |||
| If brake fluid has escaped, ↓ remove brake fluid with water. |
|||
| 31 | Install cover above brake fluid expansion reservoir. | AR83.10-P-1411ME | |
| 32 | Perform brake test on test stand. | ||
| AP42.00-P-4290BA |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA42.10-P-1002-10L | Guide pin to brake caliper support | Nm | 65 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA42.10-P-1004-10L | Bolt, brake pad contact sensor to brake caliper M6 | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
